H. Screw the front wheel into its place to the proper height position.
I. Connect the drop-off board cable to the Main Board.
J. Close the cover, as outlined in section 4.2.2.
K. Perform the 'Front wheel test' under the 'Safety tests' menu.
L. Complete the General Test as outlined in section 5.1.

4.2.4.3 Lamp Board Replacement

Required tools:
A. Remove the Power Pack from the Robomow.
B. Remove the cover, as outlined in section 4.2.1.
C. Turn over the cover and place it on a protected surface so it will not be damaged or scratched.
D. Disconnect the lamp cable from the connector on the board, as illustrated in Figure 4.2.4.3.1
below)
E. Careful not to distort them, push one of the two plastic retaining clips holding the board in its
place and remove the board.
F. Replace the damaged board with a new one.
G. Make sure the plastic retaining clips are holding the board securely in place.
H. Connect the wire to the connector.
M. Replace the cover as outlined in section 4.2.2.
N. Complete the General Test as outlined in section 5.1.
Wide flat screwdriver Procedure duration:

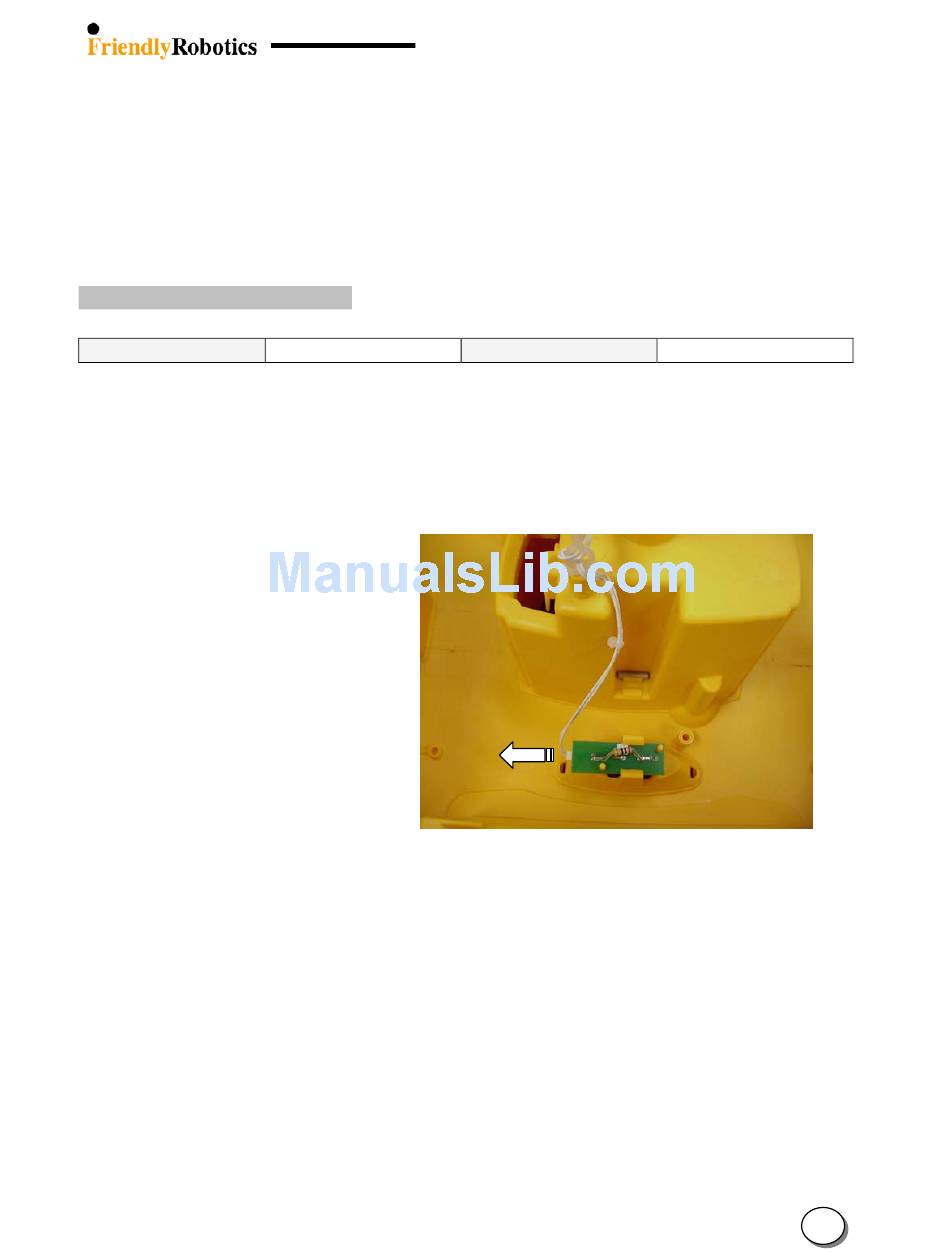

Figure
4.2.4.3.1
Disconnection of
lamp cable
5 minutes
