H. Return the drive wheels, as outlined in section 4.1.5.
I. Return the cover as outlined in section 4.2.2.
J. Perform the 'Drive motor test' outlined in section 5.4.4.
K. Complete the General Test as outlined in section 5.1.

4.2.6.3 Odometer Board replacement

Required tools: Wide flat screwdriver
External circlip pliers
Long nose pliers
A. Remove the cover, as outlined in section 4.2.1.
B. Remove the drive wheel next to the faulty odometer board that needs to be replaced, as
outlined in section 4.1.5.
C. Identify the odometer board and disconnect the odometer cable from the board, as illustrated
in Figure 4.2.6.3.1 below. Please note that there is a right odometer board and a left one, each
has a unique part number.
D. Insert the flat screwdriver into the notch on the side of the odometer board facing the frame, as
illustrated in Figure 4.2.6.3.2

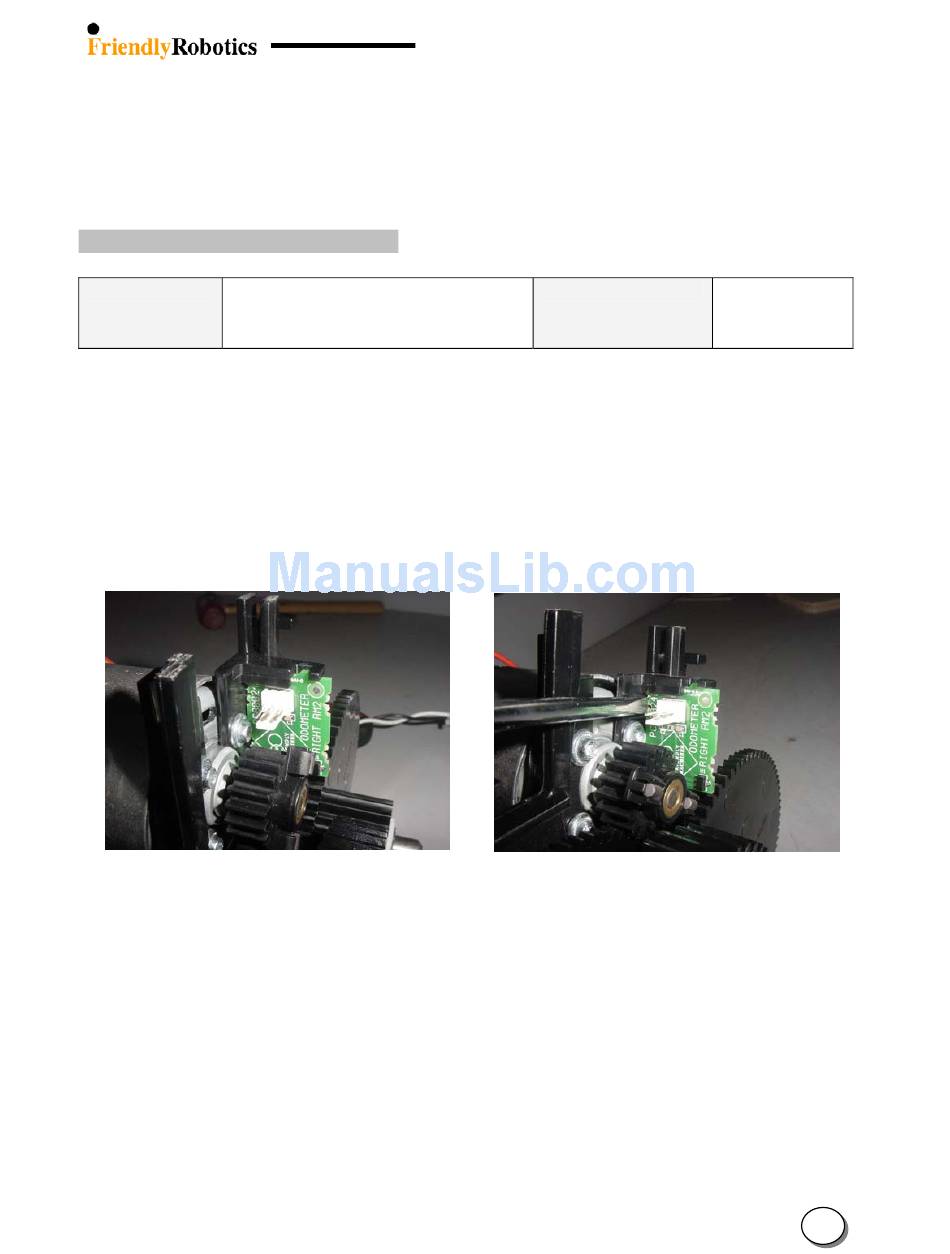

Figure 4.2.6.3.1
Right odometer board
E. Using the long nose pliers, grab the holding notch behind the board and lift slightly, just above
the locking ramp in the board. Simultaneously apply pressure with the flat screwdriver to
release the board, as illustrated in Figure 4.2.6.3.3.
F. Place the new board, in the same orientation, into the groove and press firmly so it will snap
into place, as illustrated in Figure 4.2.6.3.4.
Procedure duration: 10 minutes
Figure 4.2.6.3.2
Placement of the flat screwdriver
