4.2.9 Rear bumper replacement

Required tools: Wide and long flat screwdriver
Soap and water solution
A. Remove the Power Pack from the Robomow.
B. Remove the cover, as outlined in section 4.2.1 and expose the rear bumper, as illustrated in
Figure 4.2.9.1 below.
C. Disconnect both left and right bumper cables (white or purple) that are coming out of the rear
bumper.
D. Peel off the "ears" that are touching the slider seal on both sides of the Robomow and expose
the top edge of the gray plastic base in those areas.
E. Peel off the top edge of the bumper from the gray plastic base all the way around the bumper,
as illustrated in Figure 4.2.9.2 below.

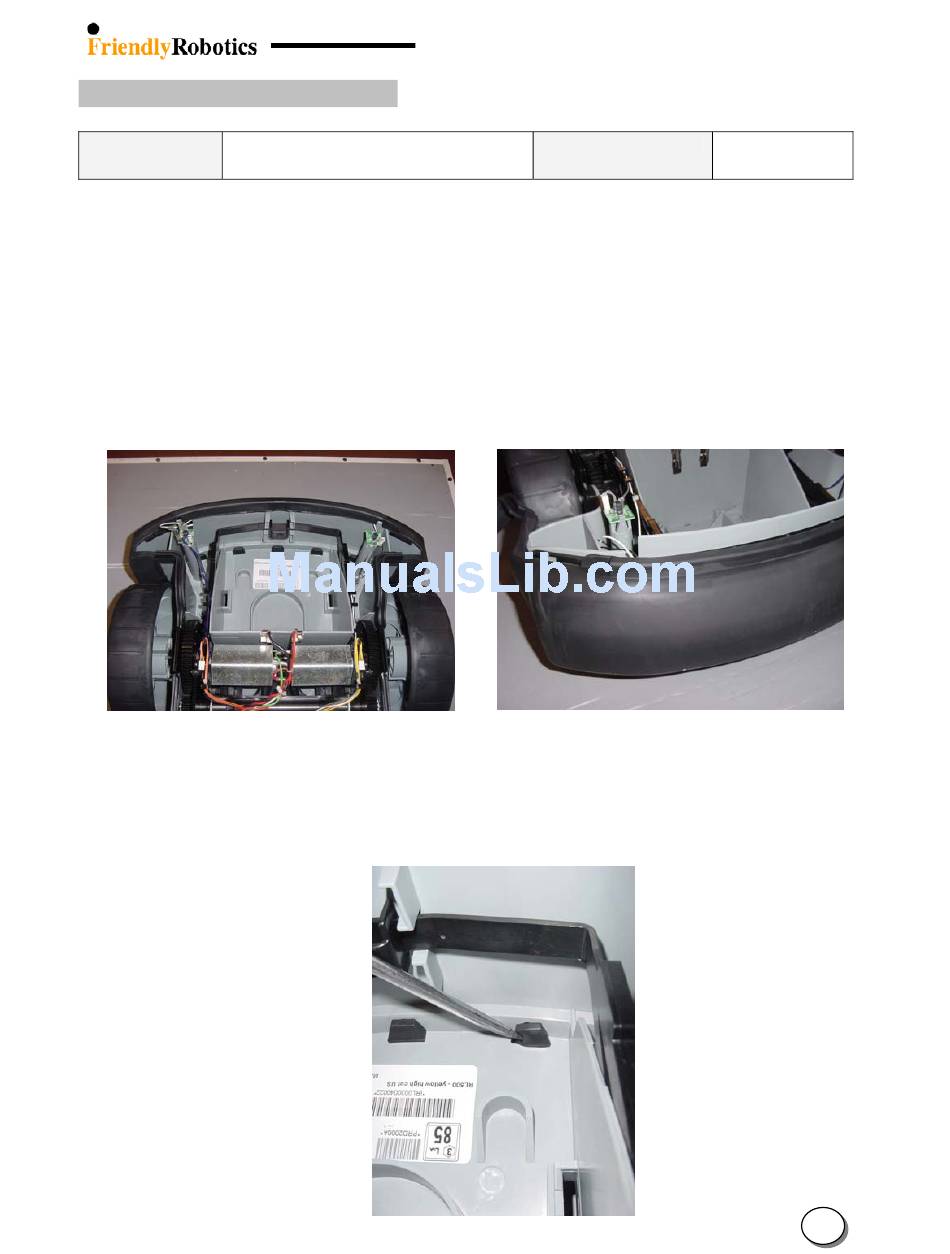

Figure 4.2.9.1
Rear bumper – assembled view
F. In Figure 4.2.9.1 identify the protrusions that are holding the bottom edge of the bumper.
Using the wide flat screwdriver, push down one side of the protrusion down, as illustrated in
Figure 4.2.9.3.
Figure 4.2.9.3
Pushing the protrusion –
st
1 step
Procedure duration: 30 minutes
Figure 4.2.9.2
Peeled off bumper's top edge
