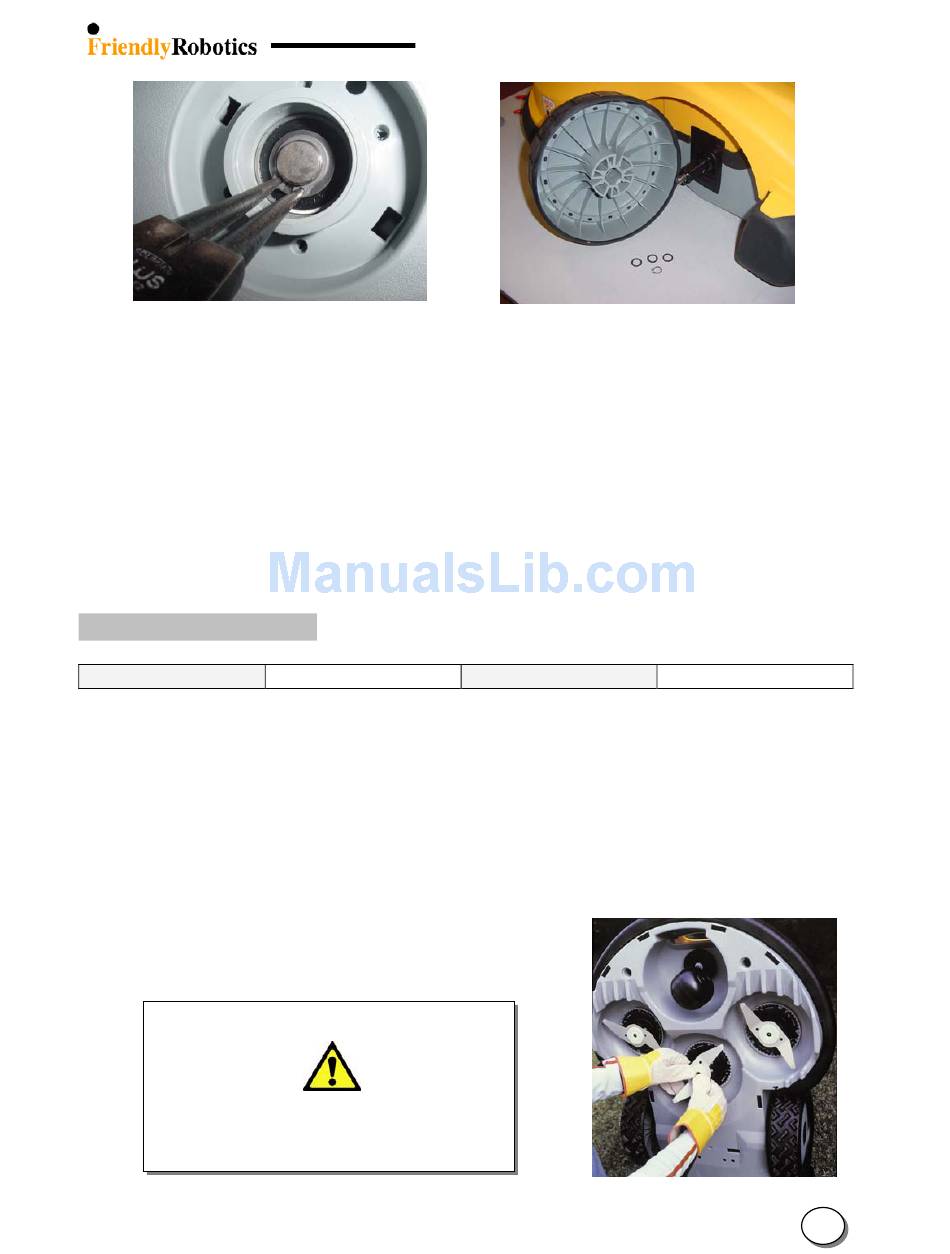

Figure 4.1.5.3
Drive wheel circlip removal
I. Replace the damaged wheel with a new one (it is recommended to replace both wheels in
order to ensure the unit is balanced during the operation).
J. Push the new drive wheel over the shaft and the spline until it rests against the support in the
spline.
K. Return the wheel cup.
L. Place the Robomow on the ground.
M. Complete the General Test as outlined in section 5.1.

4.1.6 Blades replacement

Required tools:
NOTE: Blades are not under warranty
A. Remove the Power Pack from the Robomow.
B. Prop the Robomow on a stand or turn the Robomow on its back, placing it on a soft surface to
protect it from scratches.
C. To remove blades, squeeze locking tabs on each side of the blade retainer, and then pull blade
assembly off, away from mower. When reinstalling the blade, line up the mating splines and
push until a firm click is heard, indicating a proper seating of the blade onto the shaft.
D. It is recommended to change all 3 blades at the same time.
NOTE: Blades sharpening is not recommended, as
a good balance cannot be achieved.
Important Safety Information!!!
REMOVE THE POWER PACK.
Always wear thick protective gloves when
handling or cleaning around the blades
Protective gloves
Figure 4.1.5.4
Disassembled drive wheel
Procedure duration: 5 minutes
