4.2 Robomow Internal procedures

NOTE: The procedures duration appears at the top of each procedure and at the table in section
6.1.3 are the net time required to perform the specific replacement. When calculating the total
repair time, you should add 20 minutes to cover the time of the removing and returning the cover.

4.2.1 Removing the cover

Required tools:
A. Remove the Power Pack from the Robomow.
B. Remove the fuse cover in the manual controller cavity (Figure 4.1.1.2).
C. Remove the Manual Controller and disconnect its cable (See 4.1.3).
D. Disconnect the charging cable from the connector board and remove the M. C. holder.
E. Disconnect the lamp cable from the connector board.
F. Remove the 5A and 1A fuses.
Charging cable
G. Turn the Robomow on its back, placing it on a soft surface to protect it from scratches.
H. Identify the ten lockers that lock the cover to the base, they are distributed around the
circumference of the Robomow.
I. Using a wide flat screwdriver pull the locker out of its cavity, as illustrated in Figure 4.2.1.2
below.
Wide flat screwdriver Procedure duration:
Manual Controller
5A Fuse 1A
10 minutes
Lamp cable

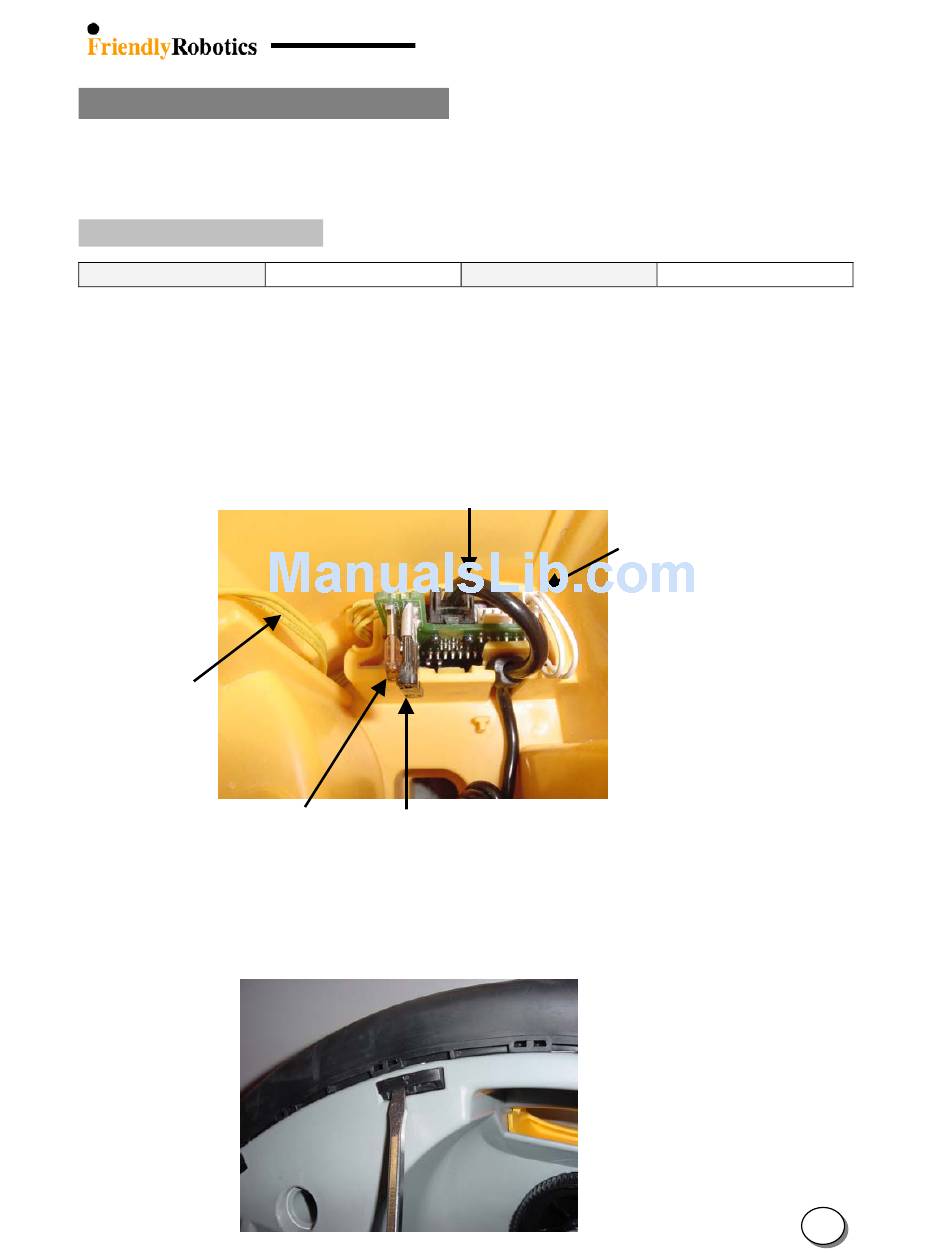

Figure 4.2.1.1
Manual Controller
cavity
Figure 4.2.1.2
Removing locker
