C. Push both battery contacts to sit firmly in their place on the base, ensuring correct polarity –
red lead (+) on the left side (See Figure 4.2.2.2)
D. Take the cover and place it gently over the base. Make sure the lamp cable is inserted into the
manual controller cavity.
E. Confirm the bumper ears sit properly on the base, as illustrated in Figure 4.2.2.3.

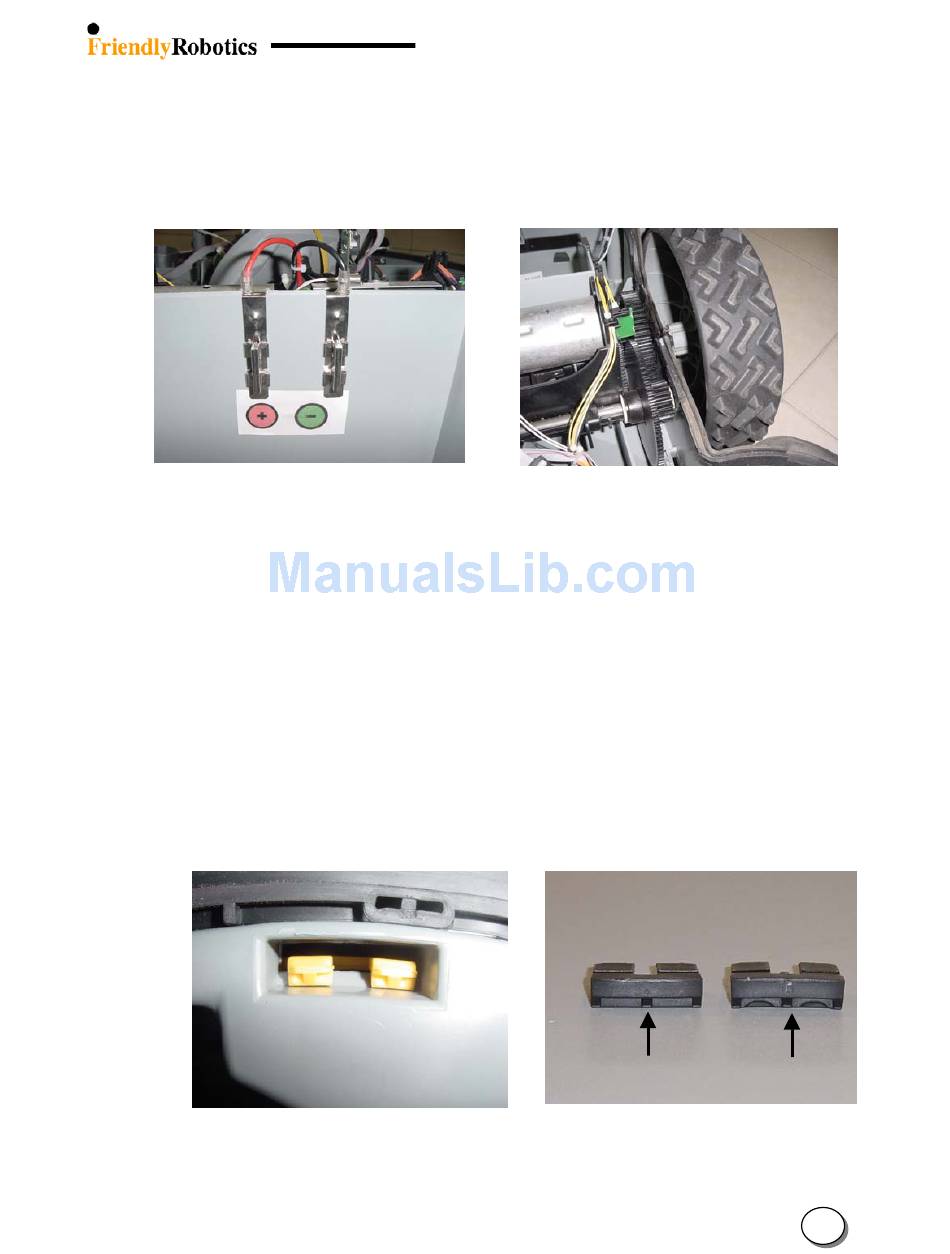

Figure 4.2.2.2
Battery contacts polarity
Align the cover relative to the base: the battery cavity in the cover should be inside the battery
cavity in the base and all extended cover 'legs' should sit against their counterpart holes on the
base. When replacing the cover, beware not to damage the connector board, by observing through
the Manual Controller cavity.
F. Push the cover into place until all ten cover 'legs' are positioned as illustrated in Figure
4.2.2.4.
G. Turn the Robomow on its back.
H. Verify the bumper is in its place all around the Robomow and in particular around the drive
wheels.
I.
Collect the ten lockers. As illustrated in Figure 4.2.2.5 below, there are two types of lockers:
four flat and six curved. The curved lockers have curved notches. The flat lockers fit in the
holes around the battery cavity while the four curved lockers fit in the holes close the front
bumper area.
Proper position a cover 'leg' inside its hole
Figure 4.2.2.4
Figure 4.2.2.3
Bumper ears on the base
Flat
Figure 4.2.2.5
Curved and flat lockers
Curved
4
13
