Friendly Robotics robomower RL350 Service Manual page 143

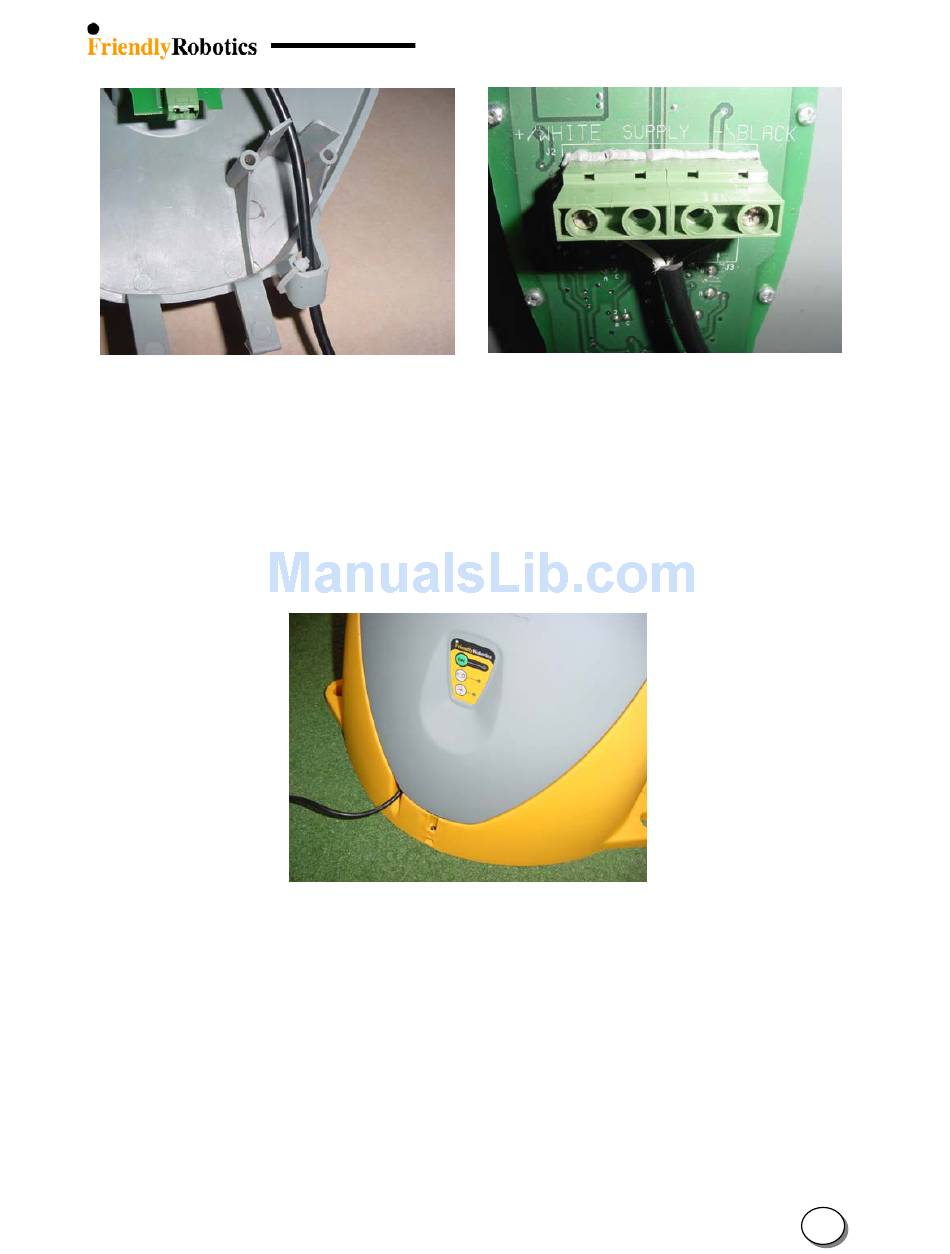

Figure 4.4.2.3
The track of the Power Supply cable
G. Confirm proper layout of the Power Supply cable from the cover, as illustrated in Figure
4.4.2.5 below.
H. Connect the Power supply to the wall socket and switch on the Charging Station board to
check the functionality of the Charging Station.
Figure 4.4.2.5
The track of the Power Supply cable
Figure 4.4.2.4
Proper polarity of Power Supply
connection
