G. Connect the contacts cables (Red and Green) back to the taps as illustrated in Figure 4.4.1.1
above (confirm the Red is connected to the RH side and the Green to the LH side).
H. Connect the Power supply to the wall socket and switch on the Charging Station board to
check the functionality of the Charging Station.
4.4.2 Power Supply replacement
Required tools: Philips screwdriver
A. Remove the Robomow from the Charging Station.
B. Disconnect the Power Supply from the wall socket.
C. Open the two screws on the Charging Station cover, as illustrated in Figure 4.4.2.1 to remove
the Charging Station Cover.
D. Open the two screws on the Docking Board to release the Power Supply cable, as illustrated in
Figure 4.4.2.2 below.

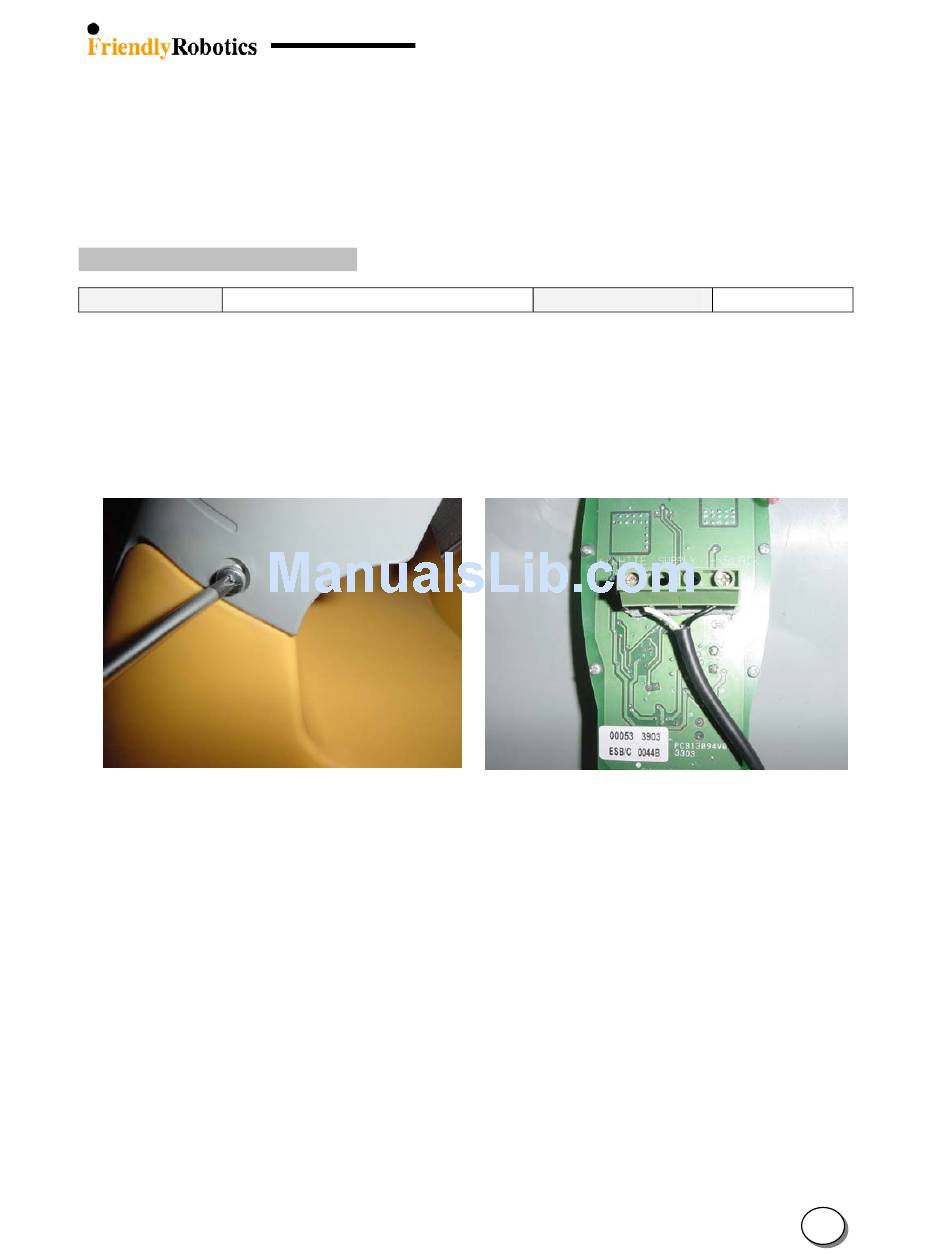

Figure 4.4.2.1
Opening the screws to remove the cover
E. Replace the faulty Power Supply with a new one. Lay the Power Supply cable in a safe way to
prevent injury. Pull the cable through the aperture and secure it, as illustrated in Figure 4.4.2.3.
F. Connect the cable ends to the docking board connector, as illustrated in Figure 4.4.3.4 –
confirm the black cable is connected to the RH side and the white cable to the LH side (the
colors are printed on the board itself).
Procedure duration: 10 minutes
Figure 4.4.2.2
Power Supply cable screws
