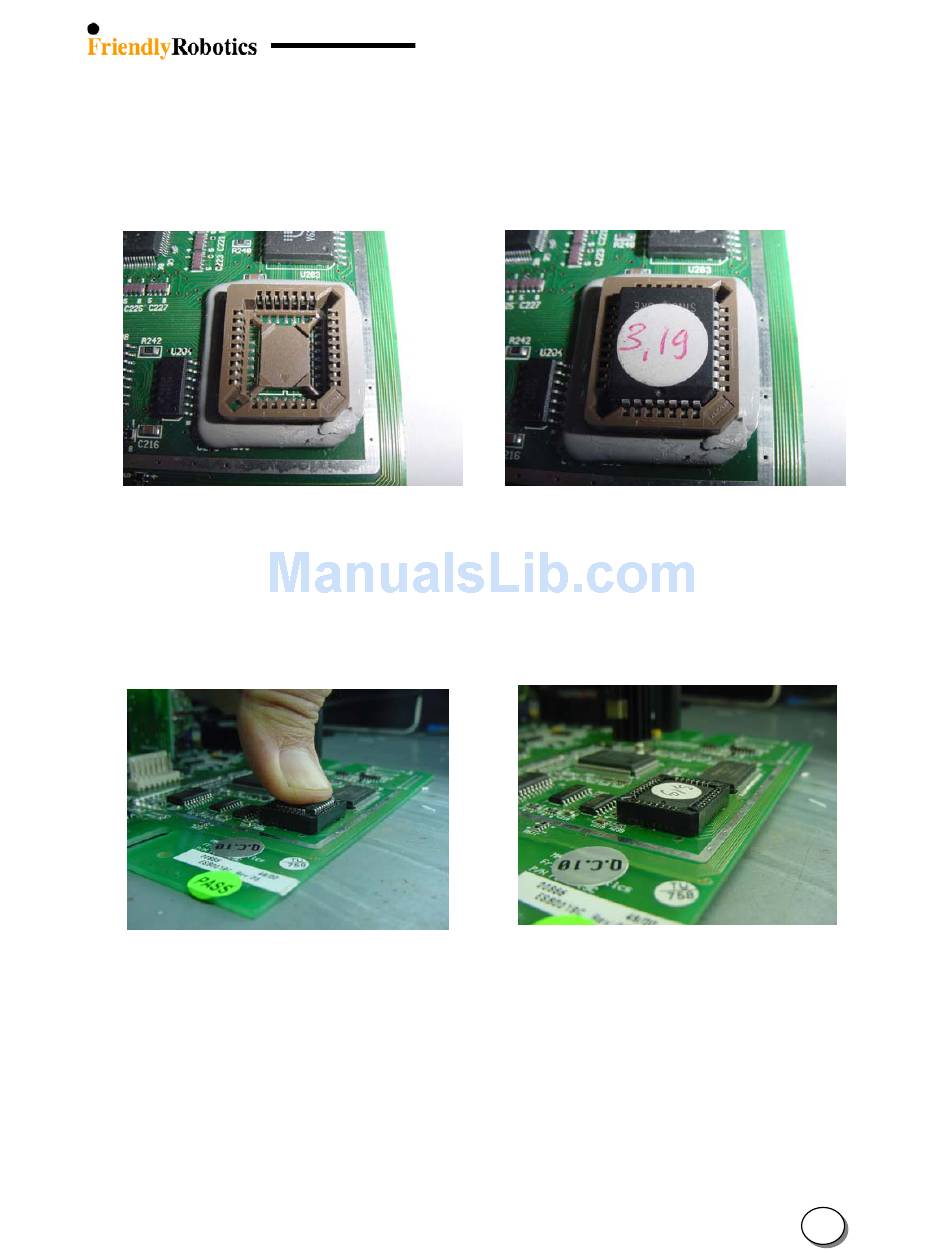

g. Identify the flat inside corner and marking triangle next to it inside the socket, as illustrated
in Figure 4.2.3.5.
h. Carefully and methodically place the flash over the socket cavity making sure the flat
corners and marking dot/triangle are one above the other. Verify that every lead in the flash
is sitting against a lead in the socket, as illustrated in Figure 4.2.3.6.
Figure 4.2.3.5
Orientation markings on the socket
i. Place your thump on the flash and press the flash so that it will be pushed horizontally and
uniformly into the socket cavity, as illustrated in Figure 4.2.3.7.
j. Upon proper insertion, the flash should be inside the socket cavity, as illustrated in Figure
4.2.3.8.
Figure 4.2.3.7
Pressing the flash into the socket
G. Place the four rubber holders on the new main board and place it in its seat in the base.
H. Connect all the cables, as illustrated in Figure 4.2.3.9 on next page.
I. Perform basic test prior to closing the unit. Connect the Manual Controller and insert both
fuses on the connector board. Insert the Power Pack and drive the unit around. Remove the
Power Pack, the Manual Controller and both fuses.
Figure 4.2.3.6
Placement of the flash over the socket
Figure 4.2.3.8
A flash properly inserted into
a socket cavity
