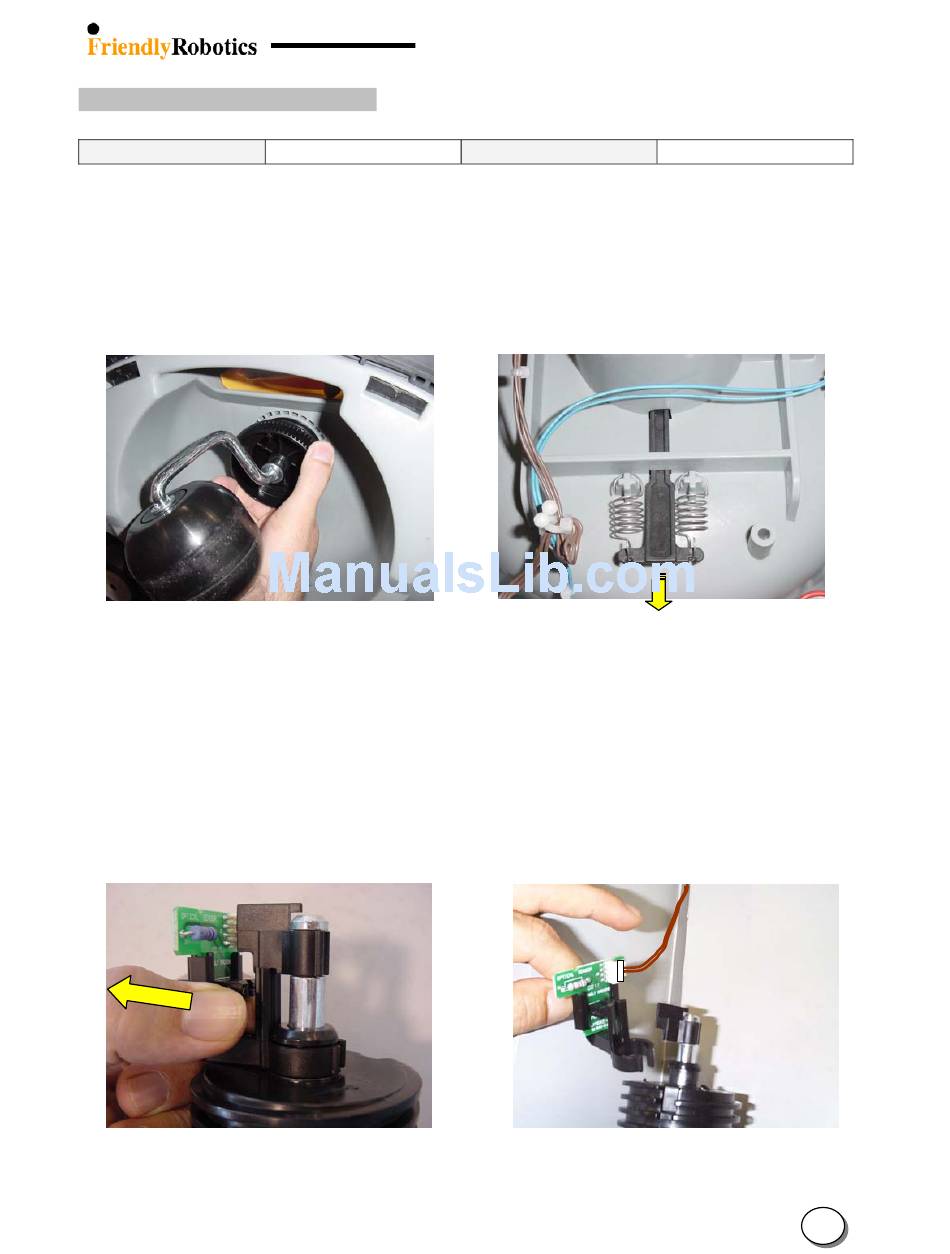

4.2.4.2 Drop-off Board Replacement
Required tools:
A. Remove the Power Pack from the Robomow.
B. Remove the cover, as outlined in section 4.2.1.
C. Unscrew the Front Wheel all the way until the highest mowing position, ass illustrated in
Figure 4.2.4.2.1.
D. Push the Front Wheel stopper/spring backwards (see Figure 4.2.4.2.2 below) to enable the
complete removal of the front wheel.
Figure 4.2.4.2.1
Unscrewing the front wheel
E. Remove the Holder of the Drop-off board by pulling hard on the holder, as illustrated in
Figure 4.2.4.2.3 below until the holder is removed out of its place (Figure 4.2.4.2.4)
F. Replace the drop-off board with the holder and cable (one spare part - SPP0005B).
G. Replace the drop-off board holder. Perform this in two steps, first insert the holder onto the
metal shaft while making sure the flag is placed correctly between the two parts of the
optical sensor; than press the holder firmly down until it will snap onto the plastic bolt.
Figure 4.2.4.2.3
Removal of the drop-off board holder
Wide flat screwdriver Procedure duration: 15 minutes
Figure 4.2.4.2.2
Retracting the stopper for
front wheel removal
Figure 4.2.4.2.4
Drop-off holder is out of its place
