Sensor (Output Expander Deflector Gate Hp) Removal - Lexmark T652 Service Manual

3

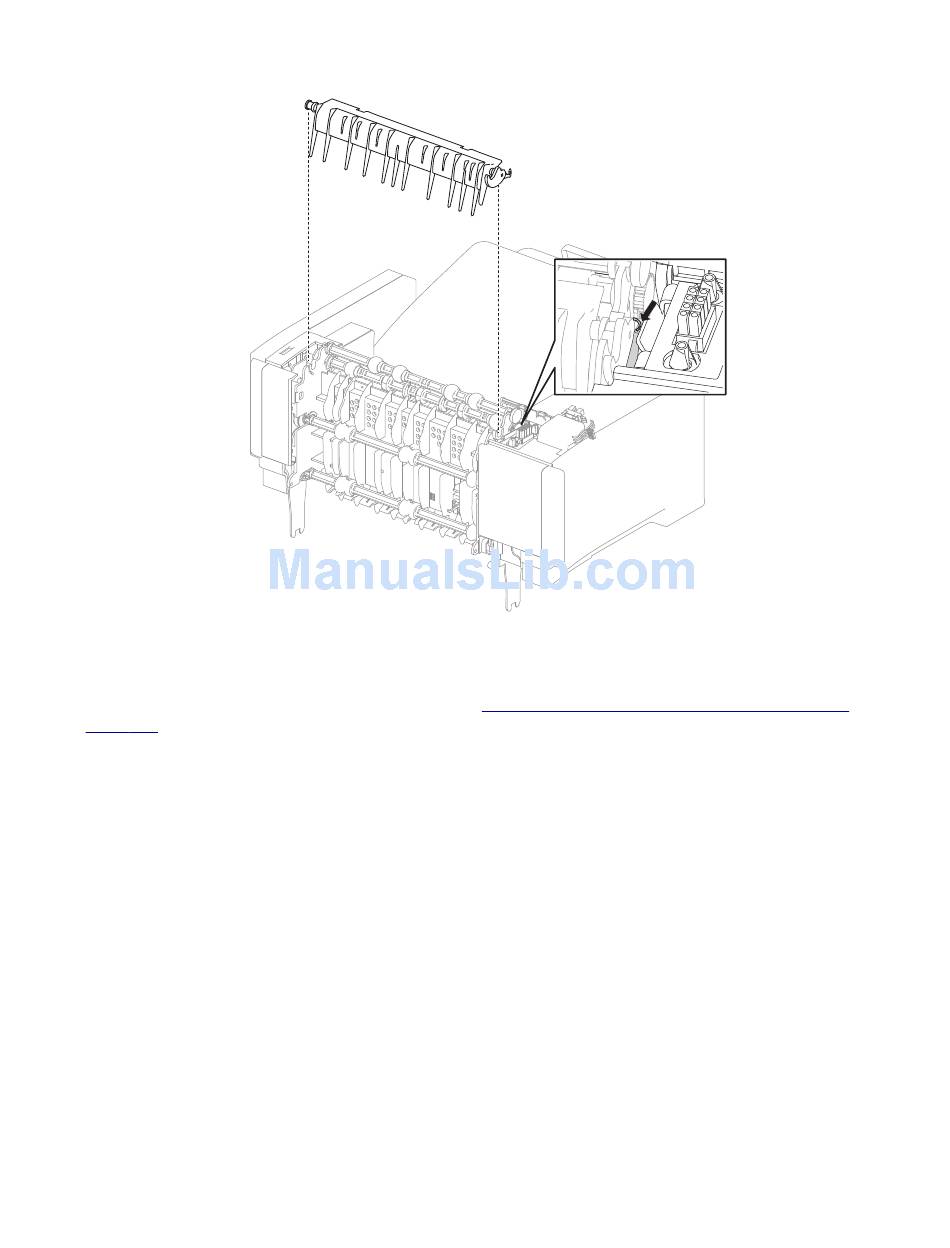

Pull the deflector gate out of its hinges and remove.
Sensor (output expander deflector gate HP) removal
1
Remove the output expander left inner cover. Go to
page 421.
2
Remove the four screws securing the left frame assembly to the option.
3
Pull the left frame assembly out far enough to gain access to the sensor (deflector gate HP).
4
Release the tabs securing the sensor (deflector gate HP) and remove.
"Output expander left inner cover removal" on
