550-Sheet Tray Bellcrank Recoil Spring Removal; 550-Sheet Tray Frame Assembly Removal - Lexmark T652 Service Manual

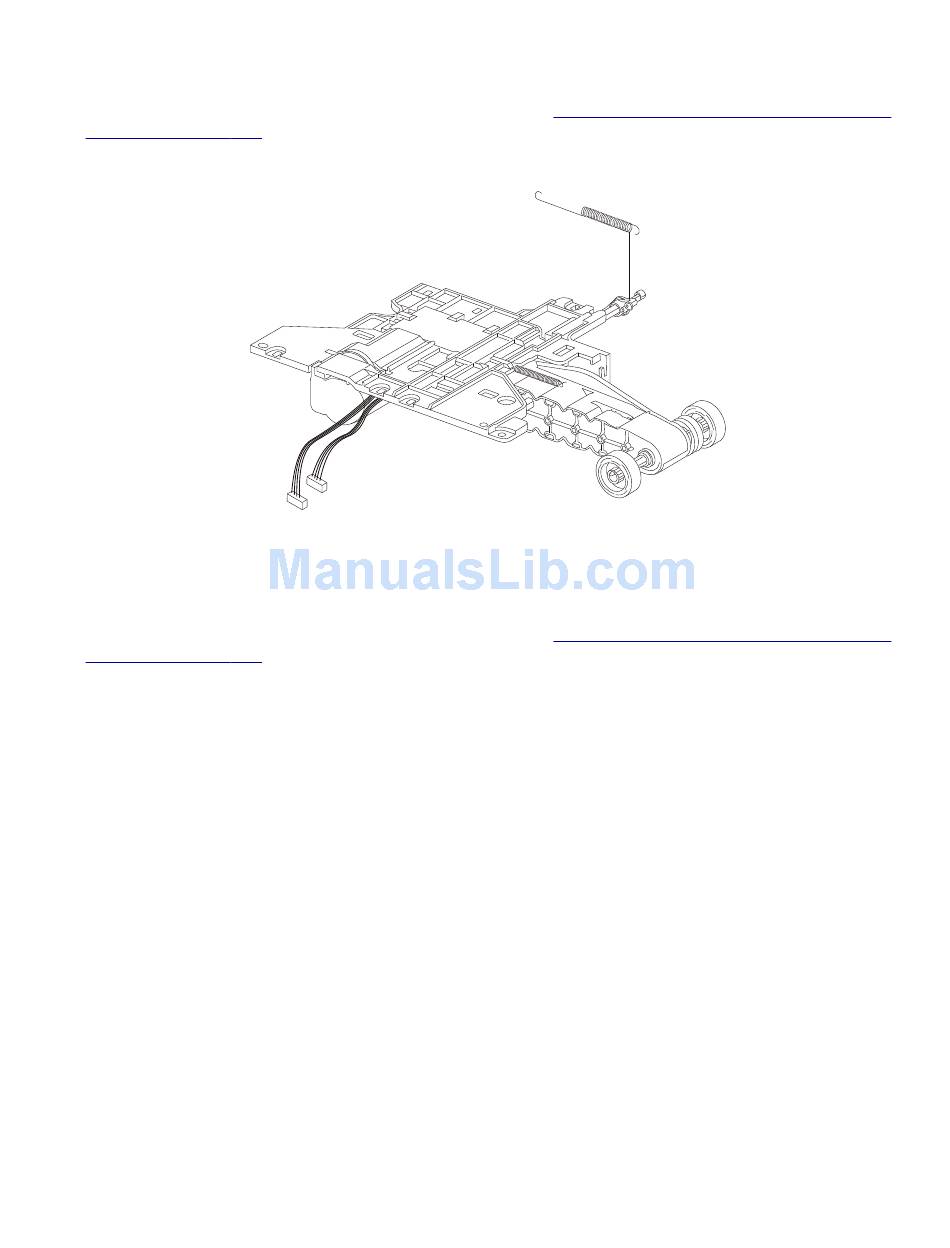

550-sheet tray bellcrank recoil spring removal

1
Remove the 550-sheet tray pick arm bracket assembly. Go to
removal" on page 364.
2
Remove the 550-sheet tray bellcrank recoil spring from the 550-sheet tray pick arm bracket assembly.

550-sheet tray frame assembly removal

Note: The 550-sheet tray frame assembly is not a FRU.
1
Remove the 550-sheet tray pick arm bracket assembly. Go to
removal" on page 364.
2
Release the hooks securing the sensor (pass through) to the drawer.
3
Remove the sensor (pass through) from the drawer.
"550-sheet tray pick arm bracket assembly
"550-sheet tray pick arm bracket assembly
Repair information
