5

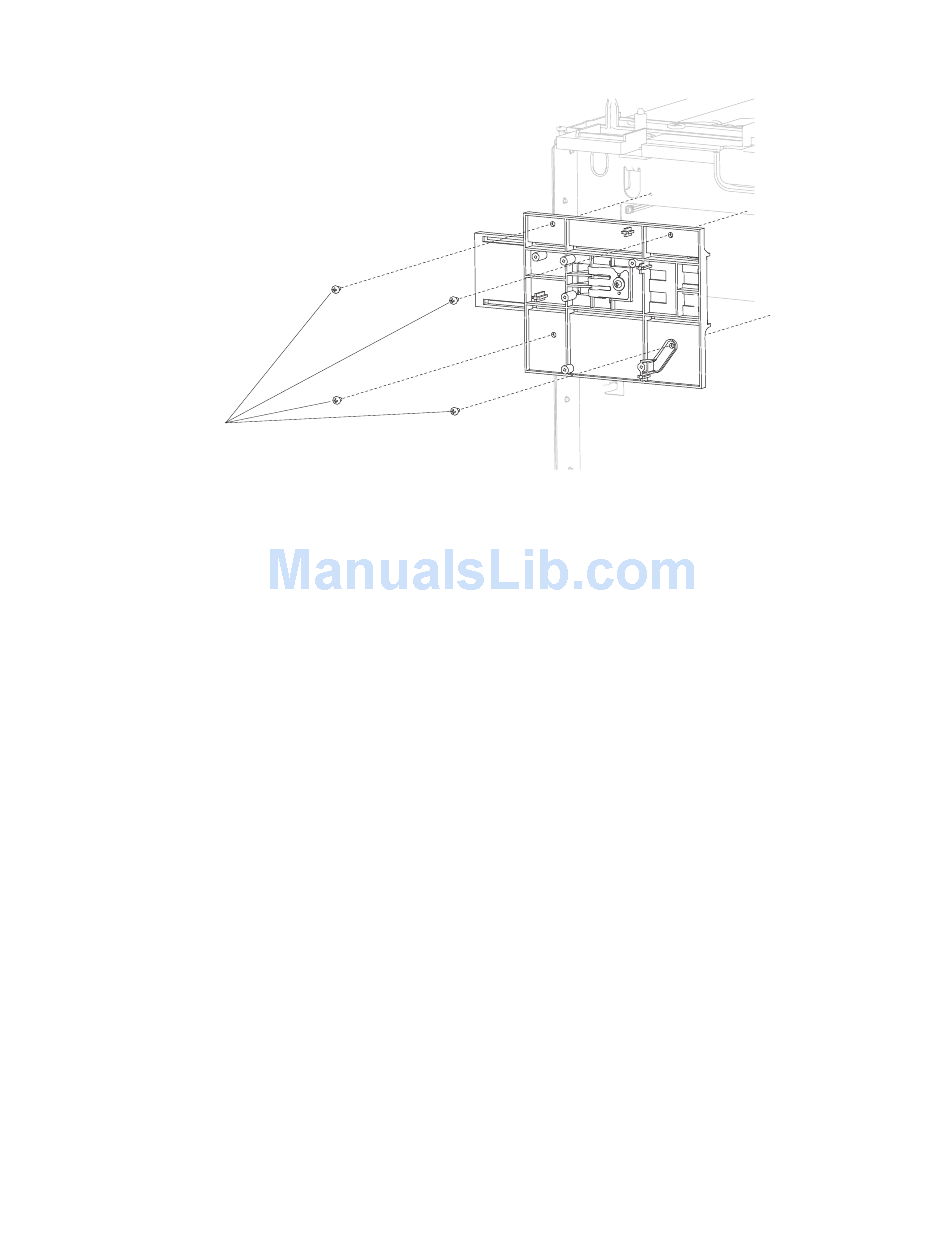

Remove the four screws (D) securing the card mount option with the media size actuator to the frame.
D
6
Remove the card mount option with the media size actuator.
Installation notes:
a
Re-install the card mount option with the media size actuator to the frame by inserting the leftmost part
of it through the hole, and then securing it with the four screws.
b
Re-install the actuator switch with the spring to the card mount option through the drawer opening.
c
Re-install the cam size sensing plate with the spring to the card mount option through the access hole
in the rear side.
d
Reattach the two springs to the frame.
Repair information
