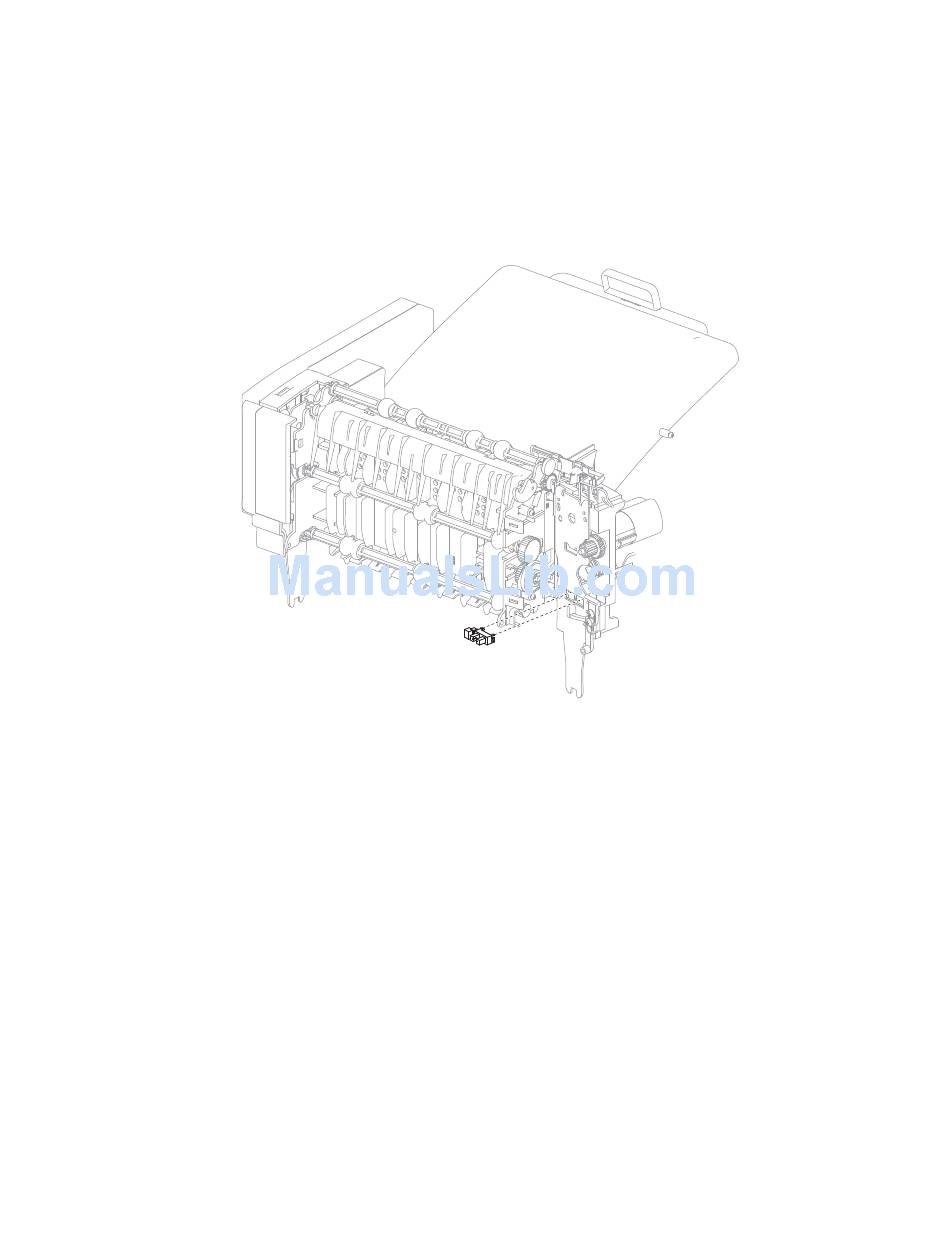

Output expander sensor (deflector gate HP) removal

"Output expander left inner cover removal" on
1. Remove the output expander left inner cover. Go to
page 4-172.
2. Remove the four screws securing the left frame assembly to the option.
3. Pull the left frame assembly out far enough to gain access to the sensor (deflector gate HP).
4. Release the tabs securing the sensor (deflector gate HP) and remove.
5. Disconnect the harness to the sensor and remove.
