Installation
5.2

Installing the optional boards

WARNING
Slots
NOTE
5-4
The boards may only be replaced by qualified personnel.
It is not permitted to withdraw or insert the boards under voltage.
A maximum of six slots are available in the electronics box of the unit
for installing optional boards. The slots are designated with the letters A
to G. Slot B is not provided in the electronics box. It is used in units of
the Compact PLUS type of construction.
If you wish to use slots D to G, you will additionally require the
following:
♦ Bus expansion LBA (Local Bus Adapter), which is used for mounting
the CU board and up to two adaption boards, and
♦ An adaption board (ADB - Adaption Board) on which up to two
optional boards can be mounted.
The slots are situated at the following positions:
♦ Slot A
CU board
♦ Slot C
CU board
♦ Slot D
Adaption board at mounting position 2
♦ Slot E
Adaption board at mounting position 2
♦ Slot F
Adaption board at mounting position 3
♦ Slot G
Adaption board at mounting position 3

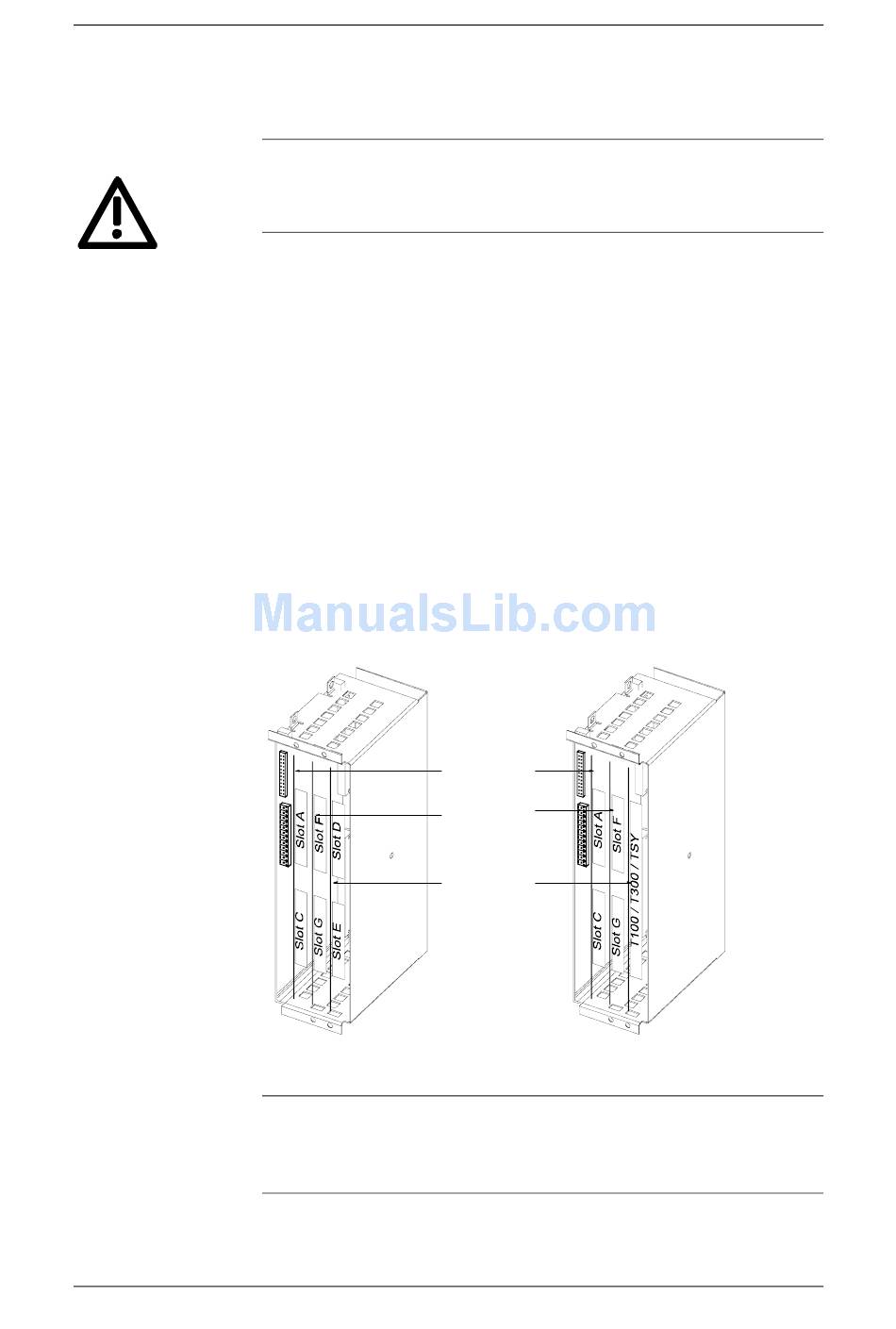

Fig. 5-4 Position of the slots for Compact and chassis type units
Mounting position 2 can be used for technology boards (T100, T300,
TSY).
Mounting positions 2 and 3 can also be used for communication boards
SCB1 and SCB2.
Mounting
position 1
Mounting
position 3
Mounting
position 2
6SE7087-2JD60
Operating Instructions
05.2006
Position: top
Position: bottom
Position: top
Position: bottom
Position: top
Position: bottom
