Parameter input via the PMU

Raise key
Reversing key
ON key
Toggle key
OFF key
Lower key
8-18
The PMU parameterizing unit enables parameterization, operator
control and visualization of the converters and inverters directly on the
unit itself. It is an integral part of the basic units. It has a four-digit
seven-segment display and several keys.
The PMU is used with preference for parameterizing simple
applications requiring a small number of set parameters, and for quick
parameterization.
Seven-segment display for:
Drive statuses
Alarms and
faults
Parameter numbers
Parameter indices
X300
Parameter values

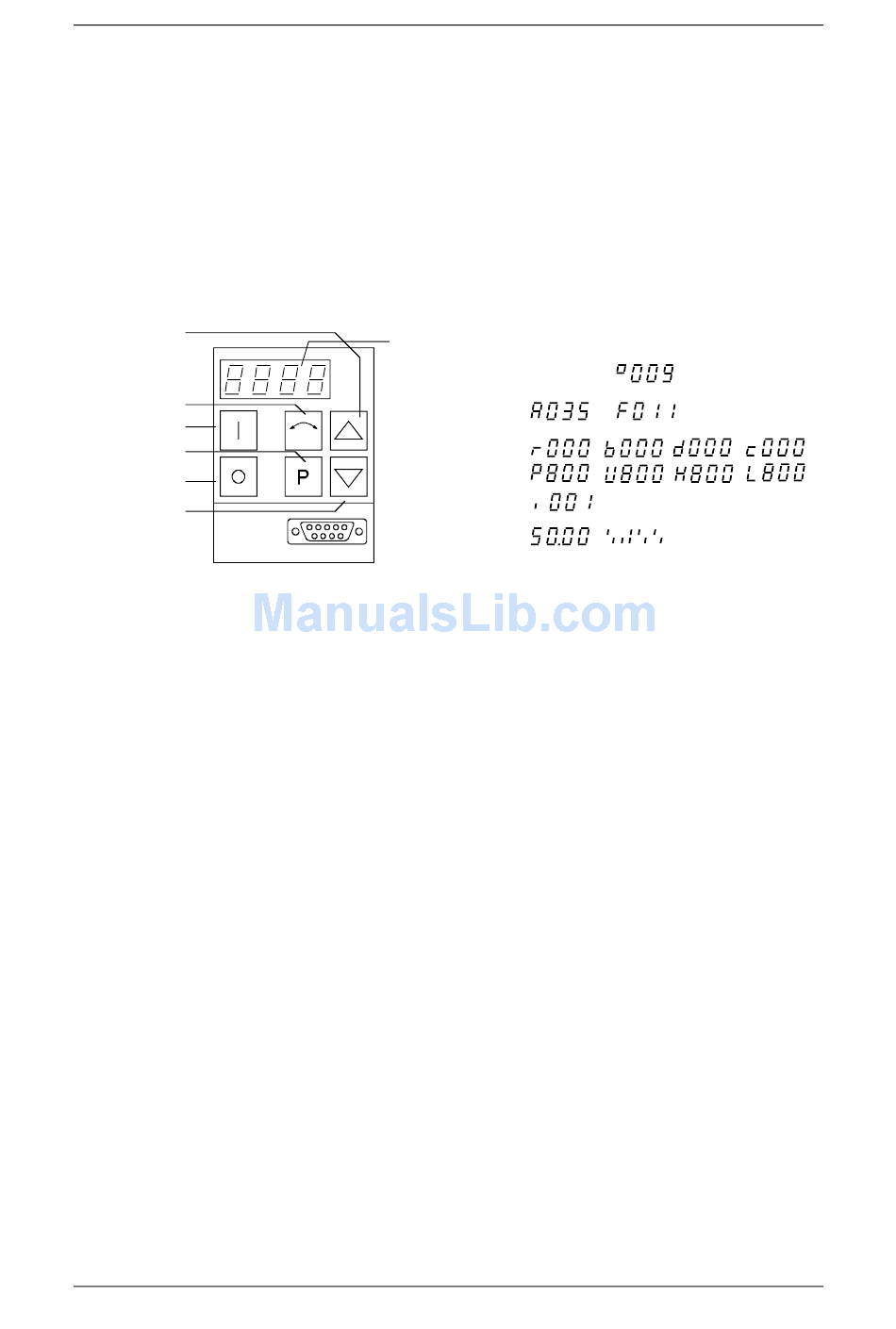

Fig. 8-14 PMU parameterizing unit
6SE7087-2JD60
