NOTE
Siemens AG 6SE7087-2JD60
SIMOVERT MASTERDRIVES
Aux. contactor,
external DC24 V-
supply X9
DC link
connection X3
Mains connection X1
Fan fuses
Mount.pos. 1 (CUVC)
Optional board
in slot A
PMU connection X108
X101
X102
X103
Optional board
in slot C
Motor connection X2
Adjustment of
fan voltage
Shield connections for control
cables and tachometer cables
Cable connection
adapter for EMC
(Option)

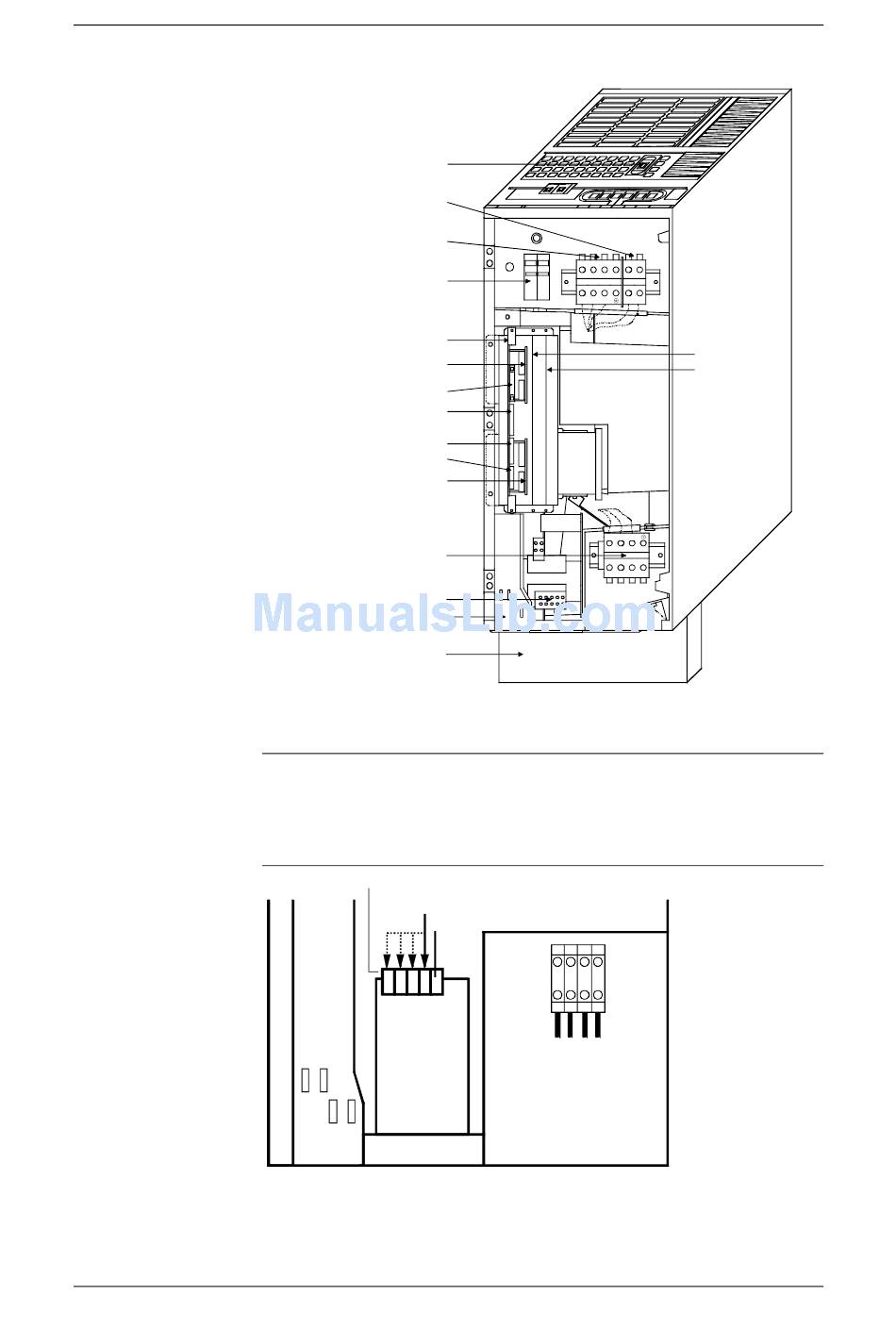

Fig. 7-2 Connection overview for type D
A 230 V fan is installed in drive converters, type of construction D. The
fan is supplied via the fan transformer. To supply the fan with 230 V,
the primary side of the fan transformer must be adjusted to the existing
line voltage via the plug connector (Connection 2). (For supply voltage
range, see terminal).
Transformer terminals
Connection 2
0 V
Fan-
transformer
Fig. 7-3 Transformer location (only for converters, type of construction D)
Operating Instructions
U1 V1 W1 PE1
-F 102
-F101
L1 L2 L3
Connection 1
X2
Connecting-up
C D
L+ L-
Mount. pos. 3
Mount. pos. 2
T1 T2 T3
U2 V2 W2 PE2
