Connecting-up

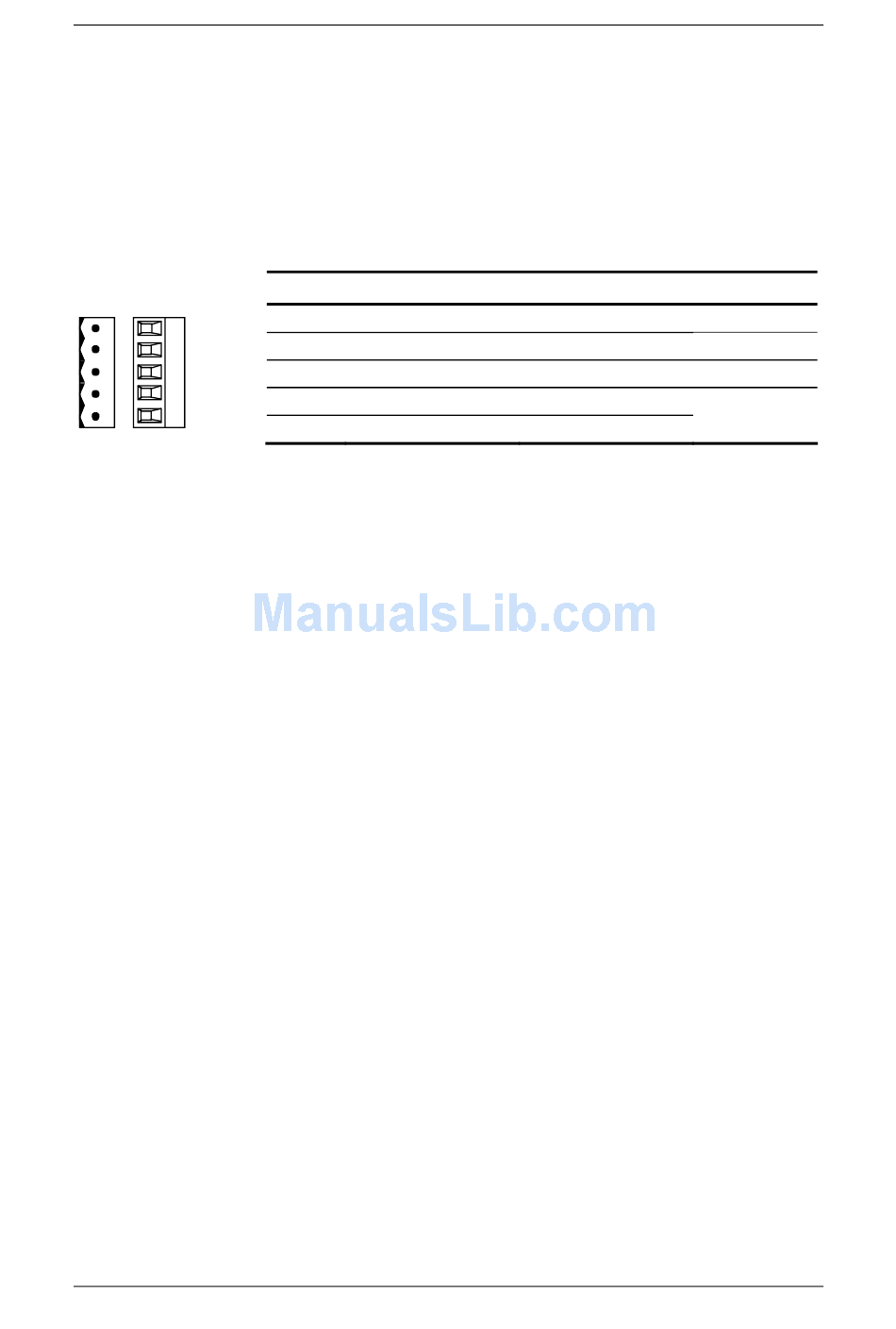

7.1.2 Terminal strip X9 (only for units with a rated input voltage of
3-ph. AC 200 - 230 V)
X9 - external
DC 24 V supply,
main contactor
control
1
2
3
4
5
7-8
The 5-pole terminal strip is used for connecting up a 24 V voltage
supply and a main or bypass contactor.
The voltage supply is required if the inverter is connected up via a main
or bypass contactor.
The connections for the contactor control are floating.
Terminal Designation
1 +24 V (in)
2 0 V
3 n.c.
4 Main contactor control
5 Main contactor control
Connectable cross-section: 2.5 mm² (AWG 12)
Table 7-4 Connection of external aux. voltage supply DC24 V and main contactor
control (only for units for voltage supply 3-phase AC 200 V to 230 V)
Description
24 V voltage supply
Reference potential
Not connected
Main contactor control
Main contactor control
6SE7087-2JD60
Operating Instructions SIMOVERT MASTERDRIVES
05.2006
Range
DC24 V ≥ 2.5 A
0 V
1 kVA
AC 230 V
