Installation
Mounting
5-2
Cooling air

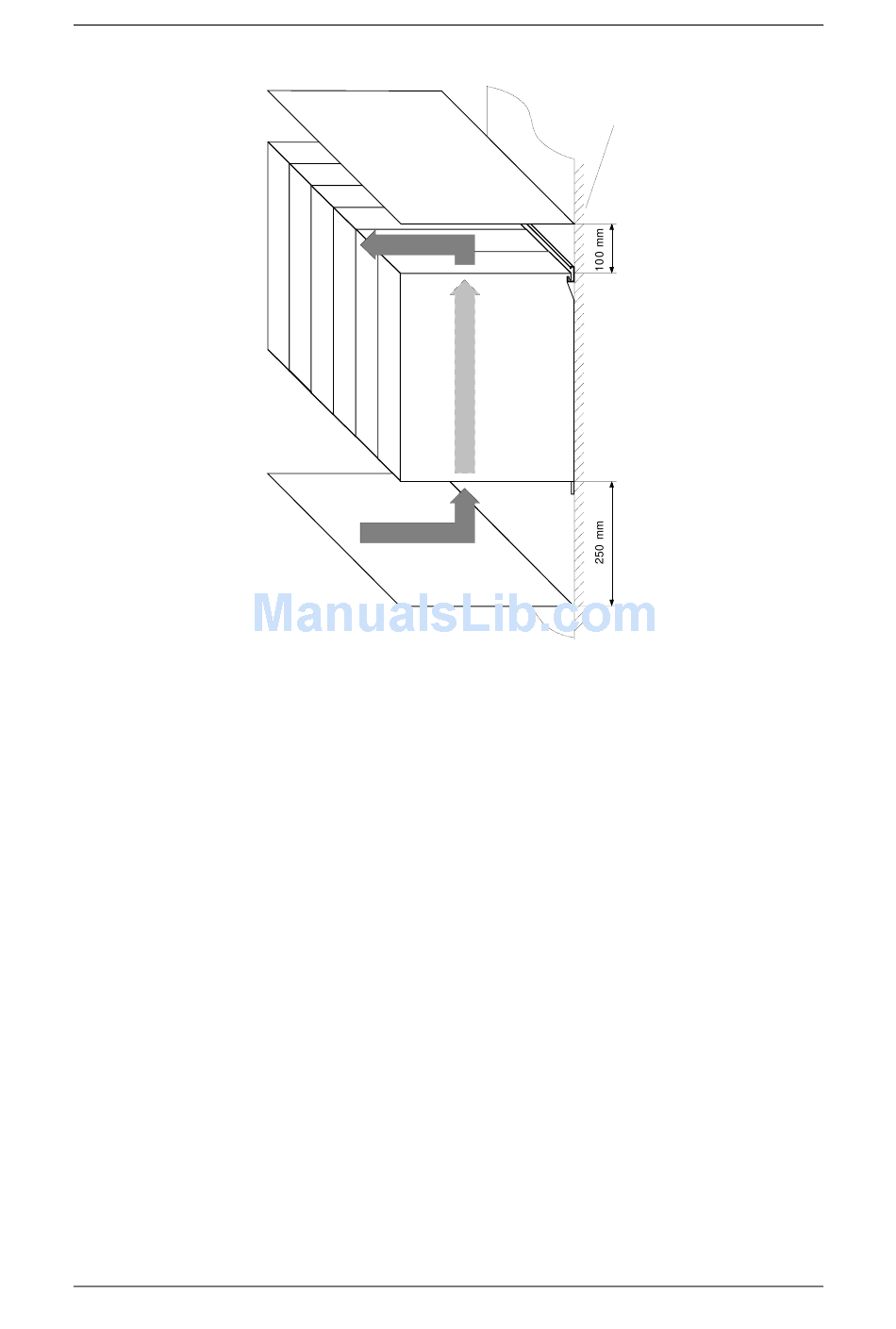

Fig. 5-1
Minimum clearances for cooling
The unit is mounted directly to a mounting surface, for which you
require the following:
♦ G-type mounting rail according to EN50035 with screws for fixing at
the top
♦ One M6 screw for types A to C, two M6 screws for type D, for fixing
at the bottom
♦ Dimension drawing for types A, B and for types C, D.
Mounting
surface
6SE7087-2JD60
Operating Instructions
SIMOVERT MASTERDRIVES
05.2006
Siemens AG
