Item No.
U039

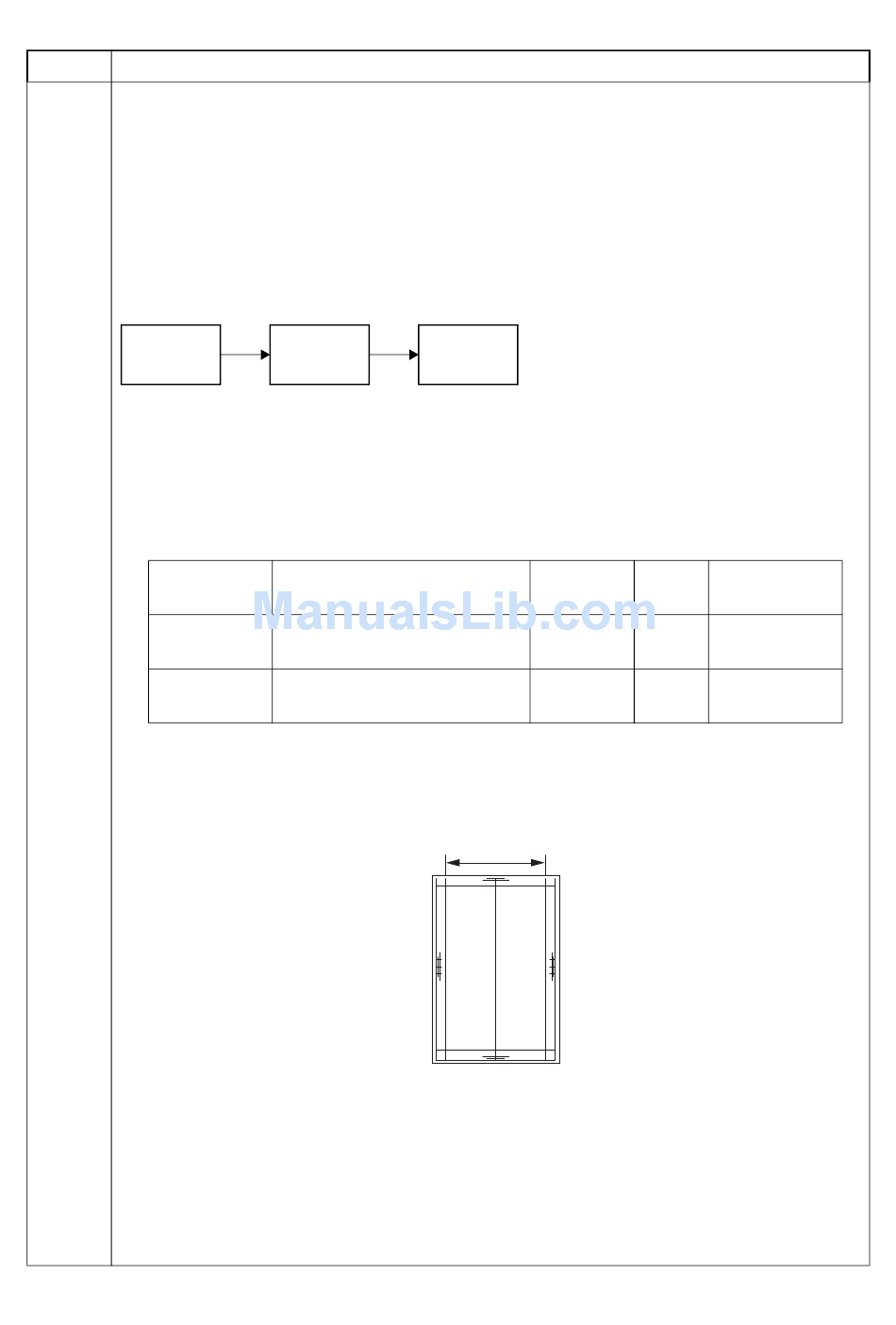

Adjusting the magnification

Description
Adjusts the magnification of the printing.
Purpose
Make the adjustment if the magnification in the main scanning direction is incorrect.
Make the adjustment if the magnification in the auxiliary scanning direction is incorrect.
Caution
Adjust the magnification of the scanner in the following order.
U039
Method
1. Press the start key.
2. Press the system menu key.
3. Press the start key to output a test pattern.
4. Press the system menu key.
5. Select the item to be adjusted.
Display
Horizon
Vertical
Adjustment: [Horizon]
1. Change the setting value using the +/- keys or numeric keys.
Increasing the setting makes the image longer, and decreasing it makes the image shorter.
2. Press the start key. The value is set.
Description
U065 U070
(P.1-3-51) (P.1-3-56)
Description
Magnification in the main
scanning direction
Magnification in the auxiliary
scanning direction
250 ± 1.0 mm
Figure 1-3-6
1-3-39
Setting Initial
range setting
-1 to 1 0
-1 to 1 0
2LK/2LN/2LM/2LC
Change in
value per step
0.1 %
0.1 %
