16. Remove the screw.
17. Unhook four hooks and then remove
the LSU relay PWB cover.
18. Remove all the connectors and the FFC
connectors with a lock.
(30ppm model/35ppm model has the
FFC connector without a lock.)
*: When remove the FFC from the FFC con-
nector with a lock, removing it after
release the lock by lifting the lock lever up.
19. Remove the electric wire from the elec-
tric wire support portion.
20. Remove the FFC from the FFC support
potion.

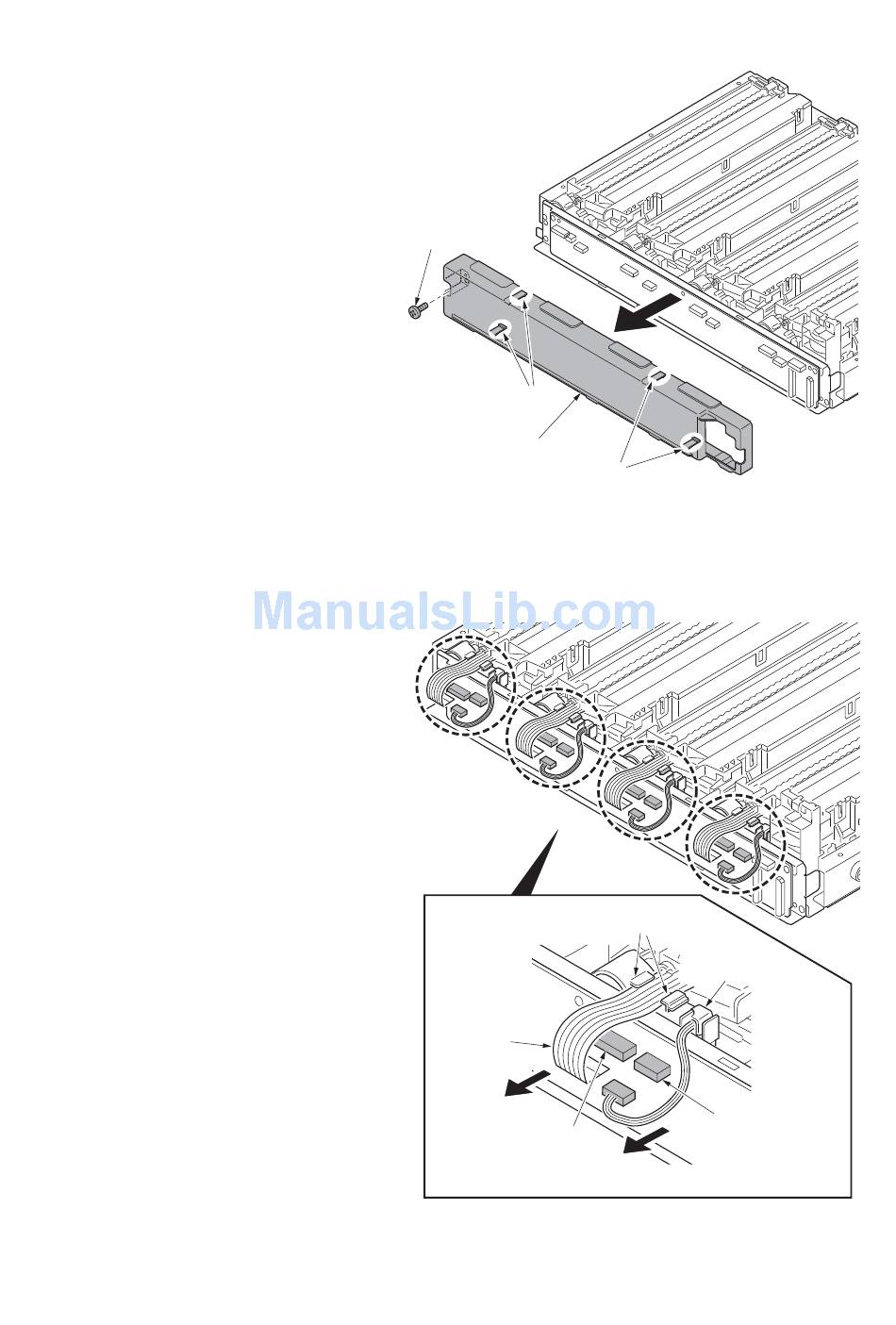

Screw
Hooks
LSU relay PWB cover
Hooks
FFC support portions
FFC
FFC connector *
with a lock
*: 30ppm/35ppm is FFC connector without the lock.
1-5-28
2LK/2LN/2LM/2LC
Figure 1-5-47
Electric wire
support portion
Connector
Figure 1-5-48
