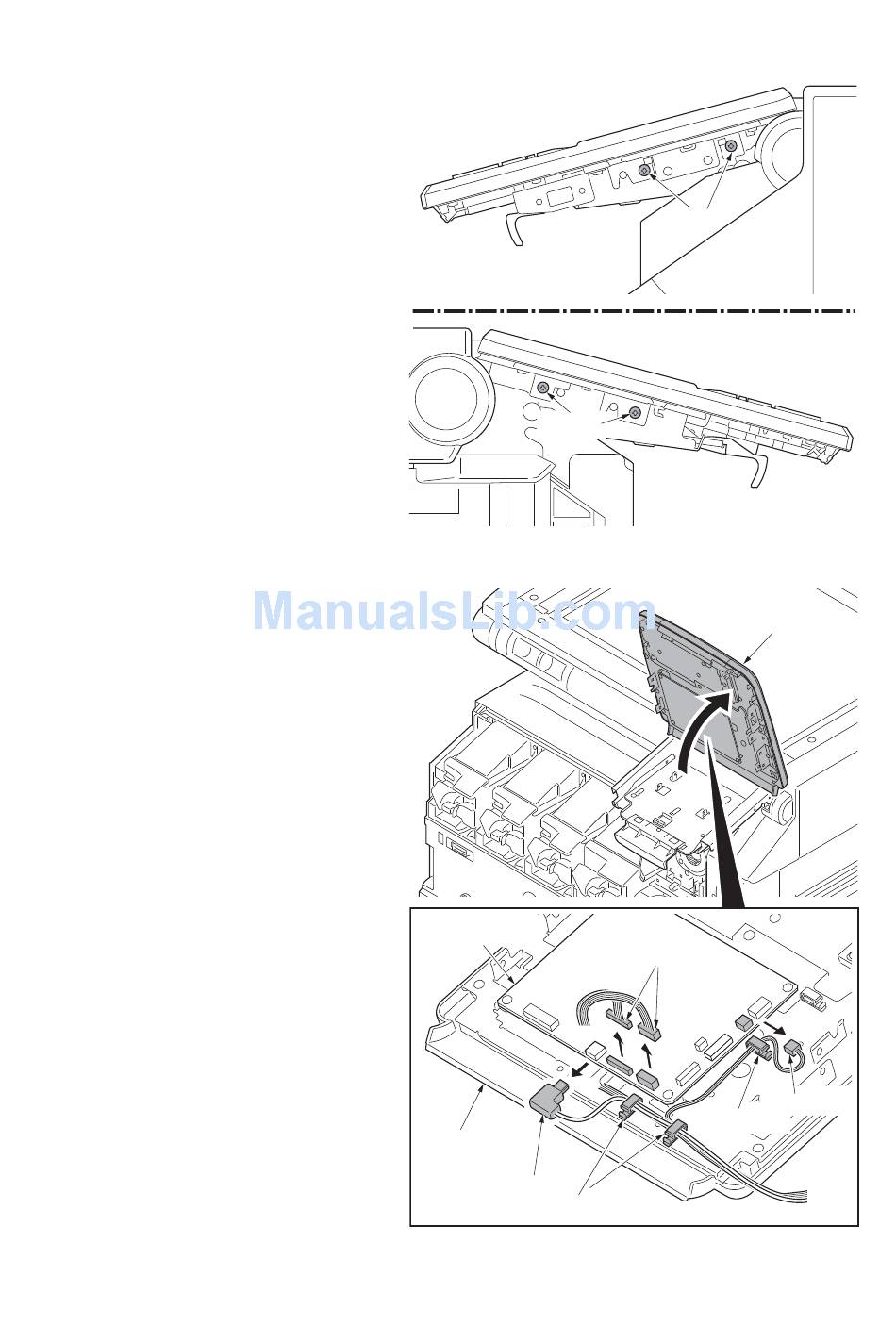

8. Remove four screws.
9. Pull the operation panel unit upward.
10. Release three wire saddles.
11. Remove four connectors from the oper-
ation PWB.
12. Remove the operation panel unit.
Screws
Operation PWB
Operation
panel unit
Connector
Waire saddles
1-5-63
2LK/2LN/2LM/2LC
Screws
Figure 1-5-100
Operation panel unit
Connectors
Wire saddle
Figure 1-5-101
Connector
