5.9 LOGIC CONFIGURATION (PLC EDITOR) 5 SETPOINTS

5.9.6 EXAMPLE OF APPLICATION

In this section a simple logic application is described step by step, a logic is such that keeping one digital input
activated, several outputs will be activated and deactivated in a time window (outputs will remain activated for
200 ms and deactivated for 5 ms). See the following figure:
5

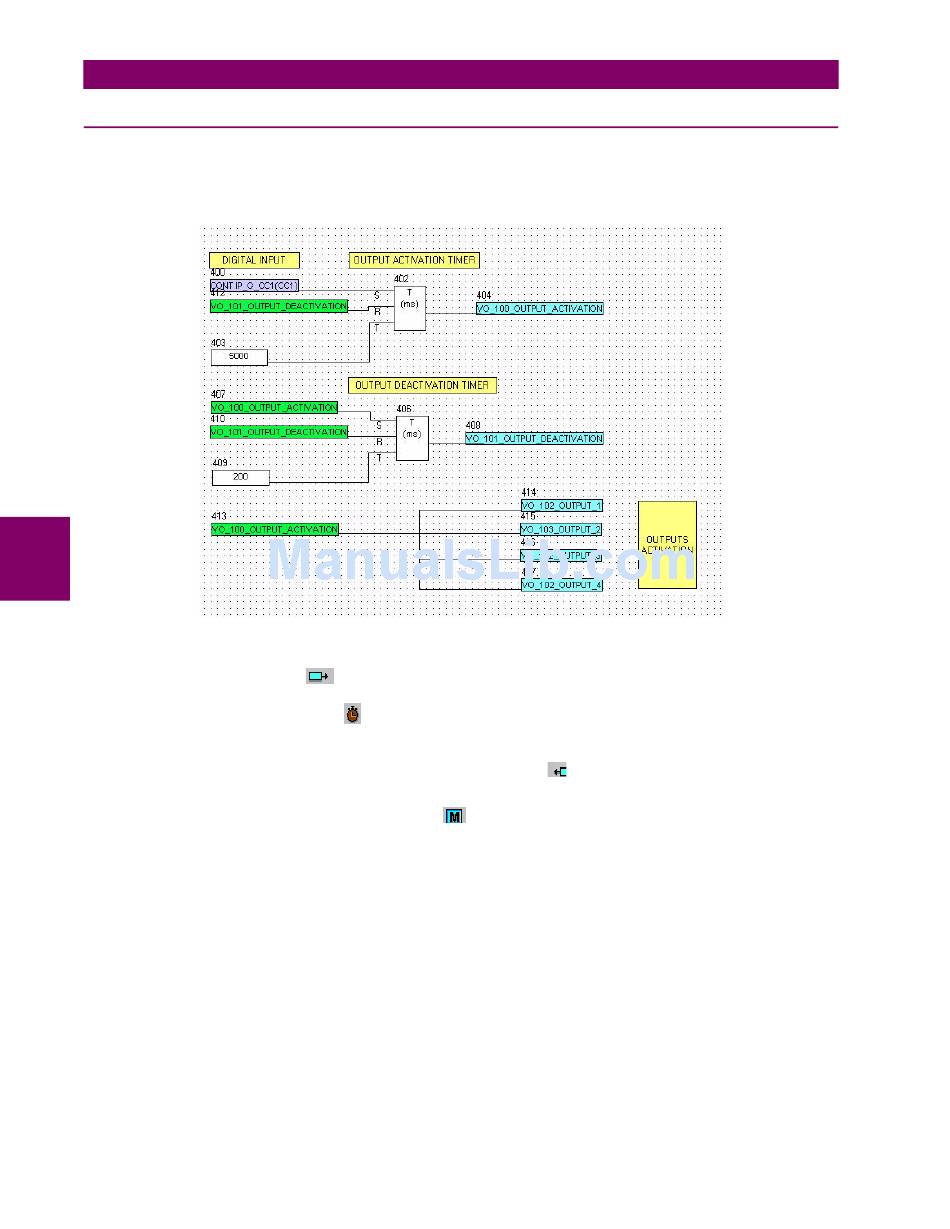

Figure 5–54: LOGIC EXAMPLE
Go to the main menu and select File >New project , create a new project and select an input in the icons
toolbar on the top of the window. This input will be selected as a digital input among the several options for
inputs that can be selected. This input is the SET input for the first timer to launch the output activation signal.
Click on the icon related to the timer to insert the timer on the project. The timer has three inputs (S=set,
R=reset and T=timing input)
The reset signal of the first timer is a virtual output called output_deactivation that has been created as an
output of another second timer. This signal is selected as an output
The timing signal for the first timer is a mask provided by the application, in which the time in milliseconds must
be entered in order to configure the timer time delay.
After creating the first timer, the second one for output deactivation is made. The set signal will be the virtual output created
as an output of the first timer (VO_100_OUTPUT_ACTIVATION), the reset signal will be the output of the second timer
(VO_100_OUTPUT_DEACTIVATION), the time delay is set as 200 ms.
Once the timing logic (timer 1 + timer 2) has been created, the activation signal (VO_100_OUTPUT_ACTIVATION) is linked
to several virtual outputs. Therefore, virtual outputs (VO_102_OUTPUT_1, VO_103_OUTPUT_2, VO_104_OUTPUT_3,
VO_105_OUTPUT_4) will be activated if the CONT IP_G_CC1(CC1) variable is set to 1. Once the
VO_100_OUTPUT_ACTIVATION is active, it will be deactivated after 200 ms, and will remain deactivated for 5 seconds.
This process will be repeated while the digital input is active.
To finish the process the logic must be compiled (Run >Compile)and the equations sent to the relay (Run >Send
Equations to relay) to start working with the new logic.
