7 Disassembly
7.13 Frac30 Bowl assembly
7.13 Frac30 Bowl assembly

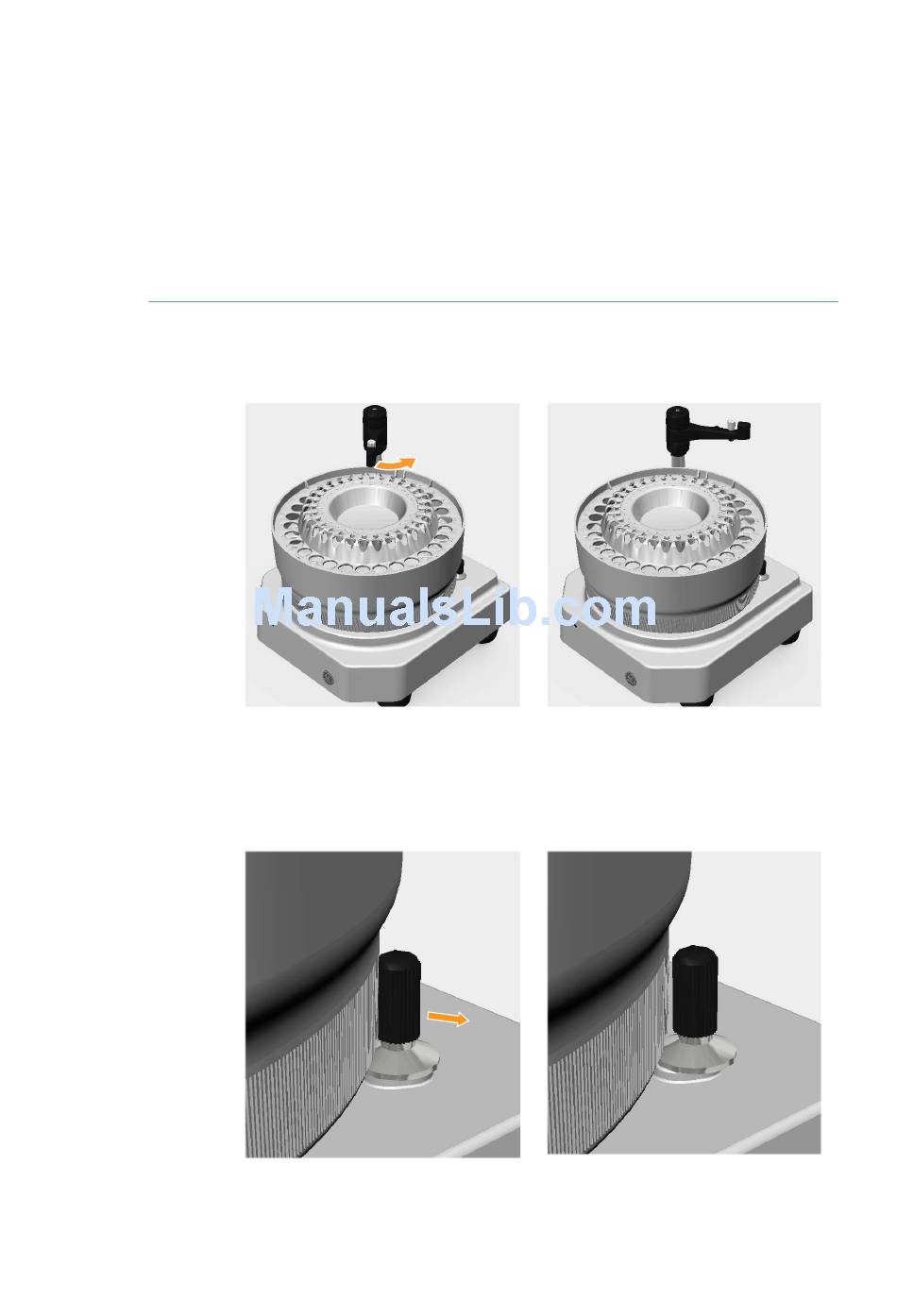

Remove the Bowl assembly
Follow the instructions below to remove the Frac30 Bowl assembly.
Step
1
2
192
Action
Gently move the Dispenser arm counterclockwise to the non-dispensing
(end) position.
Push the drive assembly laterally and hold it at the retracted position.
ÄKTA start Maintenance Manual 29-0603-08 AC
