5.14.4

Switch valve timing

Instructions
Follow the instructions below to set the Switch valve timing. For more details, refer to
ÄKTA start Operating Instructions section Switch valve timing.
Step
1
2
3
4
ÄKTA start Maintenance Manual 29-0603-08 AC
Action

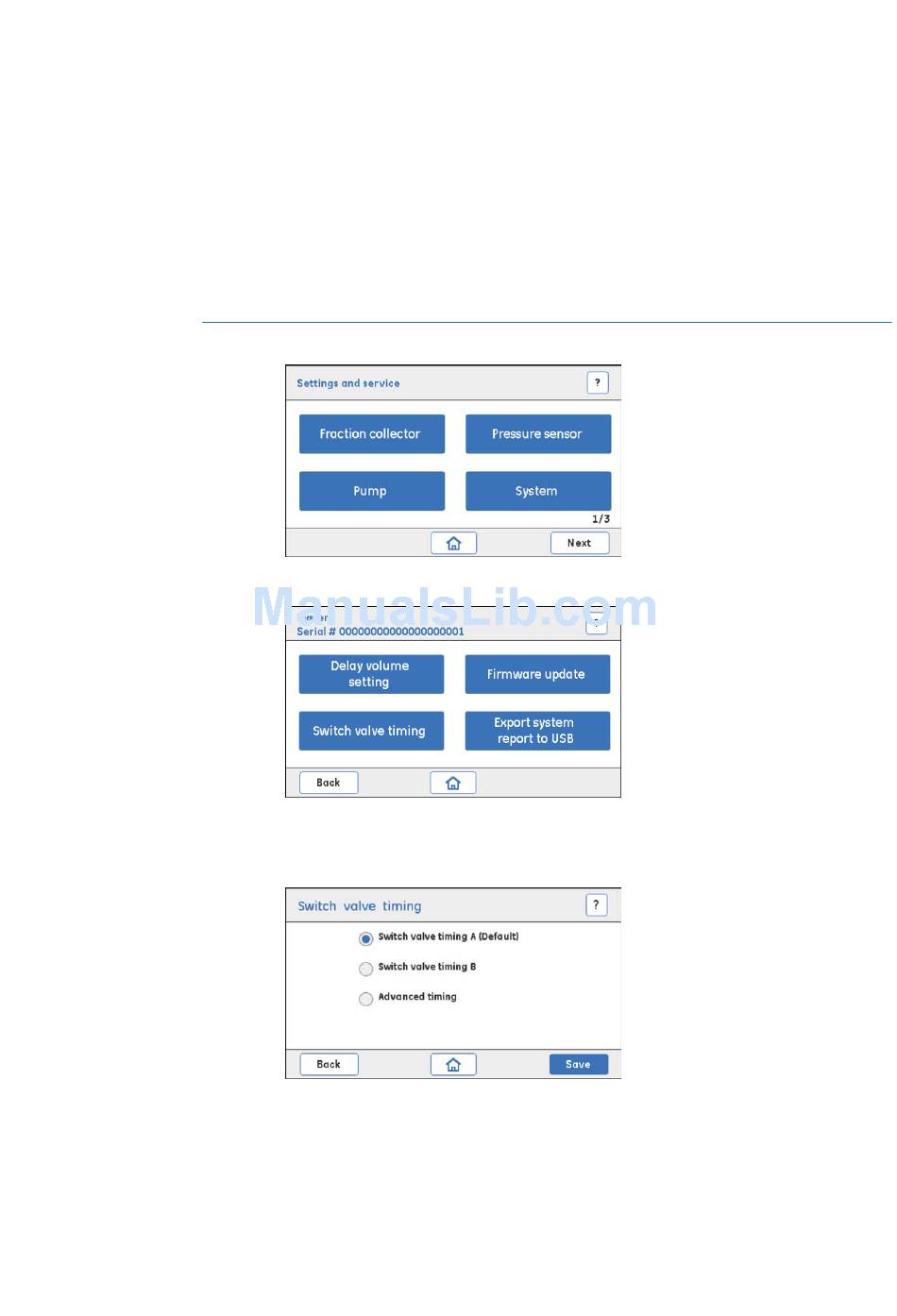

In the Settings and service screen, tap System.
Result: The following screen opens.
In the System screen, tap Switch valve timing.
Result: The following screen opens.
Tap the radio button to select Switch valve timing B (switch time 5 sec.).
Tap Save to save the timing.
Perform Gradient run, either by performing System performance method
or manually set the B concentration (Buffer valve) to 50%. Observe for the
fluctuations.
5 Service and settings
5.14 System
5.14.4 Switch valve timing
