Step
3
ÄKTA start Maintenance Manual 29-0603-08 AC
Action

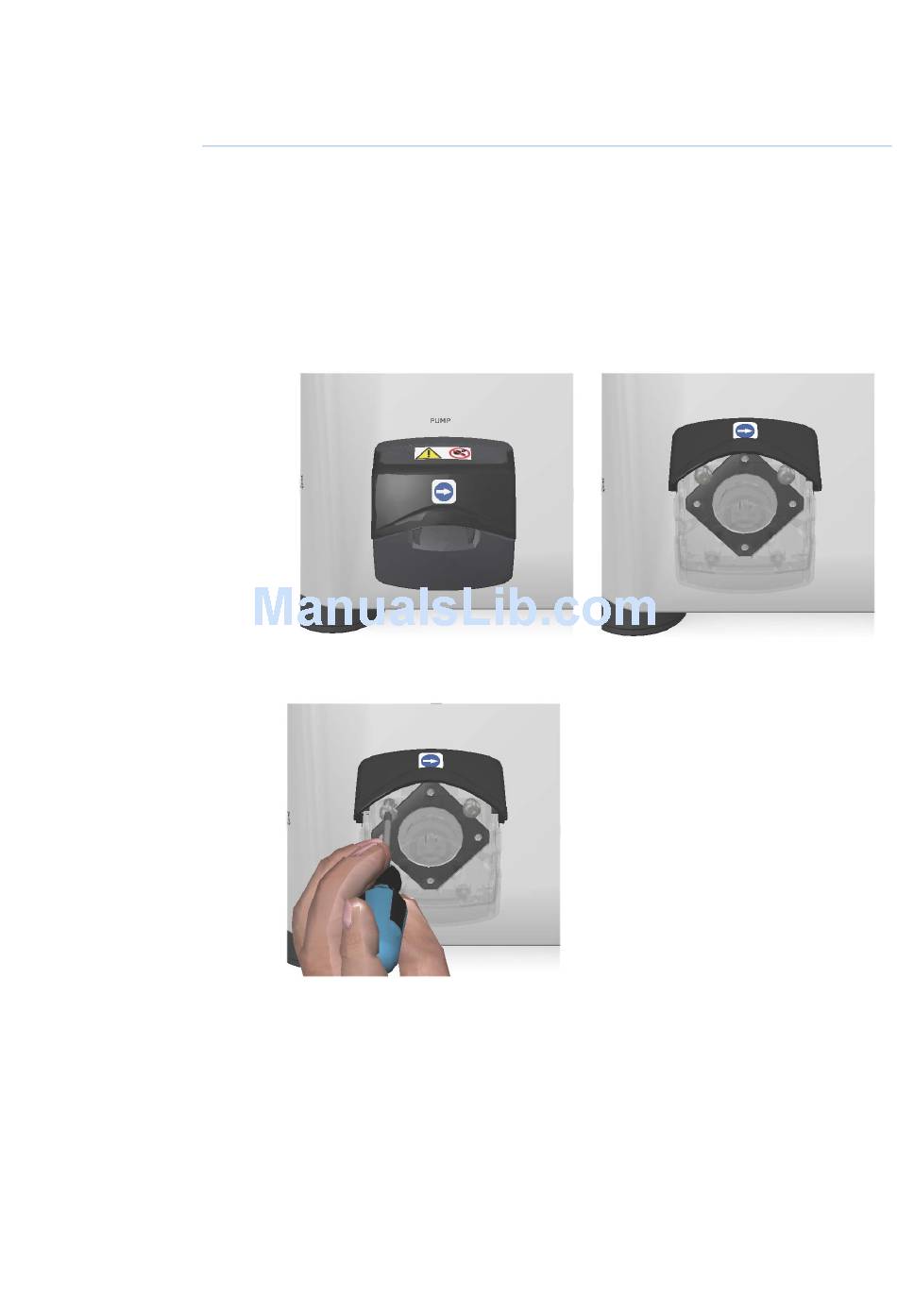

Loosen the two M4 screws from the Pump using a T20 screwdriver, supplied
with the equipment at delivery.
Note:
Make sure that the pump connector is not moved inside the cabinet. The
connector needs to be retained outside the cabinet for re-assembling of a
new Pump module.
Note:
While loosening the screw, make sure to hold the screw in your hand before
it is completely out of the Pump. There is a risk that the screw will fall into the
pump head if proper care is not taken during the disassembly.
7 Disassembly
7.6 Pump
