7 Disassembly
7.4 UV flow cell
Step
5
6
162
Action

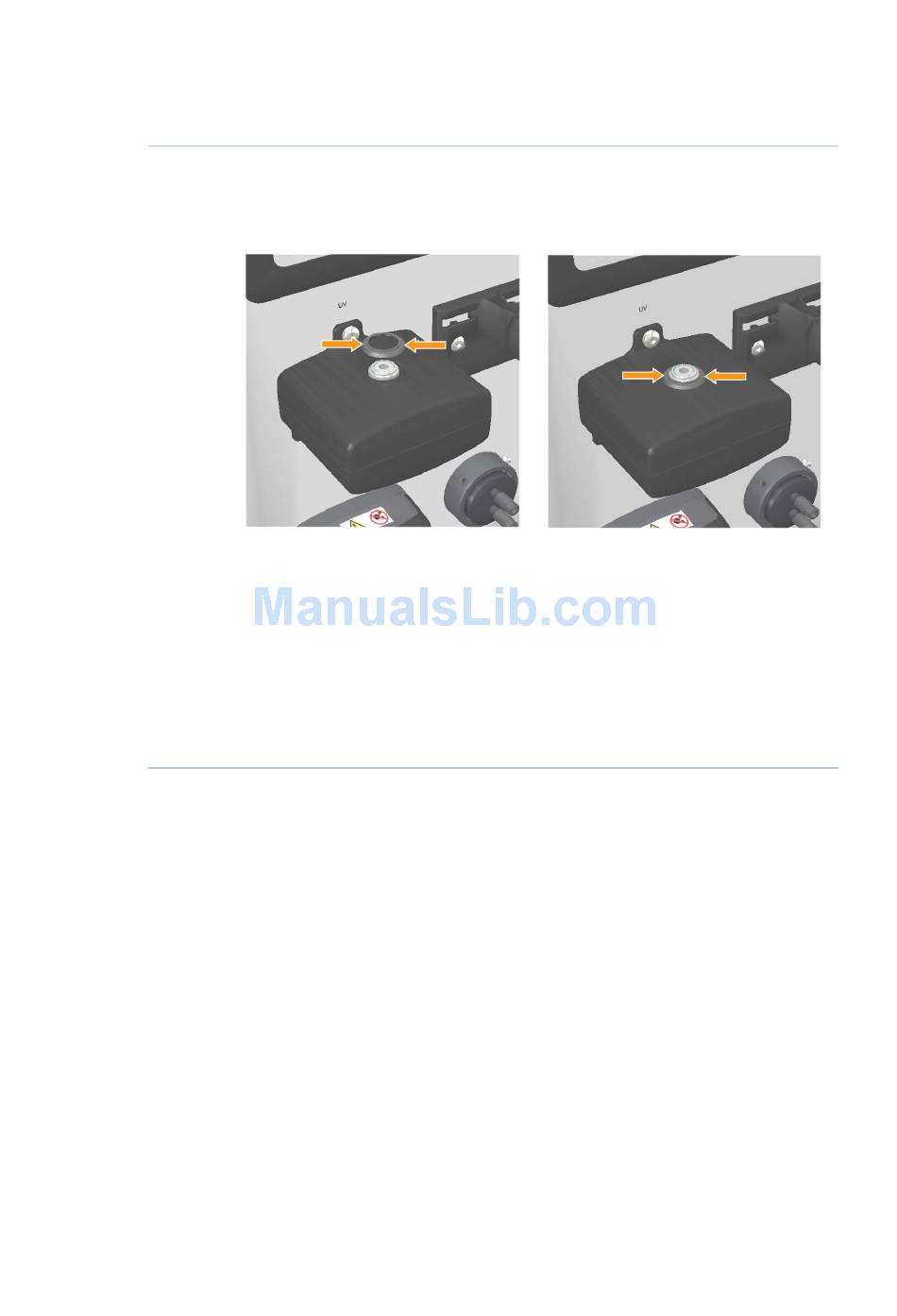

Place the protective cover around the flow cell to protect the electronics in-
side the optical unit from liquid spillage.
Note:
The protective cover should be assembled after completing the assembly of
the UV flow cell inside the UV Monitor by just press-fit.
In the Settings and Service screen, tap UV. In the UV screen, perform a UV
LED calibration and a Flow cell path length test.
This is described further in UV LED Calibration and Flow cell path length test.
ÄKTA start Maintenance Manual 29-0603-08 AC
