VLT Automation Drive FC 300 12-Pulse
How to Program
Instruction Manual High Power

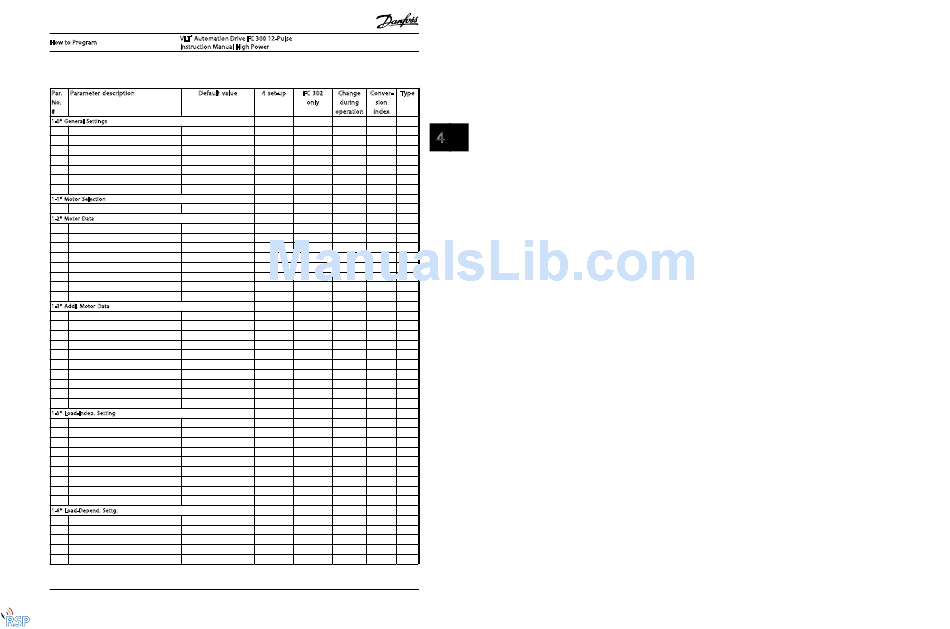

4.3.3 1-** Load/Motor
Par. Parameter description Default value
No.
#
1-0* General Settings
1-00 Configuration Mode null
1-01 Motor Control Principle null
1-02 Flux Motor Feedback Source [1] 24V encoder
1-03 Torque Characteristics [0] Constant torque
1-04 Overload Mode [0] High torque
1-05 Local Mode Configuration [2] As mode par 1-00
1-06 Clockwise Direction [0] Normal
1-1* Motor Selection
1-10 Motor Construction [0] Asynchron
1-2* Motor Data
1-20 Motor Power [kW] ExpressionLimit
1-21 Motor Power [HP] ExpressionLimit
1-22 Motor Voltage ExpressionLimit
1-23 Motor Frequency ExpressionLimit
1-24 Motor Current ExpressionLimit
1-25 Motor Nominal Speed ExpressionLimit
1-26 Motor Cont. Rated Torque ExpressionLimit
1-29 Automatic Motor Adaptation (AMA) [0] Off
1-3* Addl. Motor Data
1-30 Stator Resistance (Rs) ExpressionLimit
1-31 Rotor Resistance (Rr) ExpressionLimit
1-33 Stator Leakage Reactance (X1) ExpressionLimit
1-34 Rotor Leakage Reactance (X2) ExpressionLimit
1-35 Main Reactance (Xh) ExpressionLimit
1-36 Iron Loss Resistance (Rfe) ExpressionLimit
1-37 d-axis Inductance (Ld) ExpressionLimit
1-39 Motor Poles ExpressionLimit
1-40 Back EMF at 1000 RPM ExpressionLimit
1-41 Motor Angle Offset 0 N/A
1-5* Load-Indep. Setting
1-50 Motor Magnetization at Zero Speed 100 %
1-51 Min Speed Normal Magnetizing [RPM] ExpressionLimit
1-52 Min Speed Normal Magnetizing [Hz] ExpressionLimit
1-53 Model Shift Frequency ExpressionLimit
1-54 Voltage reduction in fieldweakening 0 V
1-55 U/f Characteristic - U ExpressionLimit
1-56 U/f Characteristic - F ExpressionLimit
1-58 Flystart Test Pulses Current 30 %
1-59 Flystart Test Pulses Frequency 200 %
1-6* Load-Depend. Settg.
1-60 Low Speed Load Compensation 100 %
1-61 High Speed Load Compensation 100 %
1-62 Slip Compensation ExpressionLimit
1-63 Slip Compensation Time Constant ExpressionLimit
1-64 Resonance Dampening 100 %
MG34Q222 - VLT ® is a registered Danfoss trademark
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
http://www.remotesiteproducts.com/p-20872-Danfoss-131H4490-VLT-Automation-VT-Drive-VFD-FC302-460V-25-HP.aspx
4 set-up FC 302 Change Conver- Type
only during sion
operation index
All set-ups TRUE - Uint8
4
All set-ups FALSE - Uint8
All set-ups x FALSE - Uint8
All set-ups TRUE - Uint8
All set-ups FALSE - Uint8
All set-ups TRUE - Uint8
All set-ups FALSE - Uint8
All set-ups FALSE - Uint8
All set-ups FALSE 1 Uint32
All set-ups FALSE -2 Uint32
All set-ups FALSE 0 Uint16
All set-ups FALSE 0 Uint16
All set-ups FALSE -2 Uint32
All set-ups FALSE 67 Uint16
All set-ups FALSE -1 Uint32
All set-ups FALSE - Uint8
All set-ups FALSE -4 Uint32
All set-ups FALSE -4 Uint32
All set-ups FALSE -4 Uint32
All set-ups FALSE -4 Uint32
All set-ups FALSE -4 Uint32
All set-ups FALSE -3 Uint32
All set-ups x FALSE -4 Int32
All set-ups FALSE 0 Uint8
All set-ups x FALSE 0 Uint16
All set-ups FALSE 0 Int16
All set-ups TRUE 0 Uint16
All set-ups TRUE 67 Uint16
All set-ups TRUE -1 Uint16
All set-ups x FALSE -1 Uint16
All set-ups FALSE 0 Uint8
All set-ups TRUE -1 Uint16
All set-ups TRUE -1 Uint16
All set-ups FALSE 0 Uint16
All set-ups FALSE 0 Uint16
All set-ups TRUE 0 Int16
All set-ups TRUE 0 Int16
All set-ups TRUE 0 Int16
All set-ups TRUE -2 Uint16
All set-ups TRUE 0 Uint16
