VLT Automation Drive FC 300 12-Pulse
How to Install
Instruction Manual High Power

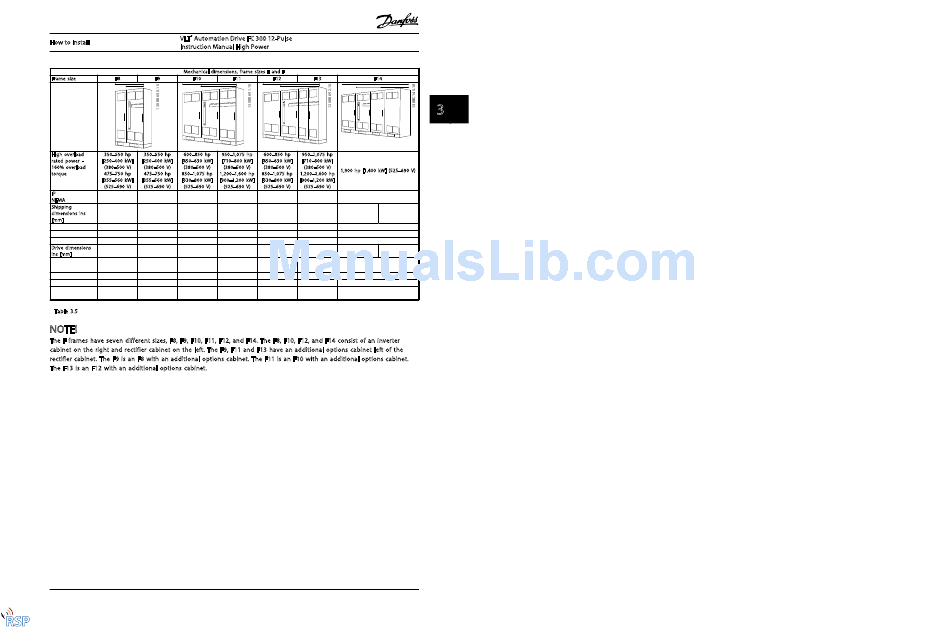

Mechanical dimensions, frame sizes E and F
Frame size F8 F9 F10
F9 F8 F11
F10
High overload 350–550 hp 350–550 hp 600–850 hp
rated power - [250–400 kW] [250–400 kW] [450–630 kW]
160% overload (380–500 V) (380–500 V) (380–500 V)
torque 475–750 hp 475–750 hp 850–1,075 hp
[355–560 kW] [355–560 kW] [630–800 kW]
(525–690 V) (525–690 V) (525–690 V)
IP 21, 54 21, 54 21, 54
NEMA Type 12 Type 12 Type 12
Shipping
dimensions ins
[mm]
Height 915 [2,324] 915 [2,324] 915 [2,324]
Width 382 [970] 617.3 [1,568] 693 [1,760]
Depth 445 [1,130] 445 [1,130] 445 [1,130]
Drive dimensions
ins [mm]
86.8 [2,204] 86.8 [2,204] 86.8 [2,204]
Height
Width 31.5 [800] 55.1 [1,400] 63 [1,600]
Depth 23.9 [606] 23.9 [606] 23.9 [606]
Max weight lbs
970 [440] 1,446.2 [656] 1,940.1 [880]
[kg]
Table 3.5
NOTE!
The F frames have seven different sizes, F8, F9, F10, F11, F12, and F14. The F8, F10, F12, and F14 consist of an inverter
cabinet on the right and rectifier cabinet on the left. The F9, F11 and F13 have an additional options cabinet left of the
rectifier cabinet. The F9 is an F8 with an additional options cabinet. The F11 is an F10 with an additional options cabinet.
The F13 is an F12 with an additional options cabinet.
MG34Q222 - VLT ® is a registered Danfoss trademark
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
http://www.remotesiteproducts.com/p-20872-Danfoss-131H4490-VLT-Automation-VT-Drive-VFD-FC302-460V-25-HP.aspx
F11 F12 F13 F14
F13 F15
F12
F14
950–1,075 hp 600–850 hp 950–1,075 hp
[710–800 kW] [450–630 kW] [710–800 kW]
(380–500 V) (380–500 V) (380–500 V)
1,900 hp [1,400 kW] (525–690 V)
1,200–1,600 hp 850–1,075 hp 1,200–1,600 hp
[900–1,200 kW] [630–800 kW] [900–1,200 kW]
(525–690 V) (525–690 V) (525–690 V)
21, 54 21, 54 21, 54 21, 54
Type 12 Type 12 Type 12 Type 12
915 [2,324] 915 [2,324] 915 [2,324] 930 [2,362]
1,007.5 [2,559] 850.4 [2,160] 1,165.4 [2,960] 1,015 [2,578]
445 [1,130] 445 [1,130] 445 [1,130] 445 [1,130]
86.8 [2,204] 86.8 [2,204] 86.8 [2,204] 89.1 [2,262]
94.5 [2,400] 78.7 [2,000] 110.2 [2,800] 94.5 [2,400]
23.9 [606] 23.9 [606] 23.9 [606] 23.94 [608]
2,416.3 [1,096] 2,253.1 [1,022] 2,729.3 [1,238] 3,108.5 [1,410]
3 3
