VLT
How to Install
Instruction Manual High Power
12 +24V
3 3
18 Par. 5-10
27 Par. 5-12
29 Par. 5-13
32 Par. 5-14
37

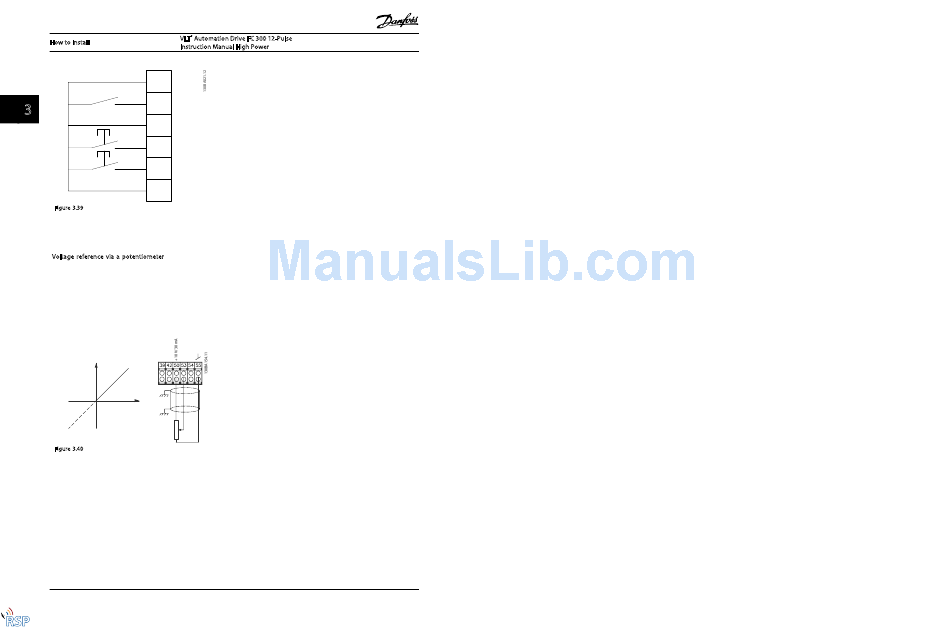

Figure 3.39
3.4.4 Potentiometer Reference
Voltage reference via a potentiometer
Reference Source 1 = [1] Analog input 53 (default)
Terminal 53, Low Voltage = 0 V
Terminal 53, High Voltage = 10 V
Terminal 53, Low Ref./Feedback = 0 RPM
Terminal 53, High Ref./Feedback = 1500 RPM
Switch S201 = OFF (U)
Speed RPM
P 6-15
Ref. voltage
P 6-11 10 V
1 kΩ
Figure 3.40
3-42 MG34Q222 - VLT
