Instruction Manual High Power

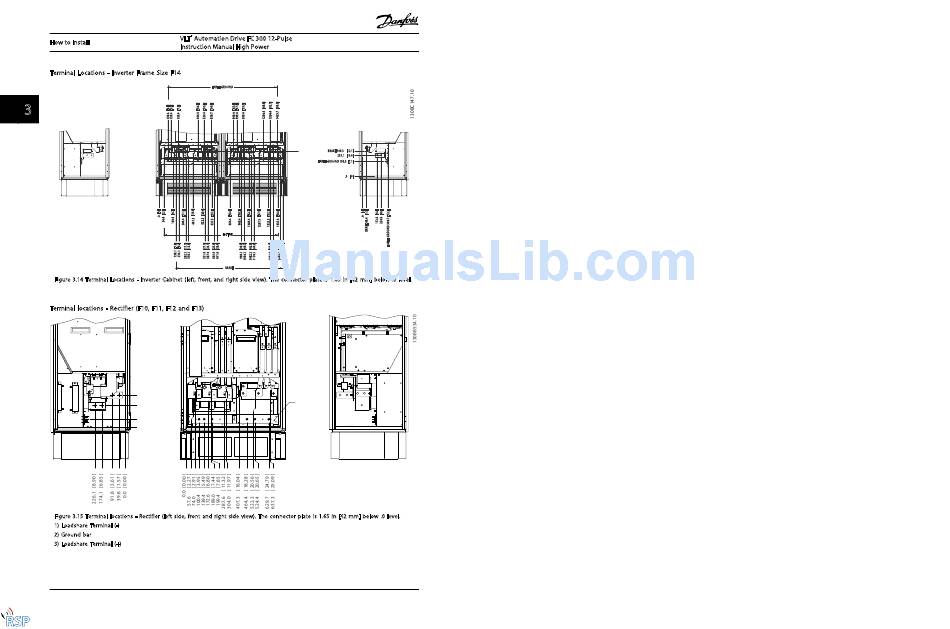

Terminal Locations - Inverter Frame Size F14
3 3
Figure 3.14 Terminal Locations - Inverter Cabinet (left, front, and right side view). The connector plate is 1.65 in [42 mm] below .0 level.
Terminal locations - Rectifier (F10, F11, F12 and F13)
239.6 [ 9.43 ]
160.0 [ 6.30 ]
56.6 [ 2.23 ]
0.0 [ 0.00 ]
Figure 3.15 Terminal locations - Rectifier (left side, front and right side view). The connector plate is 1.65 in [42 mm] below .0 level.
1) Loadshare Terminal (-)
2) Ground bar
3) Loadshare Terminal (+)
3-12 MG34Q222 - VLT
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
http://www.remotesiteproducts.com/p-20872-Danfoss-131H4490-VLT-Automation-VT-Drive-VFD-FC302-460V-25-HP.aspx
®
Automation Drive FC 300 12-Pulse
EARTH GROUND
BRAKE 308.3 [12.1]
253.1 [10.0]
EARTH GROUND 180.3 [7.1]
.0 [.0]
MOTOR
BRAKE
U/T1 96 V/T2 97 W/T3 98
R2/L12 91-1 S2/L22 92-1 T2/L32 93-1 1
R1/L11 91 S1/L21 92 T1/L31 93
