b.

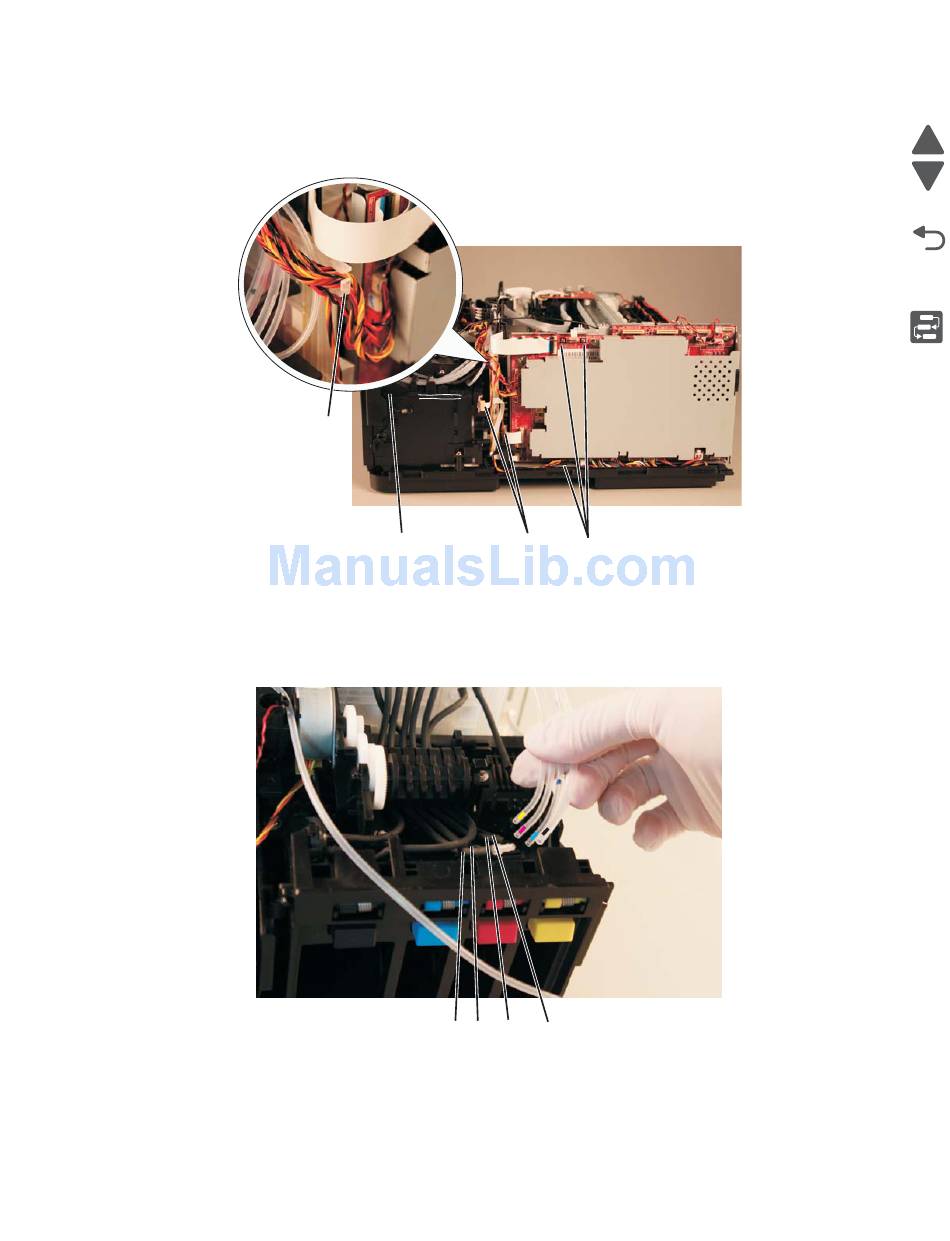

Connect the tank security FFC (C) to the sensor.
c.
Connect the ink level sense FFC (C), J71, J72, and J5 cable connectors (D) to the system board.
F
d.
Install the ink tubes to the neoprene tubes of the tank receiver assembly.
Note: The ink tubes are color coded. INsert each ink tube as shown below.
E
C
M
K C
Y
D
Repair information
4447-20x
Previous
Next
Go Back
Disassembly
Flow chart
4-82
