16.

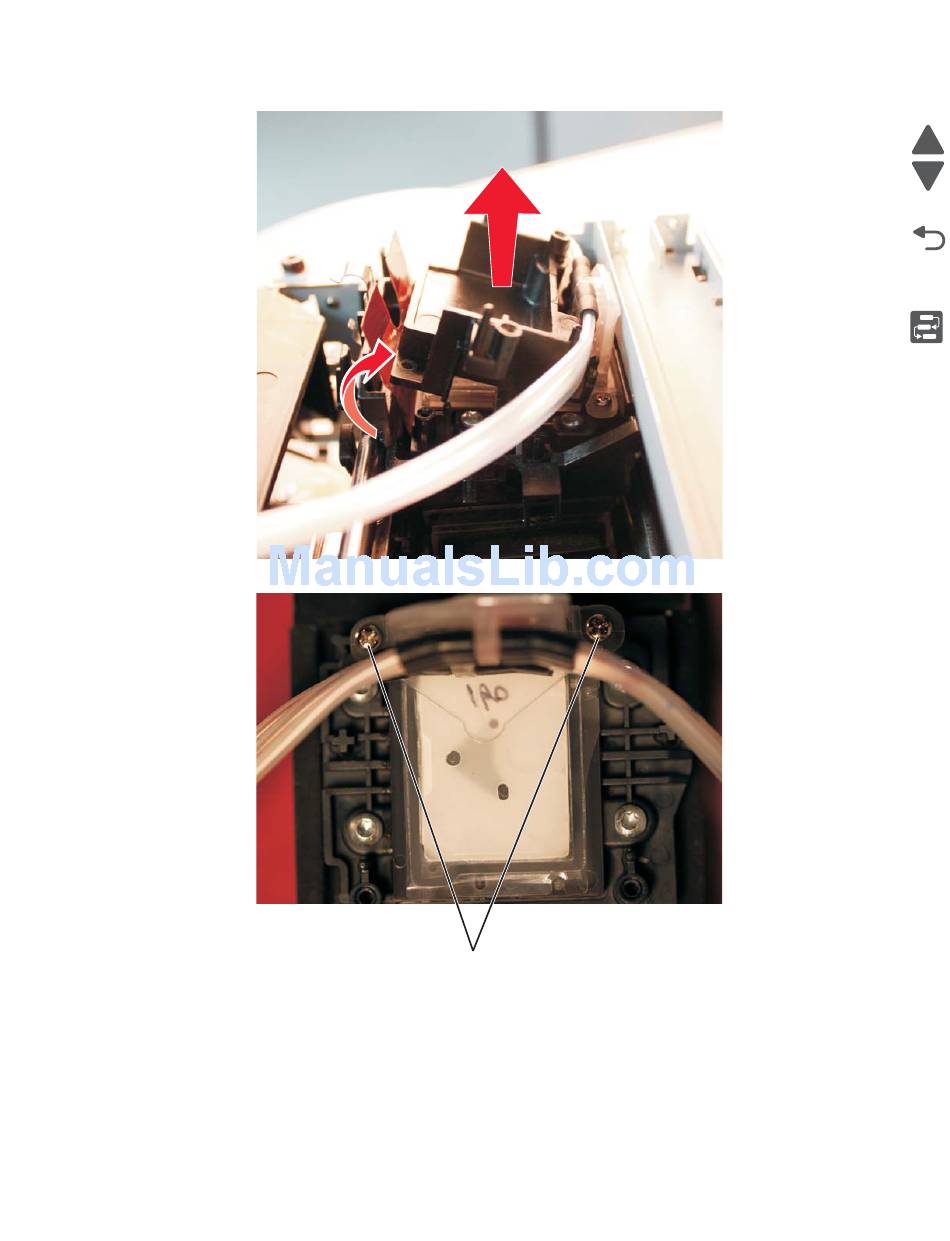

Tilt the printhead carrier card holder, and pull up to remove from the printhead.
17.
Remove the two T2.6 x 7.6 pan head screws (C) securing the inlet.
C
4447-20x
4-74
Repair information
