Rear View - Lexmark Pro5500t Service Manual

Number Use the
10 Bin extender
11 Operator panel with touch screen

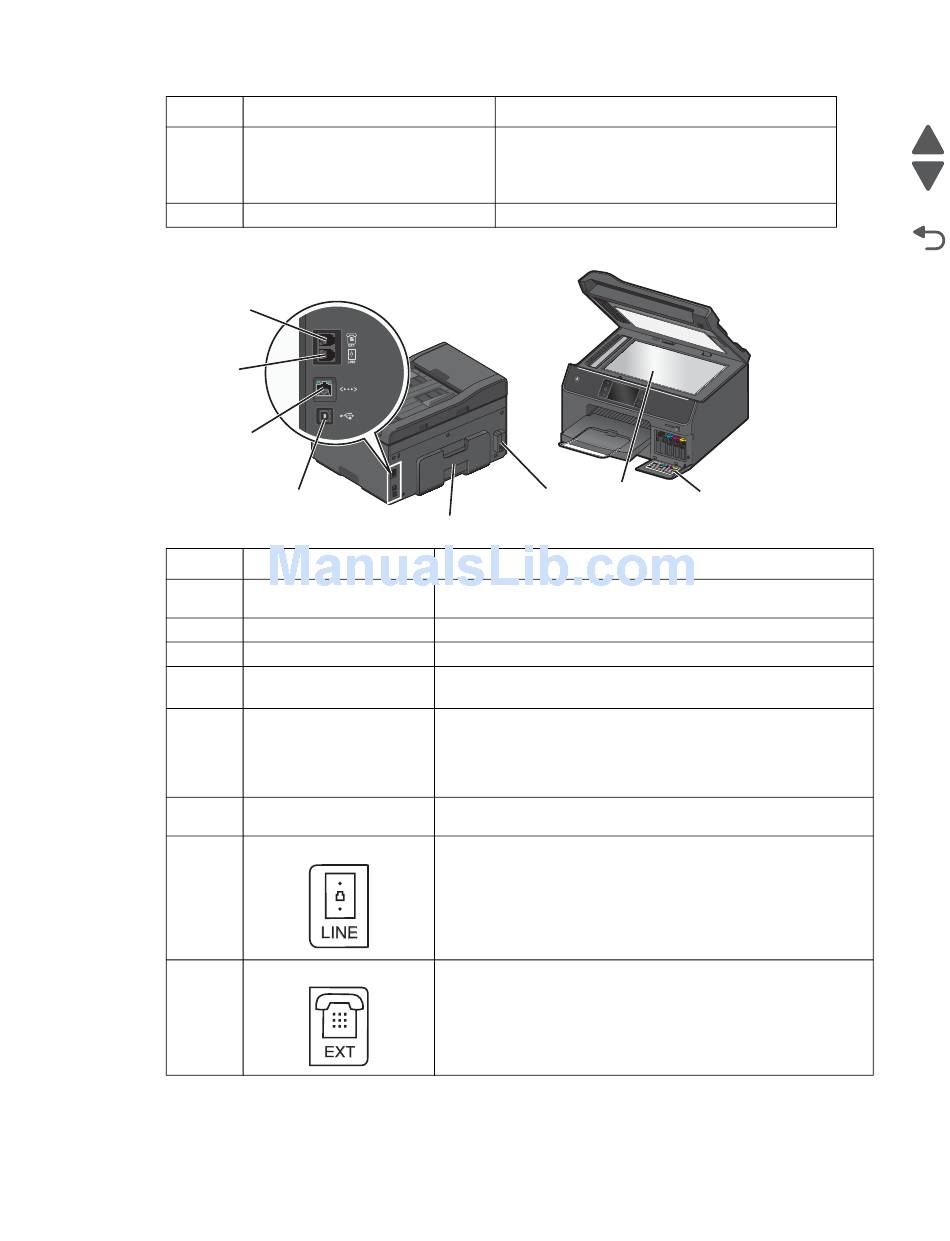

Rear view

8
7
6
Number Part
1 Customer support label
2 Scanner glass
3 Power supply with port
4 Duplex unit
5 USB port
6 Ethernet port
7 LINE port
8 EXT port
5
4
Function
Identify the model number of the printer, the customer support hot
line, and the ink cartridge information.
Scan, copy, or fax photos and documents.
Connect the printer to the power cord.
• Print on both sides of a sheet of paper.
• Access paper jams.
Connect the printer to a computer using a USB cable.
Warning: Do not touch the USB port except when plugging in or
removing a USB cable or installation cable.
Note: Remove the sticker to access the port.
Connect the printer to a computer, a local network, an external
DSL, or a cable modem.
Connect the printer to an active telephone through a standard wall
jack (RJ-11), DSL filter, or VoIP adapter, or any other adapter that
allows you to access the phone line to send and receive faxes.
Connect additional devices (telephone or answering machine) to
the printer and the telephone line. Use this port if you do not have
a dedicated fax line for the printer and if this connection method is
supported in your country or region.
Note: Remove the plug to access the port.
To
Catch the paper as it exits.
Note: For the printer to be ready for any print job,
make sure to carefully extend the exit bin, and to
flip out the bin extender.
Operate the printer.
SD/M S/xD
/MM C
2
3
4447-20x
1
5-3
