6.

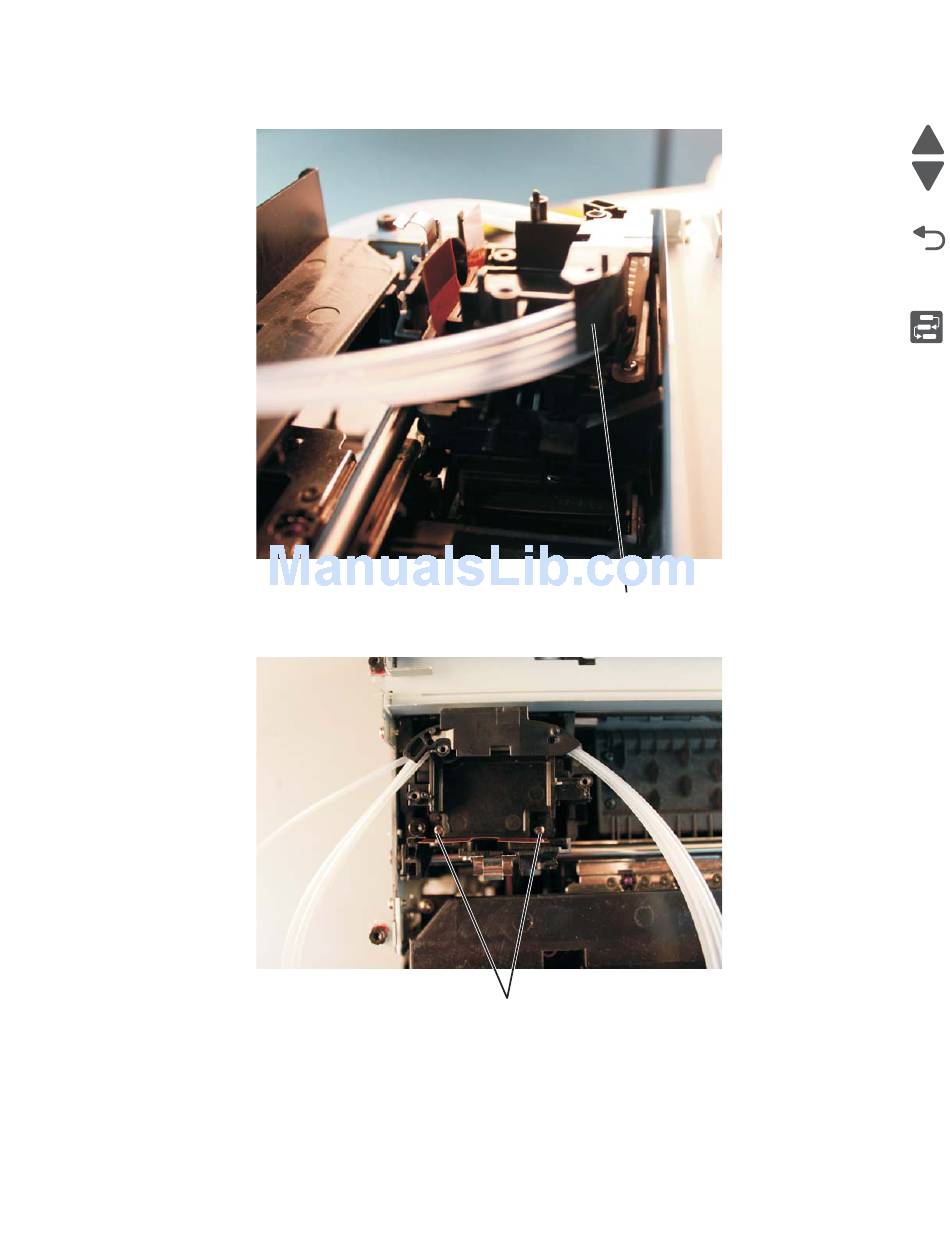

Install the tube clip (C) to cover the tubes and inlet.
7.
Attach the two T2.6 x 7.6 pan head screws to secure the printhead carrier card holder to the printhead.
8.
Install the printhead carrier card. See the installation note on
9.
Reset the printhead skew. See
D
"Adjusting skew" on page
C
page
4-75.
3-18.
Repair information
4447-20x
Previous
Next
Go Back
Disassembly
Flow chart
4-78
