Card reader removal
Warning: Do not interchange screws during reinstallation, as it may damage the machine. Always take note of
their original placement.
1.
Remove the power supply. See
2.
Remove the duplex unit. See
3.
Remove the rear cover. See
4.
Remove the left cover. See
5.
Remove the right cover. See
6.
Remove the control panel assembly. See
7.

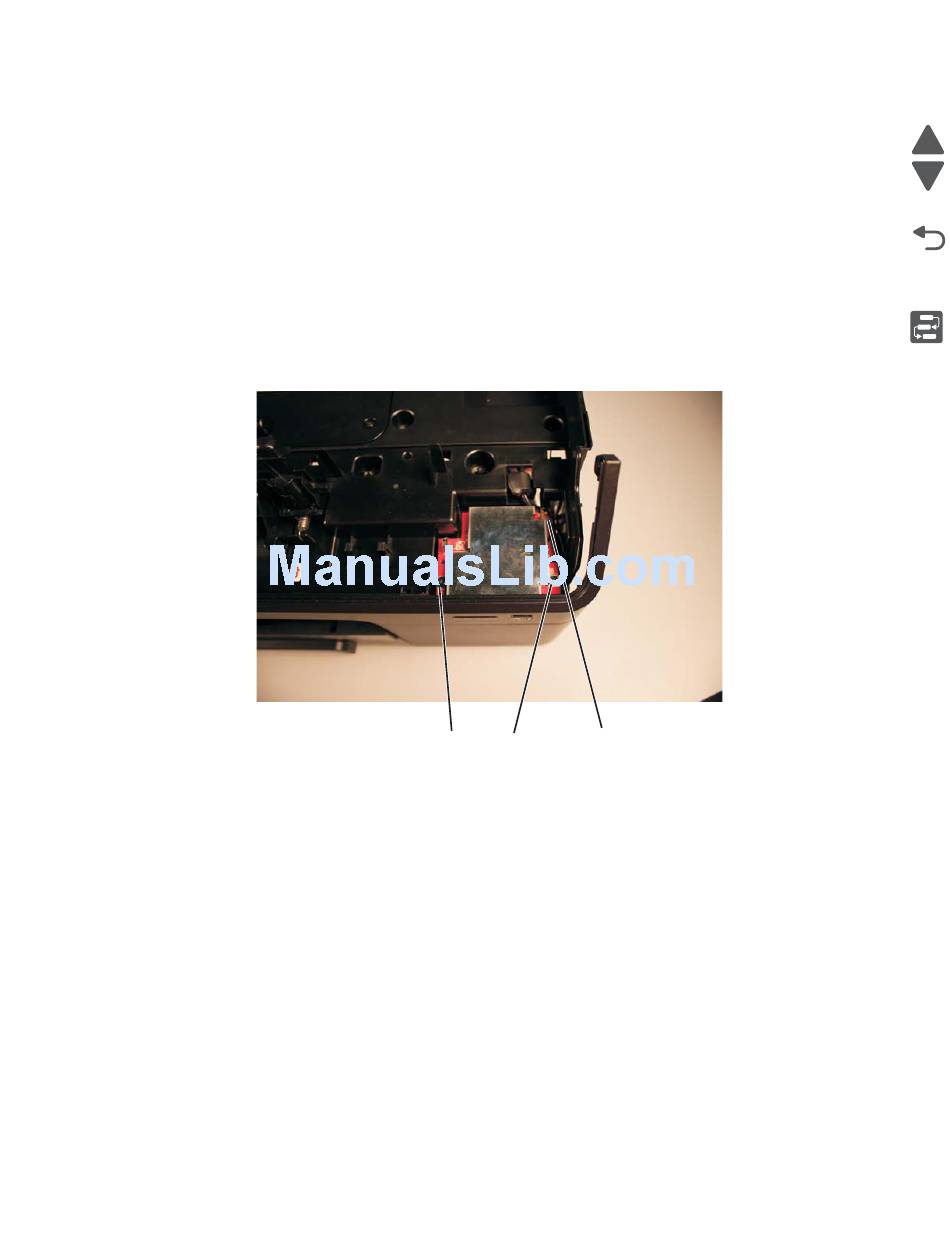

Disconnect the USB connector (A) connecting the card reader to the system board.
8.
Remove the T3x8 pan head screw (B) securing the left side of the card reader.
9.
Remove the other T3x8 pan head screw (C) securing the ground connector to the card reader.
"Power supply removal" on page
"Duplex unit removal" on page
"Rear cover removal" on page
"Left cover removal" on page
"Right cover removal" on page
"Control panel assembly removal" on page
B
C
4-10.
4-11.
4-25.
4-26.
4-29.
A
