16.

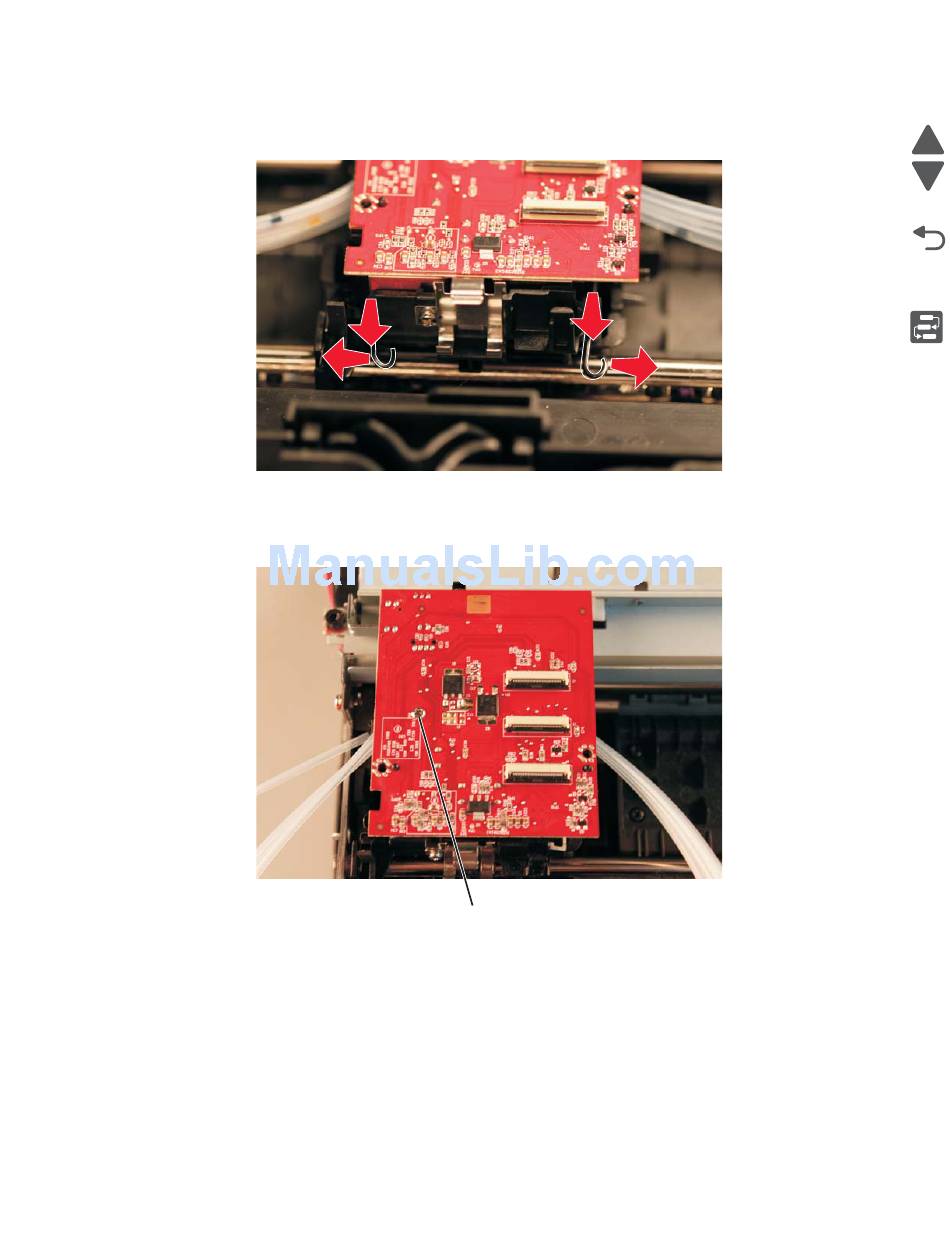

Push down on both spring locks located at the bottom of the printhead carrier assembly, and move
sideways to unlock.
17.
Move the printhead carrier assembly to the maintenance position.
18.
Remove the T2.6 x 7.6 pan head screw (A) securing the printhead carrier card to the printhead assembly.
A
4447-20x
4-68
