Lexmark Pro5500t Service Manual page 230

4447-20x
14.

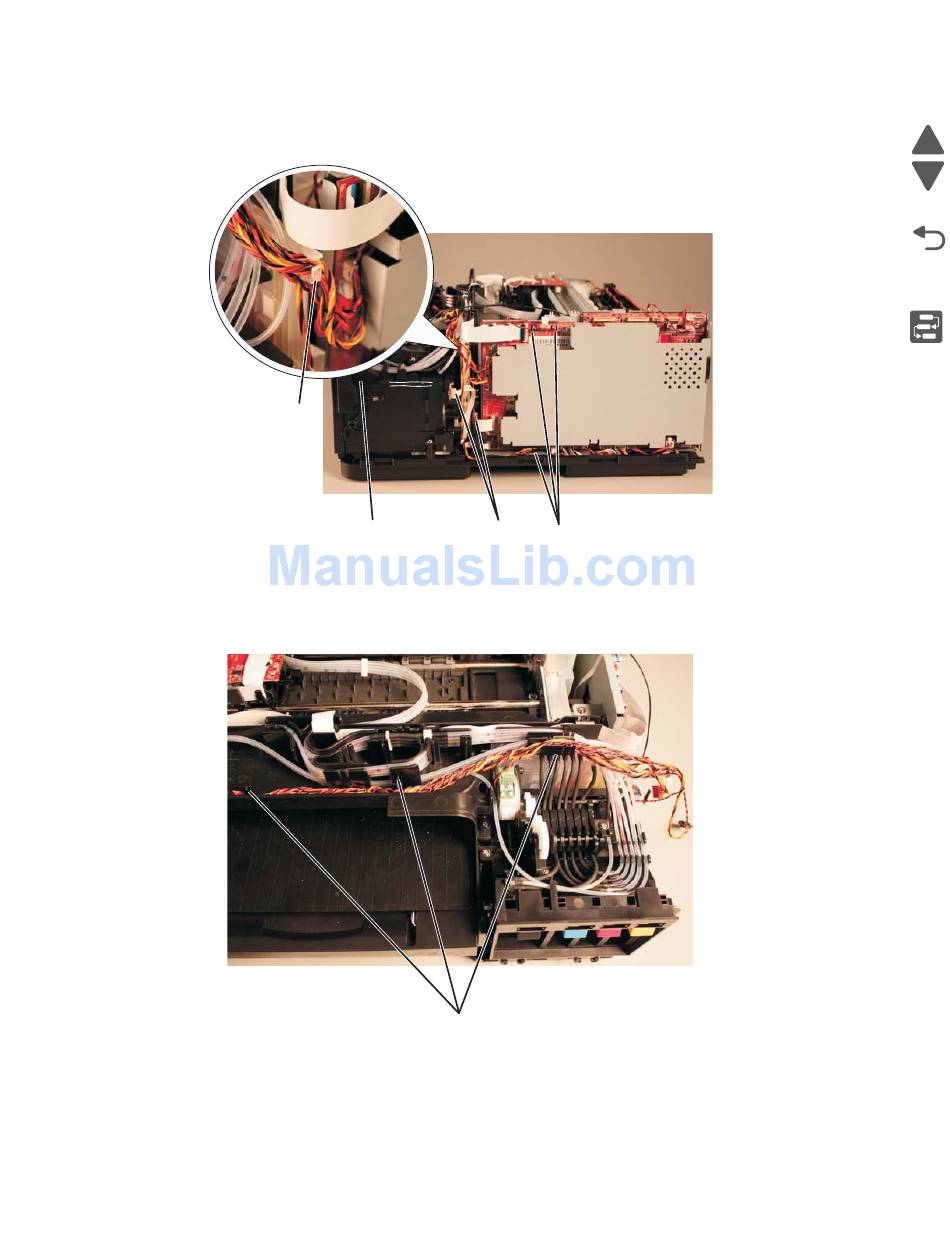

Disconnect the two FFCs (C), J71, J72, and IPV selector motor cable connectors (D).
15.
Disconnect the tank door FFC (E) from the tank door sensor.
16.
Remove all cable connectors from the cable holder (F).
17.
Separate the J72 and IPV cable connectors from the cable bunch.
Note: Take note of the original routing of these cables.
18.
Remove the cables from the cable guides (G).
4-61
Service Manual
F
E
G
C
D
