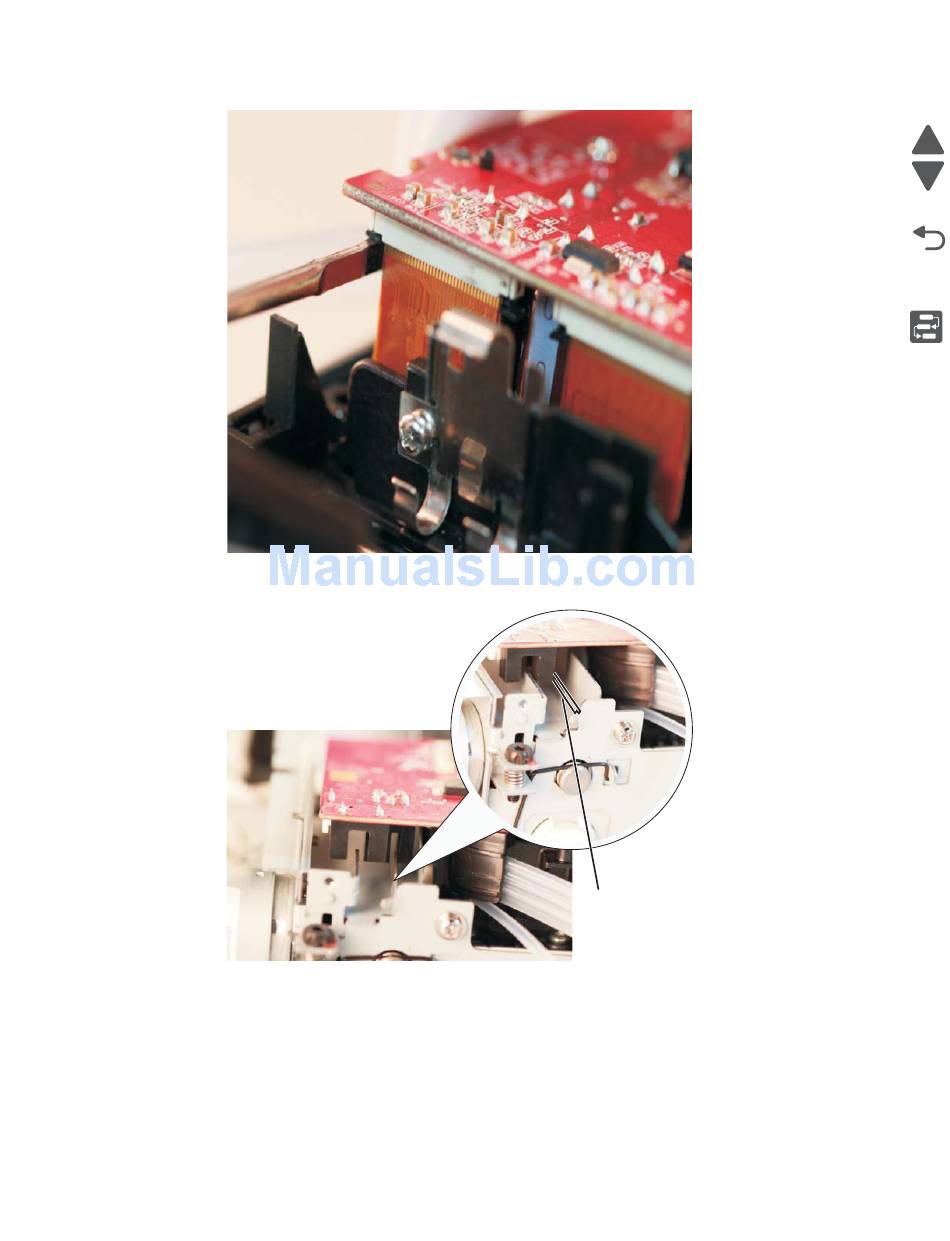

Lift and tilt the printhead carrier card, and fasten the printhead FFCs into the connector locks.
5.
Make sure that the encoder strip (E) is between the gaps of the encoder sensor that is under the printhead
carrier assembly.
4-71
