Adf Door Removal - Lexmark Pro5500t Service Manual

Hide thumbs Also See for Pro5500t:
Table of Contents

Advertisement

4447-20x

ADF door removal

1.

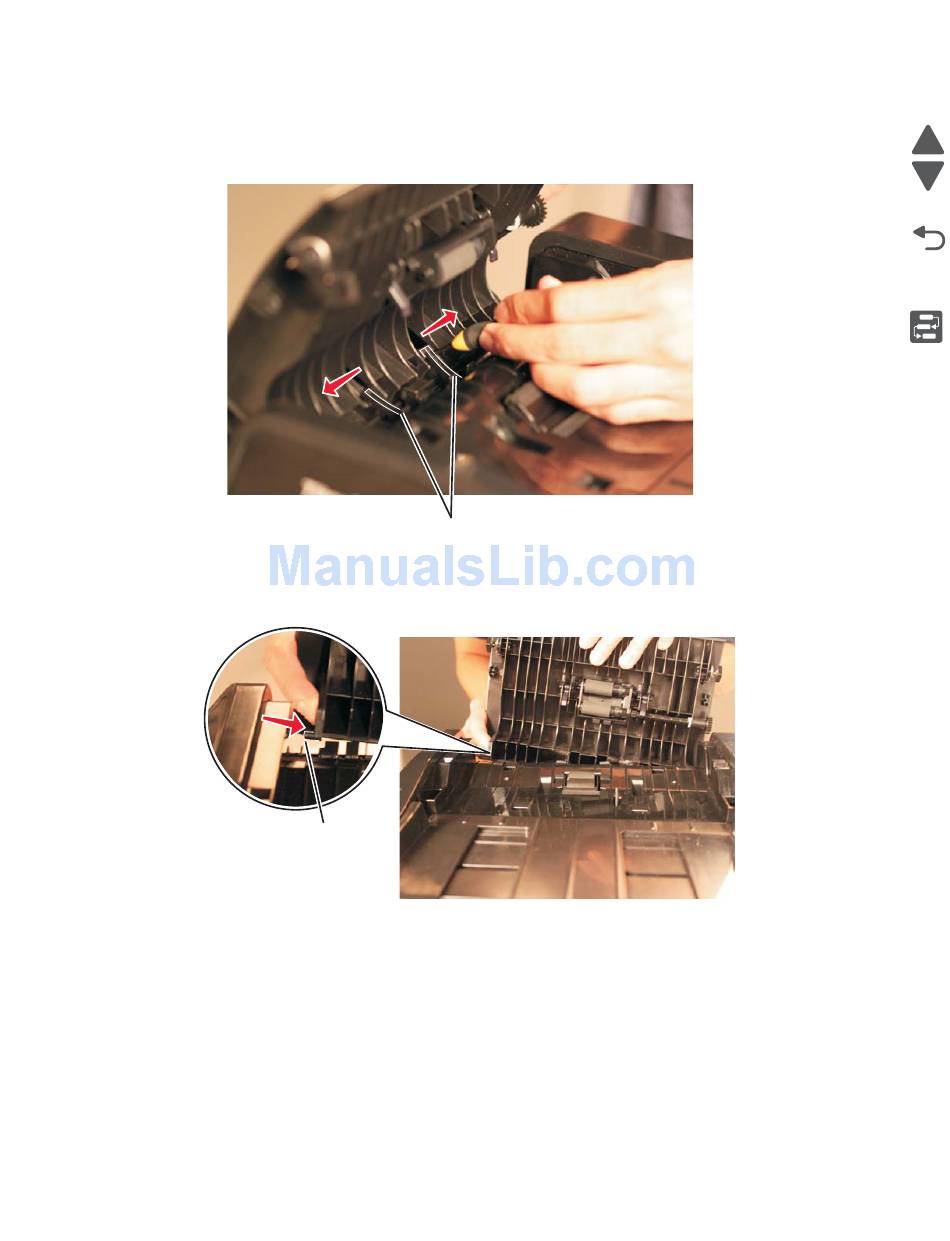

Open the ADF door at 45 degrees, and push the latches (A) to the sides to unlock.
2.
Open the ADF door fully, and push the right hinge (B) sideward to release.
4-23
Service Manual
A
B
Previous
Next
Go Back
Disassembly
Flow chart
