Chapter 16 — Interfaces
16.3 USB Interface ("usb1:")
168
Downloaded from www.Manualslib.com
The EasyCoder PX4i and PX6i printers are, as standard, fi tted with a USB
(Universal Serial Bus) interface connector on the CPU board.
The supported USB version is USB 1.1 (also called "USB 2.0 full speed").
To use the USB interface for printing from a PC, you need a USB-compat-
ible Intermec InterDriver installed in your PC. The printer works only as a
"slave", that is, the USB interface is not suitable for programming. Unlike
for example RS-232, there is no communication setup in regard of baud
rate, parity, handshaking, etc. Select the USB interface as standard IN/
OUT channel in Intermec Fingerprint, the Intermec Direct Protocol, or
Intermec Shell as device "usb1:" (communication channel 6).
The EasyCoder PX4i and PX6i printers are so called "self-powered
devices." We recommend that you only connect one printer to each USB
port on the host, either directly or via a hub. Other devices, like a keyboard
and a mouse, can be connected to the same hub. If you need to connect
more than one Intermec USB printer to a host, you should use different
USB ports.

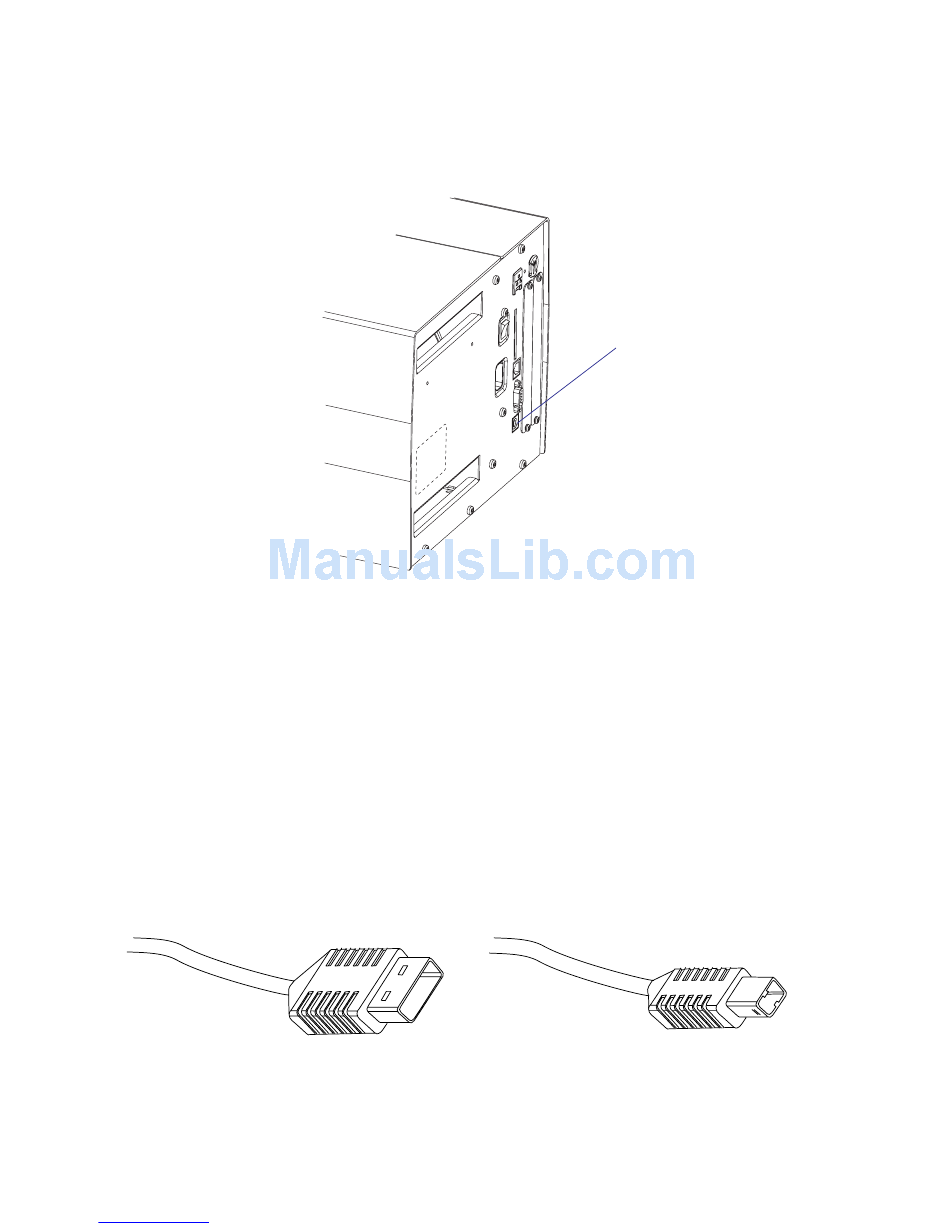

Using a USB Class A/B cable, connect the Class A plug to the PC or hub
and the Class B plug to the printer.
USB Class A connector.
Connect to PC or hub.
manuals search engine
USB
("usb1:")
USB Class B connector.
Connect to USB port on
printer's rear plate.
