Right-Hand Door - Intermec EasyCoder PX4i Service Manual

Chapter 3 — Covers and Doors

3.1 Right-Hand Door

Description

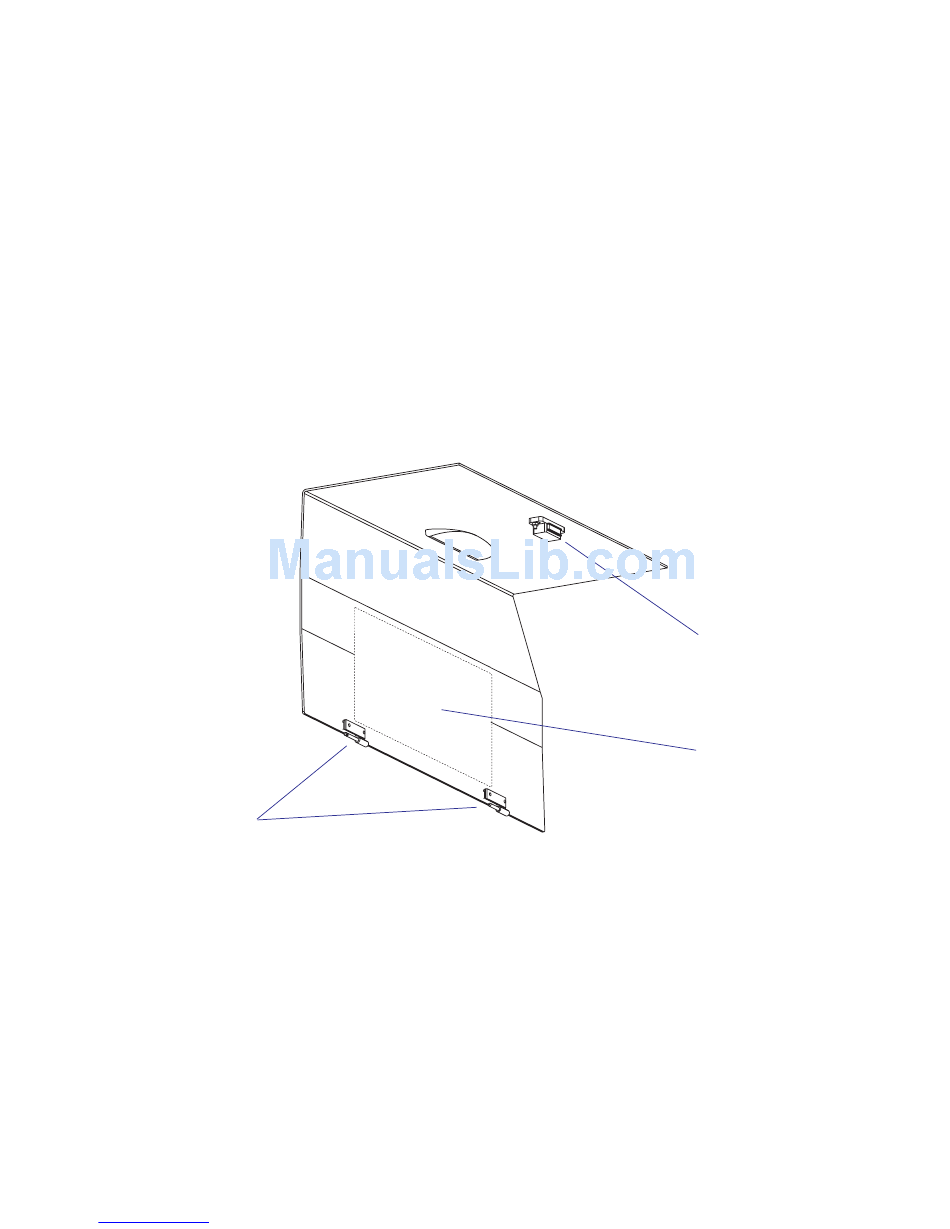

Illustration shows the right-hand door of an EasyCoder PX4i. The door of the EasyCoder PX6i has a wider top part.
Adjustment
26
Downloaded from www.Manualslib.com
The right-hand door gives access to:
• The media supply
• The ribbon supply
• The print mechanism
The right-hand door is fi tted to the bottom plate using two hinges that
allow the door to be swung 180˚ downwards to a vertical attitude. The
door is kept shut using a magnetic lock. The door can easily be removed
from the hinges by pushing it forward until the snap-lock at the rear hinge
becomes disengaged.
At the inside of the door, there is a label showing how to load the media
and transfer ribbon.
Hinges
The hinges can be adjusted using two pairs of #T10 Torx screws visible
on the outside. Possibly, the other parts of the hinges, which are fi tted to
the bottom plate, may require adjustment too. Shut the door, loosen the
screws slightly and align the door with the front moulding. Tighten the
screws and check that the door runs freely and is kept shut by the magnetic
lock.
