#T20 Torx
screws (×2)
EasyCoder PX4i and PX6i Service Manual
Downloaded from www.Manualslib.com

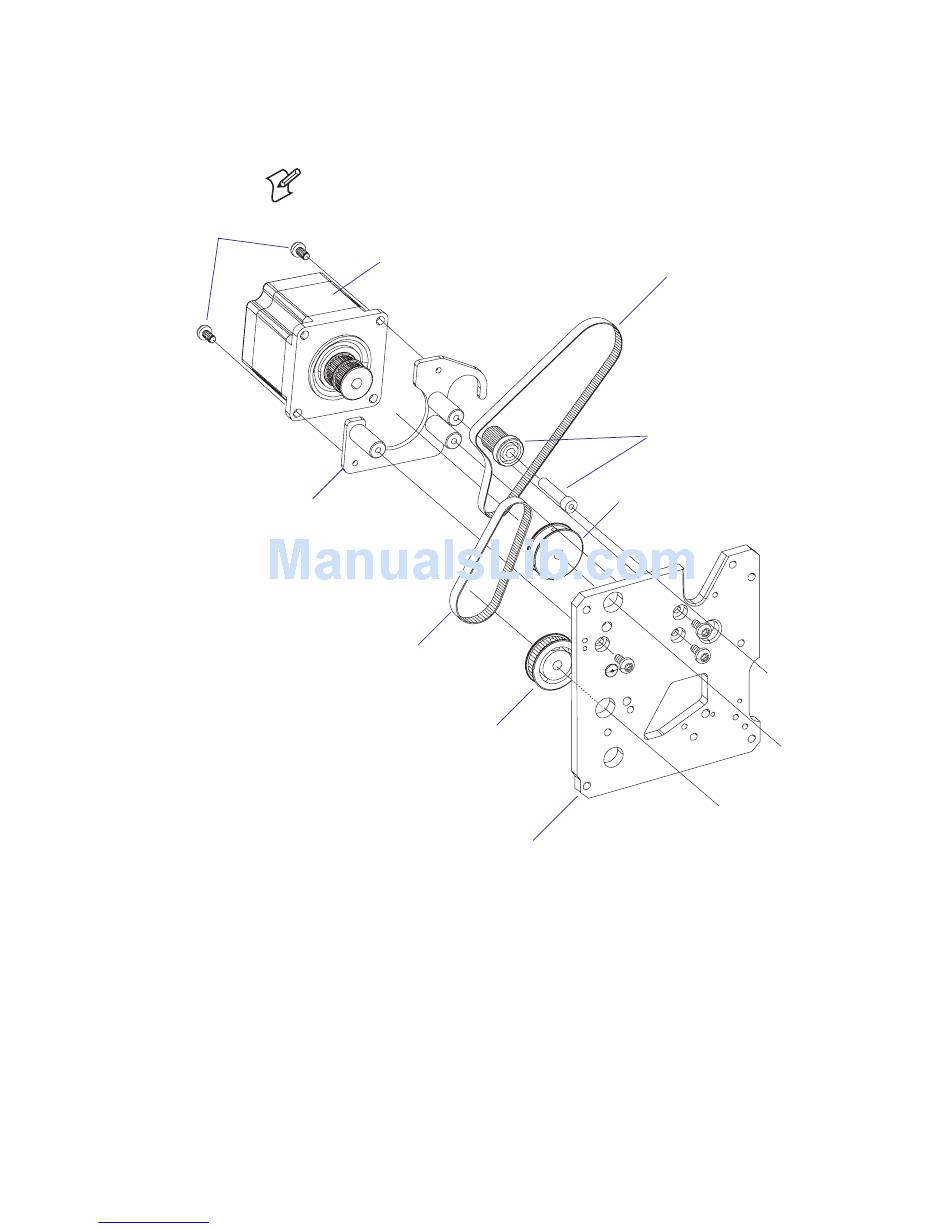

In the illustration below, most parts of the print unit have been omitted to
improve visibility.
Note: The bracket does not need to be removed from the inner print unit
gable when the stepper motor is replaced.
Stepper motor
Bracket
(do not
remove!)
Platen roller belt
Platen roller pulley
manuals search engine
Inner print unit gable
Chapter 8 — Print Unit
Ribbon rewind unit and
ribbon assist roller belt
Idle roller with shaft
(fi tted to center section)
Ribbon assist roller pulley
71
