Intermec EasyCoder PX4i Service Manual page 196

Chapter 16 — Interfaces
Remove RS-232 circuit on
IC11
Remove strap on J2 A
Fit straps on J3 and J4
Fit RS-422 circuit on IC12
9
-TXD
8
-RXD 7
6
186
Downloaded from www.Manualslib.com

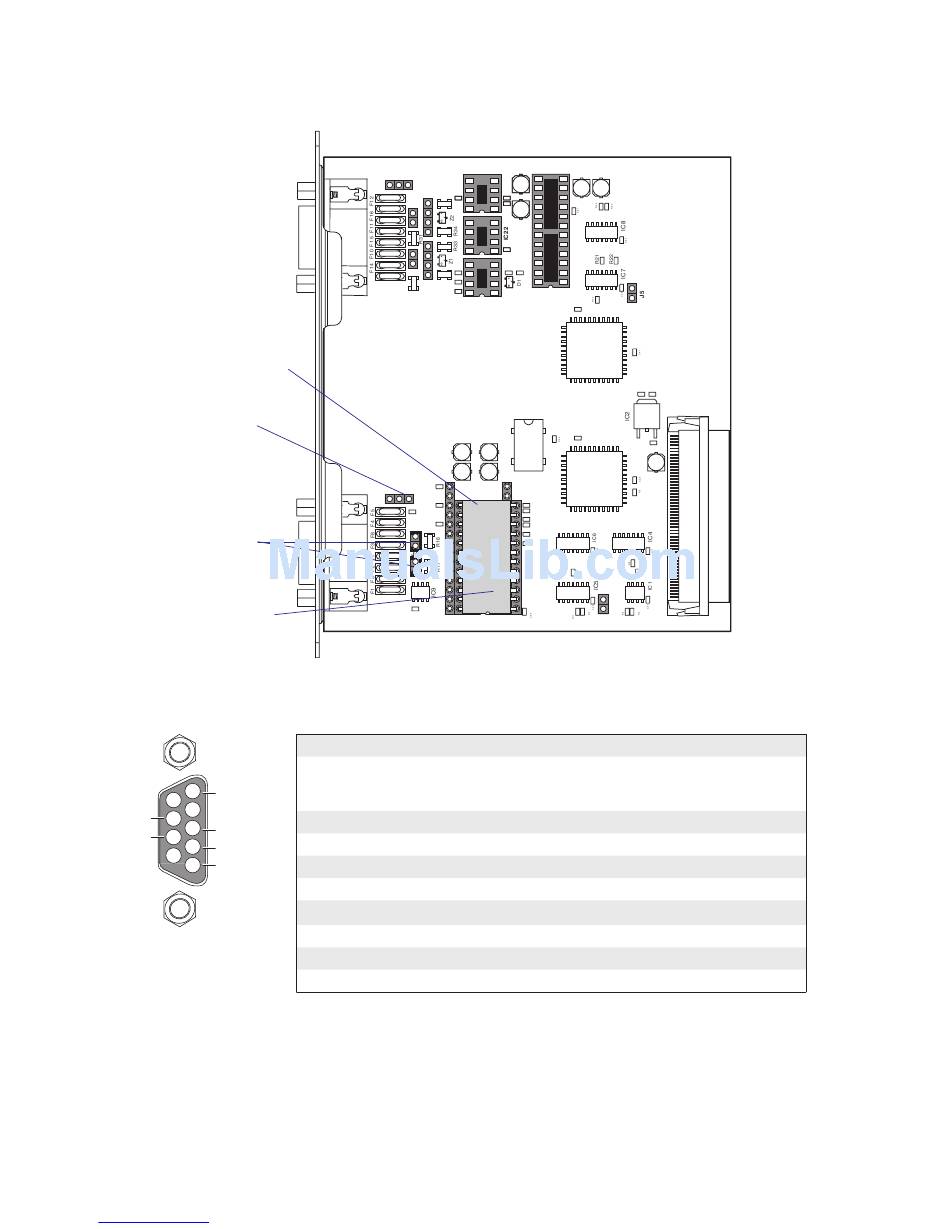

RS-422 Isolated, Full Duplex (reconfiguration required)
UARTB
F13
P3
RS232: IC21, J6A
RS422: IC22, J6B, J7, J8
20MACL: IC23, IC24, J5 J9*, J10*
*: TRANSM.=J9, RECEIV.=J10
PASSIVE=B, ACTIVE=A+C
RS232: IC11, J2A
RS422: IC12, J3, J4
RS485: IC13, J1, J4*
*: IF END OF CABLE
UARTA
P2
Connector Configuration (RS-422 Isolated on "uart2:", "uart3:", or
"uart4:")
DB-9 socket
1
5
GNDE
4
2
3
+RXD
3
2
+TXD
1 +5V (0.5 A)
4
if GND strap
5
fitted
6
7
8
9
manuals search engine
IC23 IC21
C11
B B B A A A
J6
J10 R27
R35 R30
J7
C63
C C C
B B B
C13
A A A
C C C
C62
B B B
R25
R28 R29
J8 A A A
R26
R19
J9
F9
C64
R32
IC24
IC3
C3
C4
C1
C2
R14 IC13
B A
IC11
IC12
J2
R13
R8
R15
R18
R10
R12
C56
J3
R9
C57
C54
Signal Meaning
External +5VDC max 500 mA (automatic switch-off at
overload, short-circuit protected) provided strap is fi tted
on J2:A which spoils the galvanical isolation
+TXD +Transmit data
+RXD +Receive data
–
GNDE Ground
-
-RXD -Receive data
-TXD -Transmit data
–
