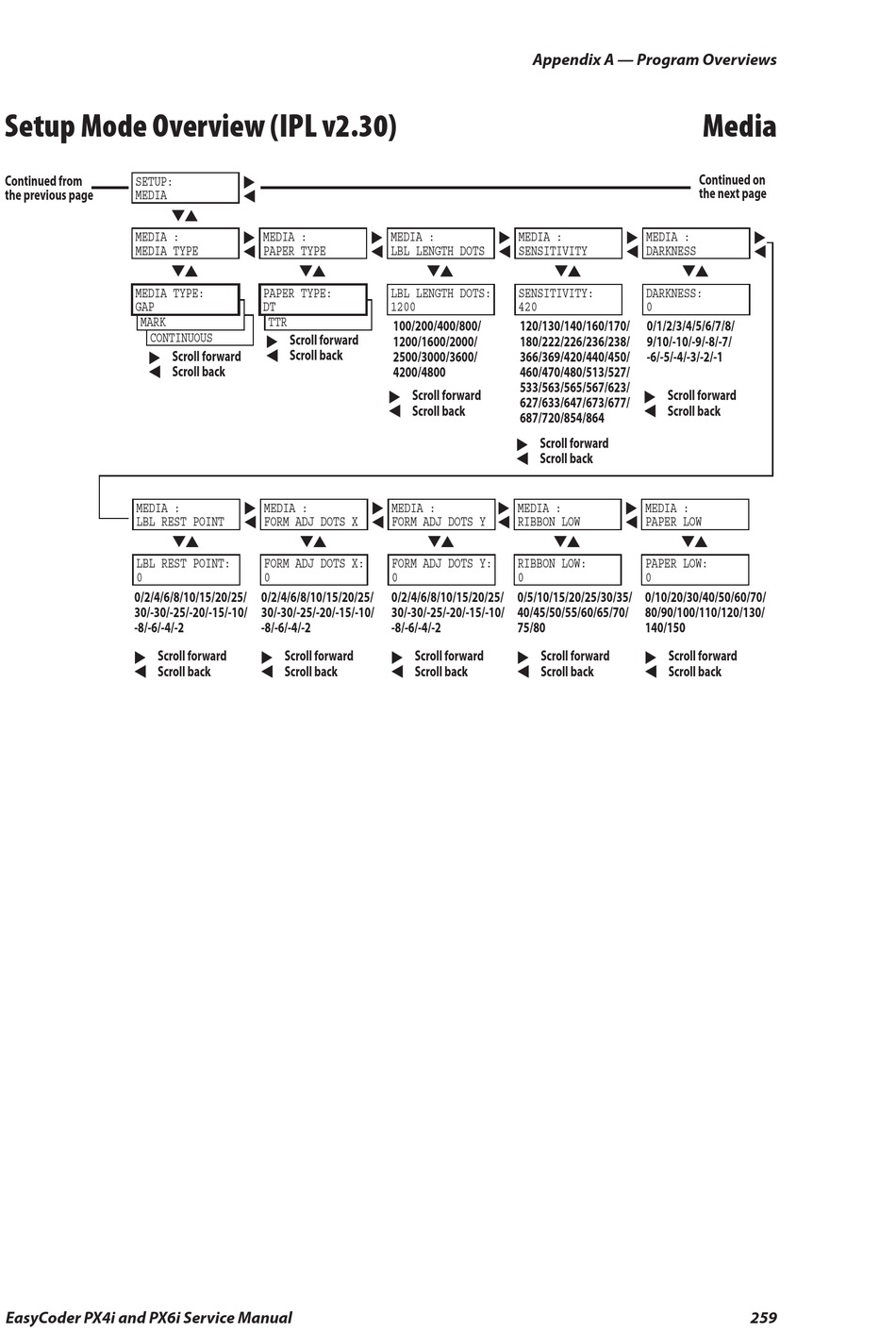

Setup Mode Overview (IPL v2.30)
Continued from
the previous page
EasyCoder PX4i and PX6i Service Manual
Downloaded from www.Manualslib.com
SETUP:
MEDIA
MEDIA : MEDIA :
MEDIA TYPE PAPER TYPE
MEDIA TYPE: PAPER TYPE:
GAP DT
CONFIG: CONFIG:
MARK TTR
CONFIG:
CONTINUOUS
Scroll forward
Scroll back
MEDIA : MEDIA :
LBL REST POINT FORM ADJ DOTS X
LBL REST POINT: FORM ADJ DOTS X:
0 0
0/2/4/6/8/10/15/20/25/ 0/2/4/6/8/10/15/20/25/
30/-30/-25/-20/-15/-10/ 30/-30/-25/-20/-15/-10/
-8/-6/-4/-2 -8/-6/-4/-2
Scroll forward Scroll forward
Scroll back Scroll back
manuals search engine
MEDIA :
LBL LENGTH DOTS
LBL LENGTH DOTS:
1200
100/200/400/800/
Scroll forward
1200/1600/2000/
Scroll back
2500/3000/3600/
4200/4800
Scroll forward
Scroll back
MEDIA :
FORM ADJ DOTS Y
FORM ADJ DOTS Y:
0
0/2/4/6/8/10/15/20/25/
30/-30/-25/-20/-15/-10/
-8/-6/-4/-2
Scroll forward
Scroll back
Appendix A — Program Overviews
Media
Continued on
the next page
MEDIA : MEDIA :
SENSITIVITY DARKNESS
SENSITIVITY: DARKNESS:
420 0
120/130/140/160/170/ 0/1/2/3/4/5/6/7/8/
180/222/226/236/238/ 9/10/-10/-9/-8/-7/
366/369/420/440/450/ -6/-5/-4/-3/-2/-1
460/470/480/513/527/
533/563/565/567/623/
Scroll forward
627/633/647/673/677/
Scroll back
687/720/854/864
Scroll forward
Scroll back
MEDIA : MEDIA :
RIBBON LOW PAPER LOW
RIBBON LOW: PAPER LOW:
0 0
0/5/10/15/20/25/30/35/ 0/10/20/30/40/50/60/70/
40/45/50/55/60/65/70/ 80/90/100/110/120/130/
75/80 140/150
Scroll forward Scroll forward
Scroll back Scroll back
259
