Chapter 15 — CPU Board

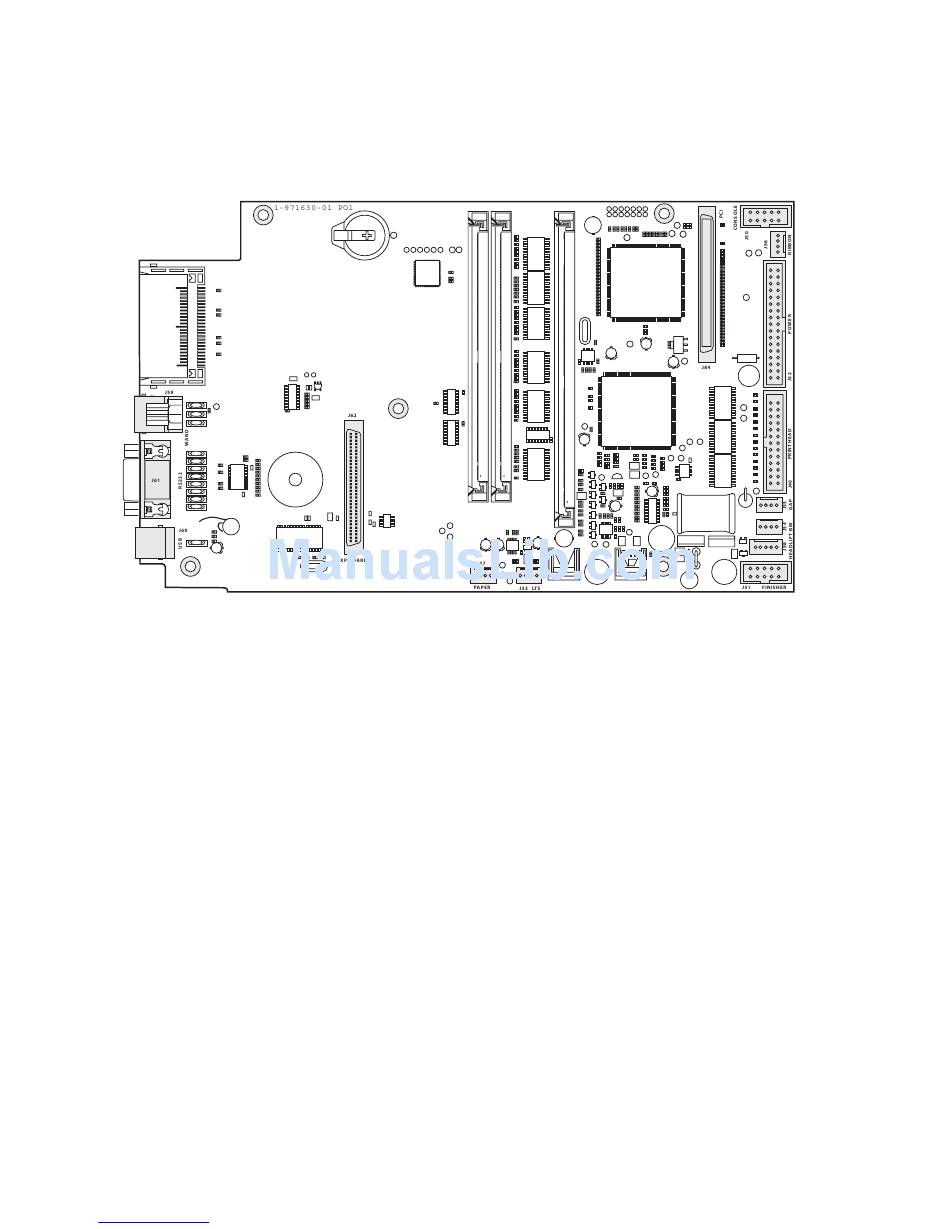

15.3 Connections

Left side (from top down)
J59 Bar Code Wand (not supported by IPL)
J61 RS-232
J60 USB
Bottom (from left to right)
J62 Expansion board connection (optional interface boards)
J57 Paper Sensor
J53 Label Taken Sensor (option)
J51 Finisher (not used)
Top (from left to right)
J84 PCI (EasyLAN interface, option)
J50 Console (keyboard, display, and print or feed/pause button)
Right side (from top down)
J56 Ribbon Low sensor
J52 Power from driver board
J40 Data to printhead
J55 LSS (gap)
J54 LSS (black mark)
J58 Headlift sensor
150
Downloaded from www.Manualslib.com
The following connectors on the CPU board are used in the printer for
communication with various devices and sensors.
