Chapter 16 — Interfaces

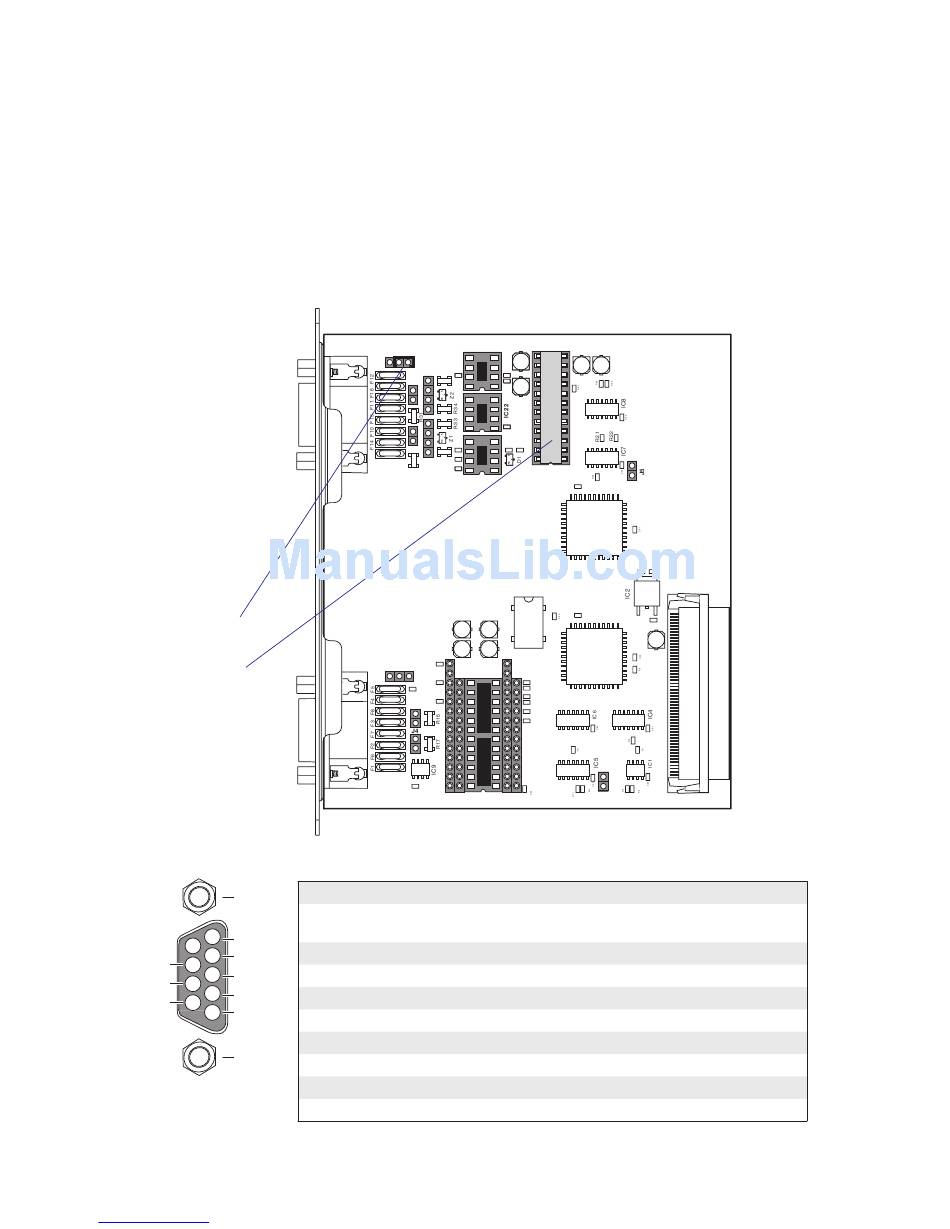

"uart3:" , "uart4:", and "uart5:" Configuration (connector UART B)
Strap fi tted on J6 A
RS-232 driver circuit
fi tted on IC21
RTS out
CTS in
DTR out
188
Downloaded from www.Manualslib.com
The serial communication ports "uart3:", "uart4:", and "uart5:" can be
confi gured for three different types of serial communication by fi tting or
removing certain driver circuits and straps:
• RS-232 non-isolated
• RS-422 non-isolated, full duplex
• 20 mA Current Loop
RS-232 Non-isolated (standard)
UARTB
F13
P3
RS232: IC21, J6A
RS422: IC22, J6B, J7, J8
20MACL: IC23, IC24, J5 J9*, J10*
*: TRANSM.=J9, RECEIV.=J10
PASSIVE=B, ACTIVE=A+C
RS232: IC11, J2A
RS422: IC12, J3, J4
RS485: IC13, J1, J4*
*: IF END OF CABLE
UARTA
P2
Connector Configuration (RS-232 on "uart3:", "uart4:", or "uart5:")
DB-9 socket
MTG
1
5
GND
9
2
4 DSR in
8
3 3
RXD in
7
2 TXD out
4
6
+5V DC
1
5
6
MTG
7
8
9
manuals search engine
IC23 C11 IC21
B B B A A A
J6
R27
J10 R35 R30
J7
C63
C C C
B B B
C13
A A A
C C C
C62
B B B
R25
R28 R29
J8 A A A
R26
J9 R19
F9
C64
R32
IC24
IC3
C3
C4
C1
C2
R14
IC13
B A
IC11 IC12
J2
R13
R8
R15
R18
R10
R12
C56
J3
R9
C57
C54
Signal Meaning
External +5VDC max 500 mA (automatic switch-off at
overload, short-circuit protected)
TXD Transmit data
RXD Receive data
DSR Data set ready
GND Ground
DTR Data terminal ready
CTS Clear to send
RTS Request to send
– Not used
