Removing the Guide Plates
EasyCoder PX4i and PX6i Service Manual
Downloaded from www.Manualslib.com
The LSS guide plates will need to be removed for occasional cleaning,
replacement and when replacing a defective sensor.

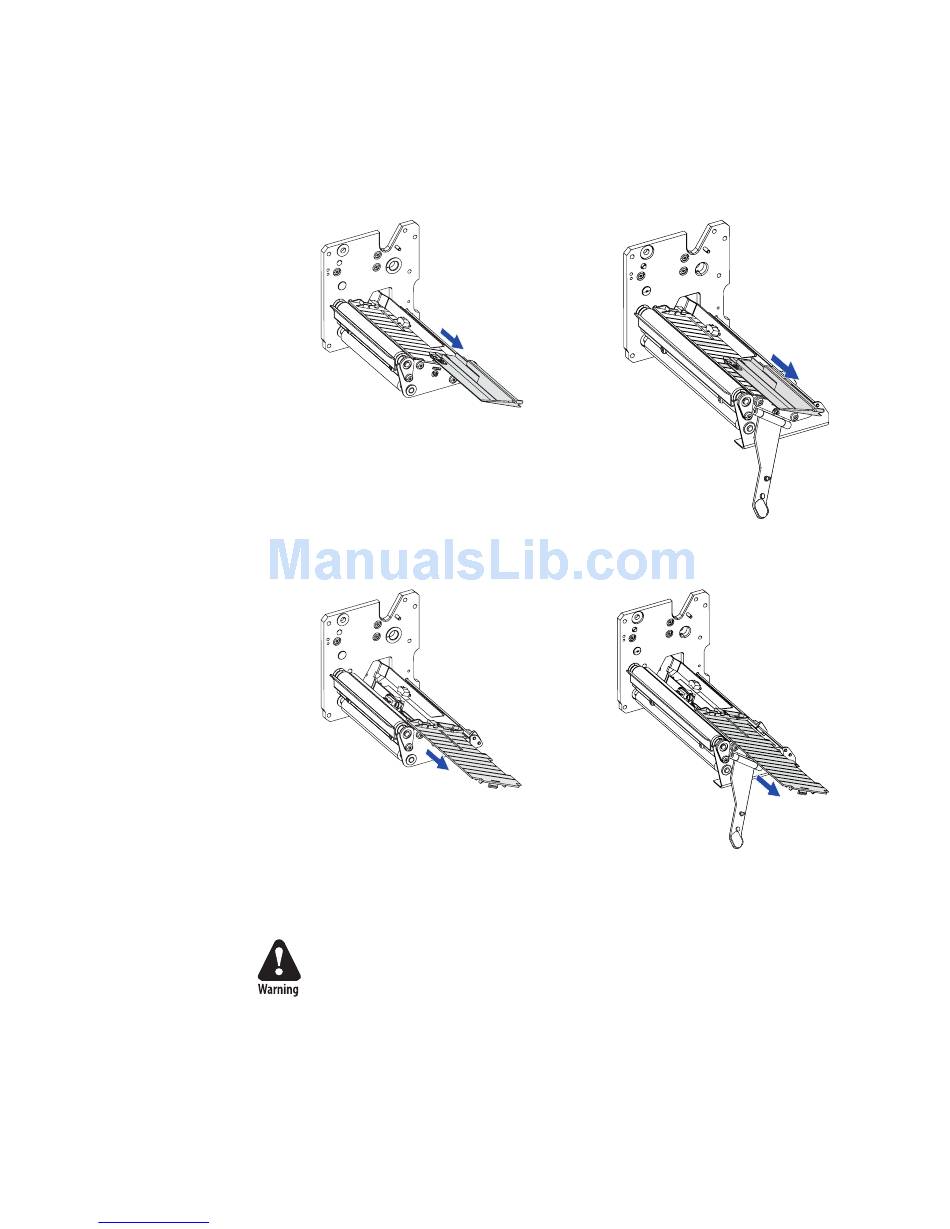

• To remove the upper guide plate, just pull it straight out.
• To remove the lower guide plate, disengage the snap-lock (accessible
through a slot in the lower gable) using for example a screwdriver and
lift the outer end of the guide plate. Then pull it out.
When cleaning the guide plates, use a soft cloth moistened with isopropyl
alcohol. Do not use any other type of chemicals. Blow the sensors free
from dust.
Isopropyl alcohol [(CH
moderately toxic, and mildly irritating substance.
