Chapter 16 — Interfaces
Installation Instructions
204
Downloaded from www.Manualslib.com
• Switch off the printer and disconnect the power cord.
• Disconnect all communication cables.
• Remove the left-hand cover as described in Chapter 3.2.
• Remove any present EasyLAN Ethernet interface including cables etc.
Fit the RJ-45 plug included in the kit into the square hole left by the
RJ-45 Ethernet connector.
• Remove the antenna plug, which is snap-locked into the rear plate.

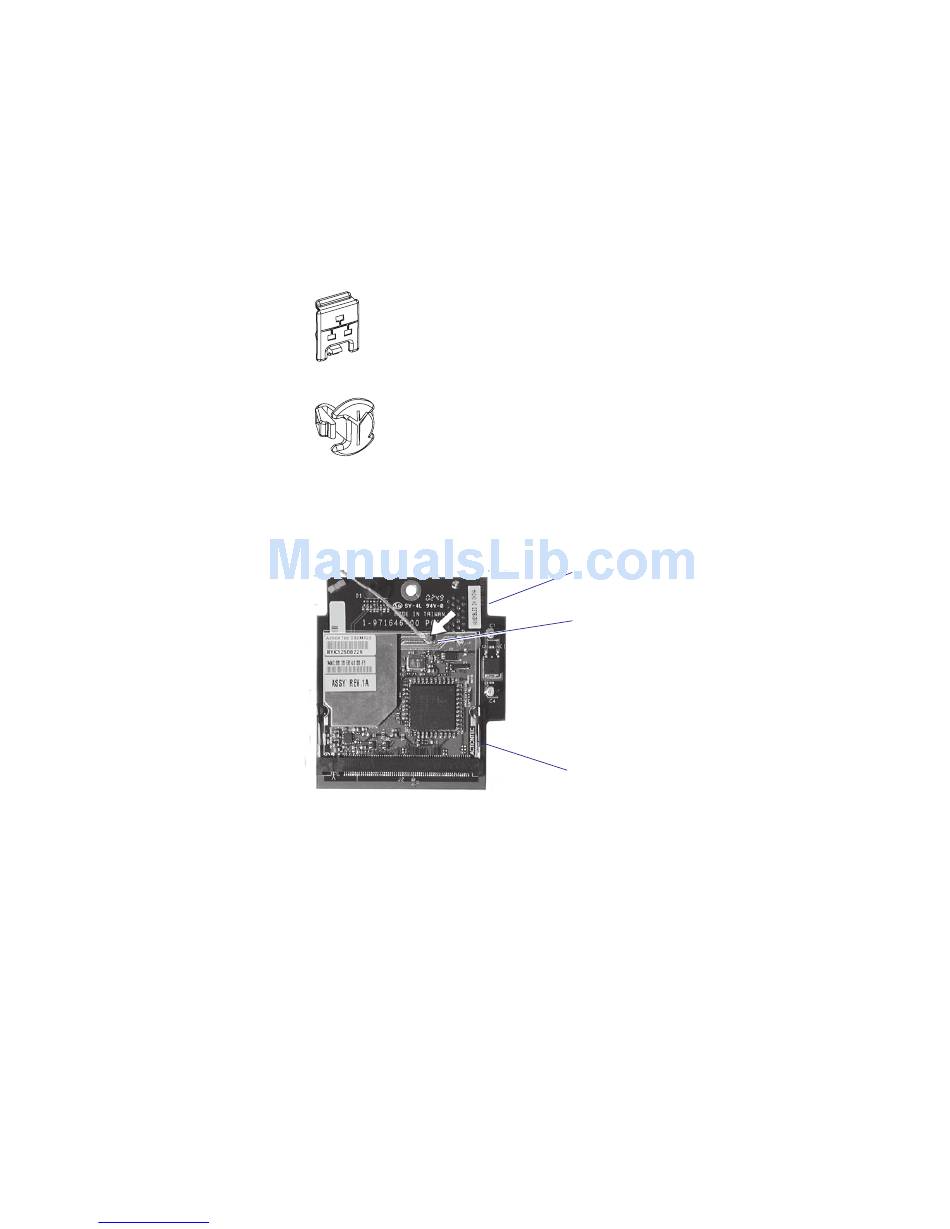

• Connect the antenna cable to the radio module, which is factory-fi tted
on the EasyLAN adapter board, as illustrated below. Support the upper
edge of the radio module with a fi nger while connecting the cable.
• Remove the #T20 Torx screw that holds the upper/front part of the
CPU board to the power supply unit and replace it with the hexagonal
spacer included in the kit. Keep the screw.
• Connect the EasyLAN adapter board to the PCI connector (J84) on the
CPU board so the hole in the board becomes aligned with the spacer
and secure the board with the #T20 Torx screw.
• Route the antenna cable over the SIMMs on the CPU board towards
the rear plate and secure it using the cable clips included in the kit.
One clip is factory-fi tted on the EasyLAN adapter board and the other
should be fi tted in the small hole at the top of the CPU board immedi-
ately to the rear of the memory SIMM sockets.
• From the inside of the electronics compartment, insert the antenna
connector through the round hole in the rear plate and lock it with the
washer and nut on the outside.
manuals search engine
Adapter board
Connect antenna
cable here
Radio module
