Chapter 8 — Print Unit
EasyCoder PX6i

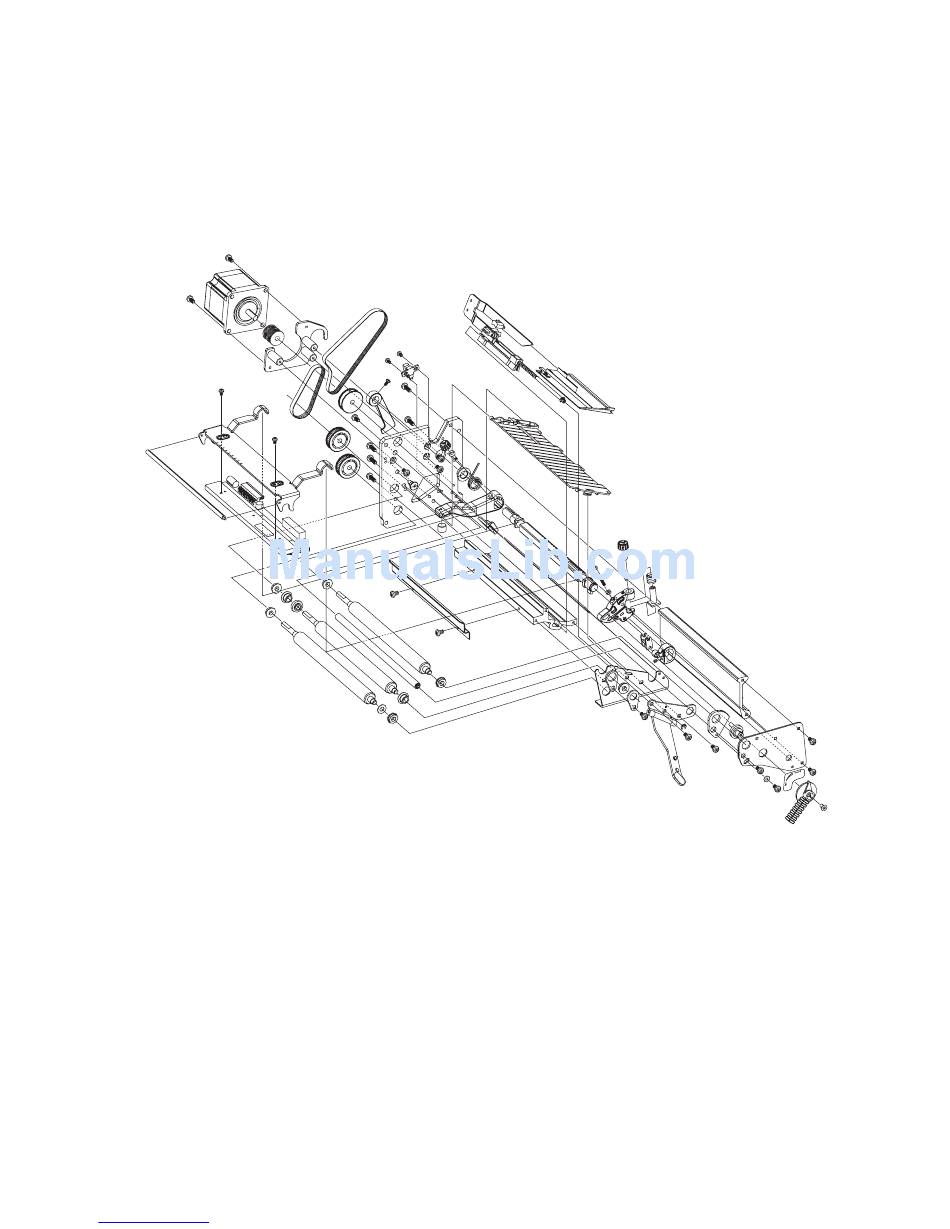

This overview illustrates the various parts in the print unit except cables.
The idle pulley fi tted to the center section and the ribbon rewind unit are
not included. Note that many of the parts illustrated here are not available
as separate spare parts, but must be bought as ready-assembled units.
EasyCoder PX4i and PX6i Service Manual 65
